Seagate Part #/MPN: ST32000645SS
DiscTech Item #: SGT-ST32000645SS-FR-1Y
- Factory RefurbishedCondition Levels Explained
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
Product Warranties ExplainedThe product has a manufacturer warranty for the time period specified.
- Warranty:1 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 2TB
Speed: 7,200RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 155
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 64MB

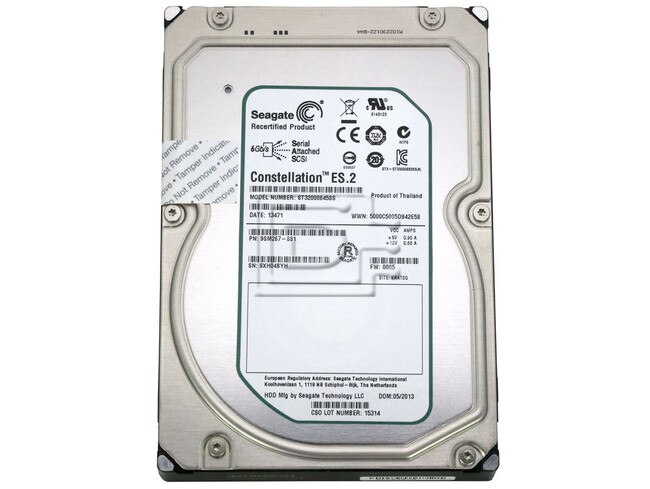

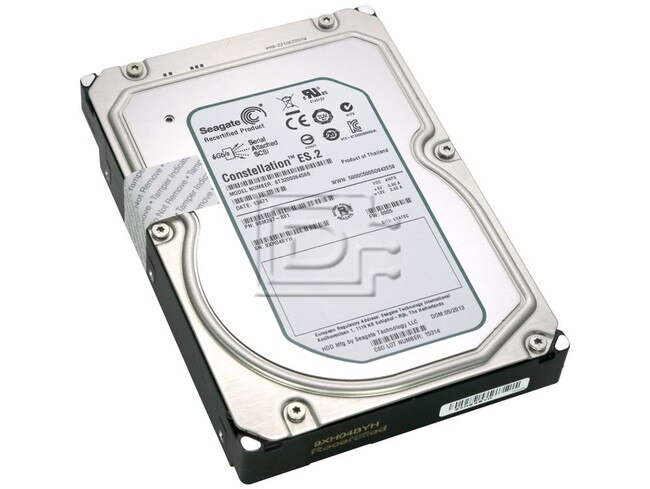

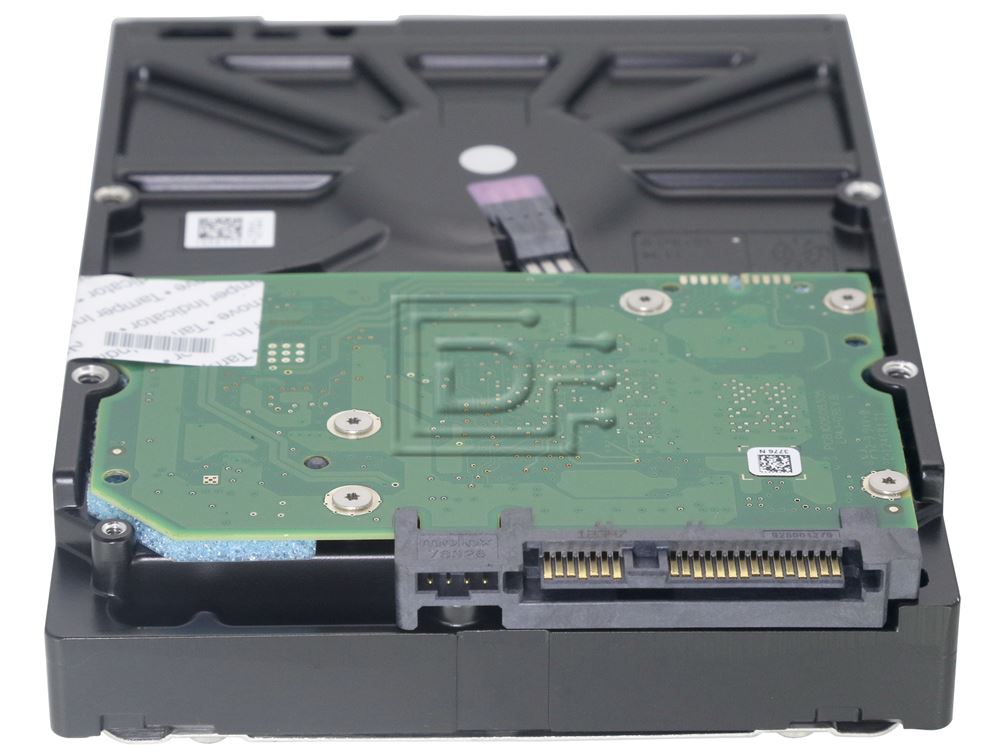

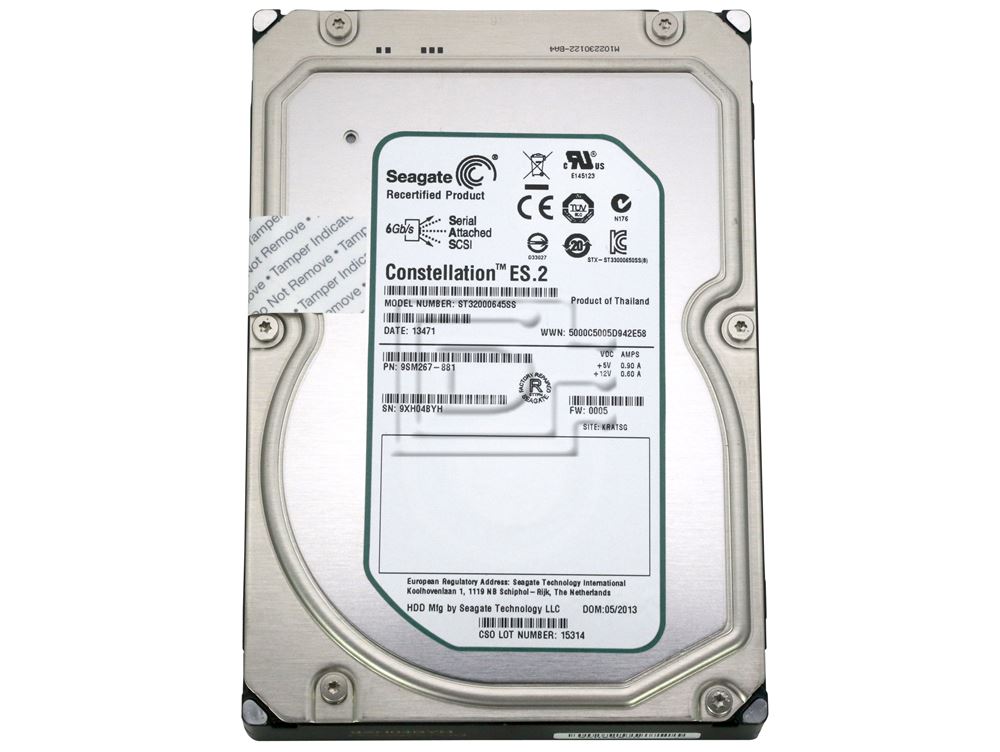

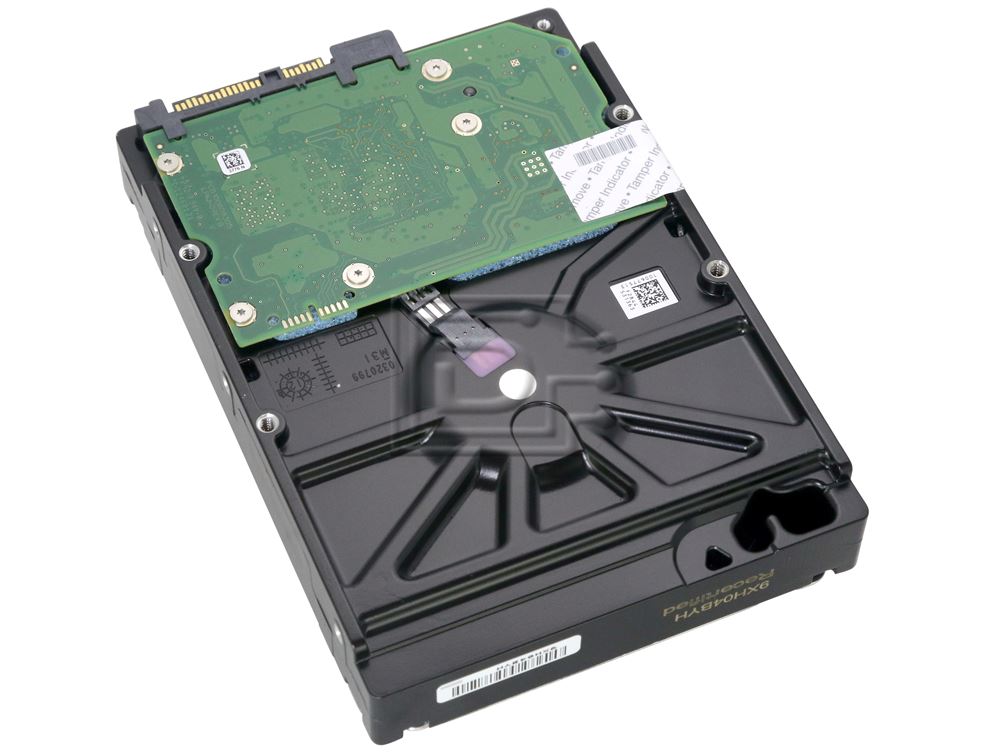

Seagate Constellation ES.2 ST32000645SS 2TB / 2000GB 7.2K 6.0Gbps Serial Attached SCSI / SAS Hard Drive - Factory Refurbished
- Industry’s highest capacity enterprise drive for sustaining demanding data growth
- Meets regulatory data security compliance requirements and is FIPS 140-2 Validated™ to protect Sensitive but Unclassified and Protected class data*
- Fifth-generation, capacity-optimized nearline drive designed for 24x7 enterprise reliability
- SAS-based, end-to-end data integrity and enhanced error correction for accurate data storage
- Best-in-class enhanced rotational vibration tolerance ensures consistent bulk data performance
- Improved power and cooling efficiencies with low power consumption and enhanced PowerChoice™ technology
- Multi-drive firmware maximized for enterprise system availability
- Robust performance with dual processor and ramp load technologies
Compatibility:
This drive is compatible with any of our SAS drive trays and any of our SAS controllers.
| Specifications | |
|---|---|
| Model Number | ST32000645SS |
| Interface | SAS 6Gb/s |
| Cache | 64MB |
| Capacity | 2TB |
| PHYSICAL | |
| Height (maximum) | 26.10mm (1.028 in) |
| Width (maximum) | 101.85mm (4.010 in) |
| Length (maximum) | 147.00mm (5.787 in) |
| Weight (typical) | 700g (1.543 lb) |
| PERFORMANCE | |
| Spin Speed (RPM) | 7200 RPM |
| Sustained data transfer rate | 155MB/s |
| Average latency | 4.16ms |
| Random read seek time | 8.5ms |
| Random write seek time | 9.5ms |
| I/O data transfer rate | 600MB/s |
| Unrecoverable read errors | 1 in 1015 |
| RELIABILITY | |
| MTBF | 1,200,000 hours |
| Annual Failure Rate | 0.73 |
| POWER | |
| Average idle power | 7.40W |
| Average operating power | 11.3W |
| ENVIRONMENT | |
| Ambient Temperature | |
| Operating | 5°–60°C |
| Nonoperating | -40°–70°C |
| Maximum operating temperature change | 20°C per hour |
| Maximum nonoperating temperature change | 20°C per hour |
| Shock | |
| Operating Shock (max) | 70/40 Gs for 2ms |
| Nonoperating Shock (max) | 300 Gs for 2ms |
| ACOUSTICS | |
| Acoustics (Idle Volume) | 2.8 bels |
| Acoustics (Seek Volume) | 3.2 bels |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.8 lb
Warranty: 1 Year Manufacturer
