Seagate Part #/MPN: ST136403FC
DiscTech Item #: SGT-ST136403FC-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:20Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 36GB
Speed: 10,000RPM
Interface Types: Fibre Channel - Internal - Arbitrated Loop ASA II
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 100
Electrical Interface: FC-AL - 2Gbps

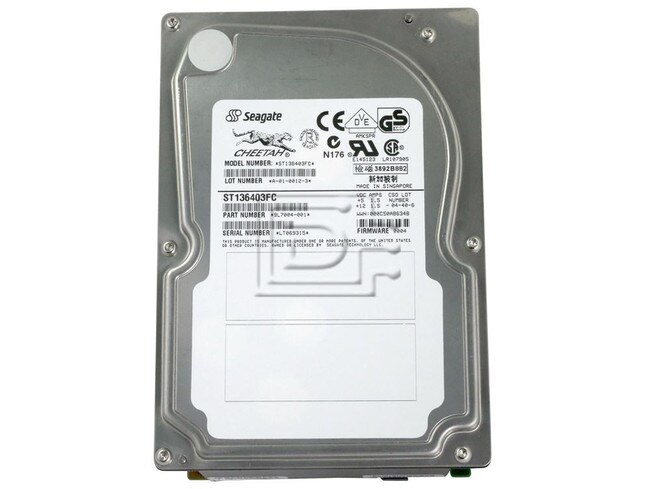

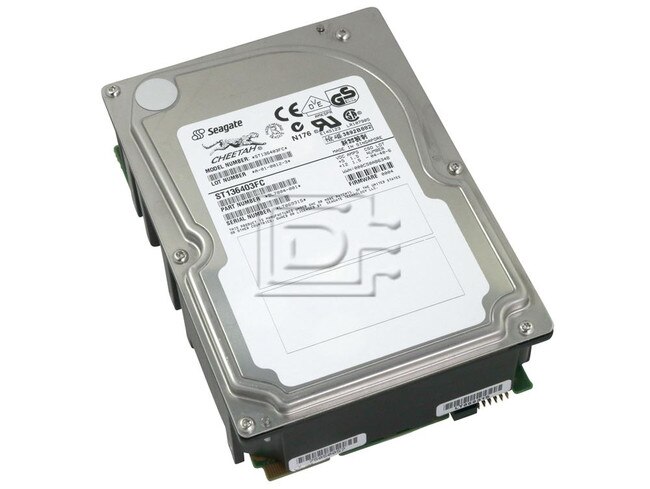

Seagate Cheetah 36FC ST136403FC 36GB 3.5in 10K 2Gbps 40pin FC-AL Fibre / Fiber Channel Hard Drive - Refurbished
Seagate Cheetah 36FC ST136403FC 36GB 3.5" 10,000 2.0 Gb/s 40pin Fibre / Fiber Channel Arbitrated Loop ASA II Hard Drive - Refurbished
Cheetah 36FC disc drives are high-speed, random-access digital-data storage devices designed to be used within a Fibre Channel host system.
Compatibility:
This drive is compatible with any server that accepts 3.5inx1.0in LFF Fibre Channel Drive.
| Seagate Cheetah 36FC | |
|---|---|
| Standard Model Number | ST136403FC |
| GENERAL | |
| Capacity | 36GB |
| Interface | Fibre Channel |
| Connector | 40 pin Centronics (SCA-2) |
| Buffer Size | 1 MB |
| Weight | 1.98 lb |
| Manufacturer | Segate Technology |
| EXPANSION & CONNECTIVITY | |
| Connections | 1 x Storage - Fibre Channel - 40 pin Centronics (SCA) |
| PERFORMANCE | |
| Internal Data Rate | 39 MBps |
| Seek Time | 6.15 ms (average) / 13 ms (max) |
| Drive Transfer Rate | 100 MBps (external) |
| Average Latency | 3 ms |
| Spindle Speed | 10000 RPM |
| Track-to-Track Seek Time | 0.8 ms |
| HARD DRIVE | |
| Form Factor | 3.5" x 1/2H |
| Interface Type | Fibre Channel |
| Spindle Speed | 10000 RPM |
| Hard Drive Type | Internal Hard Drive |
| Form Factor (Short) | 3.5" |
| Form Factor(Short)(metric) | 8.9 cm x 1/2H |
| Form Factor (metric) | 8.9 cm |
| Storage Interface | Fibre Channel |
| Interface | Interface |
| Connector | 40 pin Centronics (SCA-2) |
| Average Seek Time | 6.15 ms |
| Max Seek Time | 13 ms |
| Track-to-Track Seek Time | 0.8 ms |
| Average Latency | 3 ms |
| Data Transfer Rate | 100 MBps |
| Internal Data Rate | 39 MBps |
| Buffer Size | 1 MB |
| Recoverable Errors | 1 per 10^11 |
| Non-Recoverable Errors | 1 per 10^16 |
| Seek Errors | 1 per 10^8 |
| SOFTWARE & SYSTEM REQUIREMENTS | |
| Software Included | Drivers & Utilities |
| ENVIRONMENTAL PARAMETERS | |
| Max Altitude Operating | 9840 ft |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 122 °F |
| HEADER | |
| Brand | Seagate |
| Product Line | Seagate Cheetah |
| Model | 36 |
| Packaged Quantity | 1 |
| Compatibility | PC |
| INTERFACE REQUIRED | |
| Connector Type | 40 pin Centronics (SCA) |
| Gender | Male |
| Connector Qty | 1 |
| Total Qty | 1 |
| BAY REQUIRED | |
| Type | Internal |
| Form Factor | 3.5" x 1/2H |
| Form Factor (metric) | 8.9 cm x 1/2H |
| Total Qty | 1 |
| DIMENSIONS & WEIGHTS | |
| Width | 4 in |
| Depth | 5.8 in |
| Height | 1.6 in |
| Weight | 1.98 lb |
| RELIABILITY | |
| Recoverable Errors | 1 per 10^11 |
| Seek Errors | 1 per 10^8 |
| Non-Recoverable Errors | 1 per 10^16 |
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
