Seagate Part #/MPN: ST3146356SS
DiscTech Item #: SGT-ST3146356SS-BN-OE-DEL
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 146GB
Speed: 15,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 85.6 to 142.7
Average Seek Time: 3.4 / 3.9
Electrical Interface: SAS-1 Serial Attached SCSI - 3.0Gbps
On-Board Cache: 16MB
Compatible Systems: Dell 10th Gen. 2950 / 6950

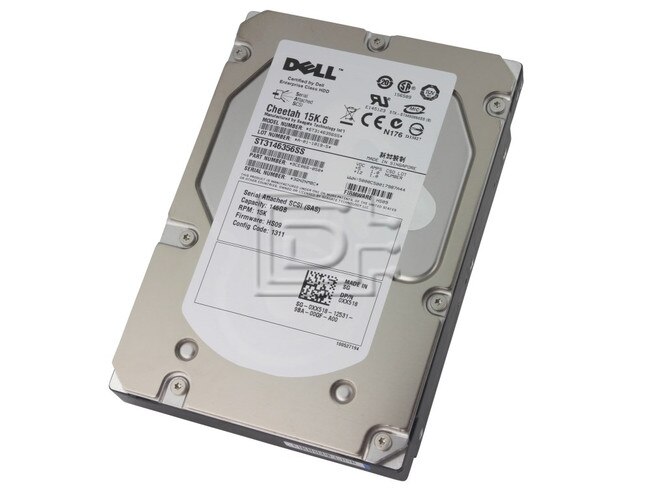

Seagate Cheetah ST3146356SS 15K.6 146GB 15K 3.0Gbps Serial SCSI / SAS Hard Drive - Brand New OEM
The Seagate® Cheetah® 15K.6 hard drive enables manageable tiered storage solutions without compromising performance or reliability. Cheetah 15K.6 drives deliver cost-effective solutions, allowing systems to keep up with increasing performance needs over a longer period of time.
Key Advantages- Second-generation perpendicular recording for maximum capacity
- Unprecedented performance with a 28 percent increase in sustained data rate, up to 164 MB/sec.
- Industry’s highest 3.5-inch drive reliability at 1.6-million-hours MTBF.
- Seagate proprietary PowerTrim™ technology provides a 61 percent improvement in watts/GB at idle.
- Advanced read/write technology delivers unrecoverable error rate of 1x10-16
- Available in FC or SAS interfaces
All mainstream enterprise applications, such as:
- Business processing
- Transaction processing
- Decision support
- Storage area networks
- Networked attached storage
- Internet and e-commerce
DPN: XX518 / 0XX518
Alt. PN: 9CE066
Compatibility: All SAS compatible servers including:
Dell PowerEdge 2900, 2950, 69090, 6950. PowerVault MD1000
Description | |
Model number | ST3146356SS |
Model Name | Cheetah 15K.6 |
Form Factor(width) | 3.5-inch |
Form Factor(height) | 1-inch |
Physical Specifications | |
Height | 25.4 mm |
Width | 101.6 mm |
Length | 146.05 mm |
Weight | 0.68 kg |
Capacity/Interface | |
Formatted Capacity | 146.3 Gbytes |
Performance | |
Transfer Rates | |
Internal Transfer Rate (min) | 1025 Mbits/sec |
Internal Transfer Rate (max) | 2225 Mbits/sec |
External (I/O) Transfer Rate (max) | 300 MBytes/sec |
Seek Times | |
Average Seek Time, Read | 3.4 msec typical |
Average Seek Time, Write | 3.9 msec typical |
Track-to-Track Seek, Read | 0.2 msec typical |
Track-to-Track Seek, Write | 0.4 msec typical |
Average Latency | 2 msec |
Other | |
Default Buffer (cache) Size | 16,384 Kbytes |
Spindle Speed | 15K RPM |
Spinup Time | 20 sec |
Power-on to Ready Time | 3 sec |
Configuration | |
Number of Discs (physical) | 2 |
Number of Heads (physical) | 3 |
Bytes Per Sector | 512 |
Electrical Requirements | |
Power | |
Idle Power (typ) | 14.4 watts |
Environmental Specifications | |
Shock and Vibration | |
Max Operating Shock (2-msec) | 60 Gs |
Max Nonoperating Shock (2-msec) | 250 Gs |
Operating Vibration (max) | 0.5 Gs |
Nonoperating Vibration (max) | 2 Gs |
Temperature and Humidity | |
Operating Temperature (max) | 55 deg C |
Operating Temperature (min) | 5 deg C |
Nonoperating Temperature (max) | 70 deg C |
Nonoperating Temperature (min) | -40 deg C |
Operating Temperature Change (max) | 20 deg C/hr |
Nonoperating Temperature Change (max) | 20 deg C/hr |
Operating Humidity (max) | 95 percent |
Nonoperating Humidity (max) | 95 percent |
Operating Humidity Change (max) | 20 percent per hour |
Operating Wet Bulb Temp (max) | 28 deg C |
Altitude | |
Operating Altitude (max) | 3,048 m |
Operating Altitude (min) | -305 m |
Nonoperating Altitude (max) | 12,210 m |
Nonoperating Altitude (min) | -305 m |
Acoustics | |
Acoustics, Idle (sound power, typ) | 3.6 Bels |
Reliability | |
MTBF (Hours) | 1,600,000 hours |
Nonrecoverable Read Errors | 1 per 1016 bits read |
Supports S.M.A.R.T. | Yes |
Service Life | 5 year(s) |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: XX518 0XX518 9CE066
