Seagate Part #/MPN: ST3146807LW
DiscTech Item #: SGT-ST3146807LW-RF-OE-DEL
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 146GB
Speed: 10,000RPM
Interface Types: SCSI 68pin HD68
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 59.9
Average Seek Time: 4.7 / 5.3
Electrical Interface: SCSI LVD U320 - 320MBps 16-bit
On-Board Cache: 8MB

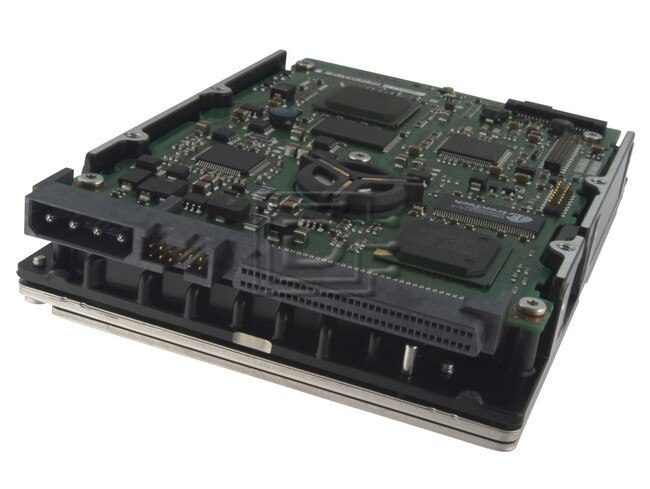

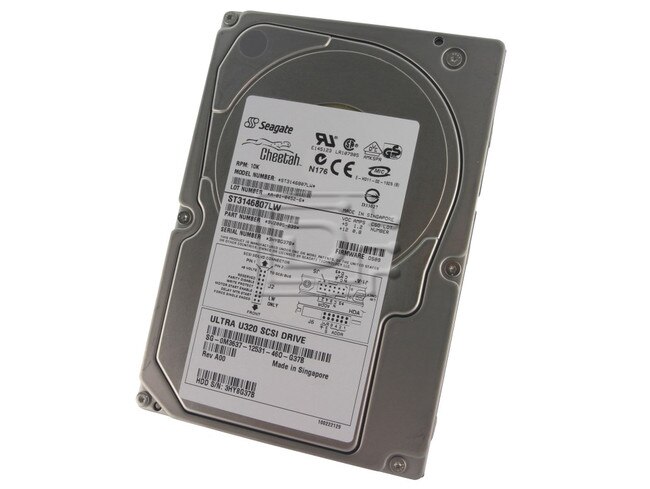

Seagate ST3146807LW 146GB 3.5in 10K RPM U320 68pin Enterprise Cheetah 10K.6 SCSI HDD - Refurbished OEM
Seagate ST3146807LW 146GB 3.5" 10K RPM U320 68pin Enterprise Cheetah 10K.6 SCSI HDD - Refurbished OEM
Alt Model Number: 9V2005-039, M3637, 0M3637
The Cheetah 10K.6 SCSI family has the following standard features:
- Integrated Ultra320 SCSI controller
- Multimode SCSI drivers and receivers—single-ended (SE) and low voltage differential (LVD)
- 16 bit I/O data bus
- Asynchronous and synchronous data transfer protocol
- Firmware downloadable via SCSI interface
- Selectable even byte sector sizes from 512 to 528 bytes/sector
- Programmable sector reallocation scheme
- Flawed sector reallocation at format time
- Programmable auto write and read reallocation
- Reallocation of defects on command (post format)
- ECC maximum burst correction length of 288 bits
- Sealed head and disc assembly
- No preventative maintenance or adjustment required
- Dedicated head landing zone
- Embedded servo design
- Self diagnostics performed when power is applied to the drive
- Zoned bit recording (ZBR)
- Vertical, horizontal, or top down mounting
- Dynamic spindle brake
- 8,192 kbytes data buffer
- Hot plug compatibility (Section 9.6.4.2 lists proper host connector needed) for LC model drives
- Drive Self Test (DST)
- Supports SCSI bus fairness
Compatibility:
This drive is compatible with any server that accepts 3.5in x 1.0in (LFF) SCSI drives.
| SPECIFICATIONS | |
|---|---|
| Model Number | ST3146807LW |
| Alt Model Number | 9V2005-039 M3637 |
| Number of active heads | 8 |
| I/O circuit type | Single-ended (SE) and low voltage differential (LVD) |
| Number of I/O connector pins | 68 |
| Capacity | 146 GB |
| Enterprise | Yes |
| MTBF | 1,200,000 hours |
| S.M.A.R.T. | Yes |
| Read/Write heads | 8 |
| Bytes/track | 368 |
| Bytes/surface | 18,350 |
| Tracks/surface (total) | 49,855 |
| Tracks/inch | 64,000 |
| Peak bits/inch | 570 |
| Internal data rate | 475-841 |
| Disc rotational speed | 10,008 |
| Average rotational latency | 2.99 |
| Including Controller overhead (without disconnect) Average - Typical Single Track - Typical Full Stroke - Typical | 4.90 - 5.50 msec 0.55 - 0.75 msec 9.20 - 9.70 msec |
| Not including controller overhead (without disconnect) Average - Typical Single _ Typical Full Stroke - Typical | 4.70 - 5.30 msec 0.35 - 0.55 msec 9.00 - 9.50 msec |
| Maximum (with verify) | 180 |
| Maximum (no verify) | 90 |
| Minimum sector interleave | 1 to 1 |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 9V2005-039 M3637 0M3637
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
