Seagate Part #/MPN: ST3146855LC
DiscTech Item #: SGT-ST3146855LC-FR-1Y
- Factory RefurbishedCondition Levels Explained
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
Product Warranties ExplainedThe product has a manufacturer warranty for the time period specified.
- Warranty:1 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 146GB
Speed: 15,000RPM
Interface Types: SCSI 80pin SCA-2 Hot-Swap
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 85 - 142
Average Seek Time: 3.5 / 4.0
Electrical Interface: SCSI LVD U320 - 320MBps 16-bit
On-Board Cache: 16MB
Compatible Systems: Dell 9th Gen. 2850 / 1850, Dell 8th Gen. 2650 / 1650

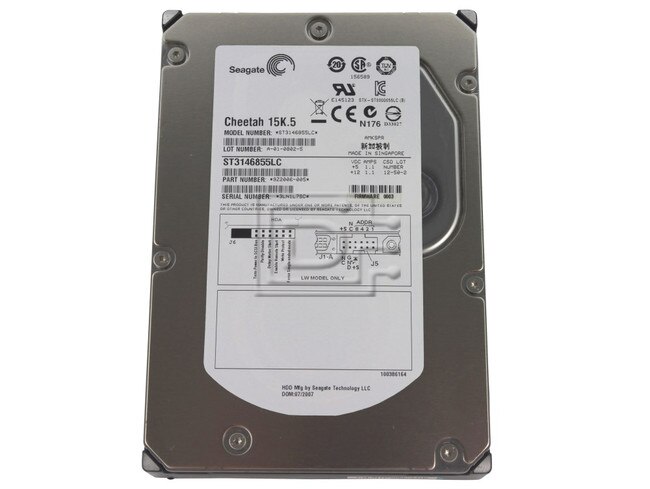

The Cheetah® 15K.5 hard drive enables manageable tiered storage solutions without compromising performance or reliability. Cheetah 15K.5 drives deliver cost-effective solutions, allowing systems to keep up with increasing performance needs over a longer period of time.
Compatibility:
The SCA-2 80-pin version of these low-profile 1" of these SCSI hard drives are compatible with all of the following systems (this list is not all inclusive):
Dell® PowerEdge servers 800, 1500, 1550, 1600, 1600SC, 1650, 1750, 1800, 1850, 2300,2350, 2400, 2450, 2500, 2500SC, 2550, 2600, 2650, 2800, 2850, 3250, 4300, 4350, 4400, 4600, 6300, 6350, 6400, 6450, 6600, 6650, 6800, 6850, 7150 & 8450 Series Servers and Dell Powervault® 200S, 201S, 210S, 211S, 220S, 221S, 220F, 221F, 224F, 650F, 660F, 750N & 755N Arrays & PowerApp 120.
HP / Compaq Proliant® server CL-1850, DL-320, DL-380, DL-580, DL-590/64, DL-760, ML-350, ML-330, ML-350, ML-370, ML-380, ML-530, ML-570, ML-750, PL-8000, PL-8500, 1600, 1850, 3000, 5500, 8000, 8500 Model Servers. Additionally 4100, 4300, 4314R, 4314T, 4354R SCSI RAID Arrays
IBM xServer eSeries & Netfinity Servers x220, x230, x225, x232, x235, x240, x250, x300, x320, x330, x335, x340, x345, x360, 3500, 4500R, 5100, 5600, 6000R, 7100, 7600 & 8500. Also compatible with x206, x225, x226, x235, x236, x335, x336, x345, x346, x365, x385, x400, x455.
Model Number | ST3146855LC |
Formatted Gbytes (512 bytes/sector) | 146.8 |
Interface | Ultra320 SCSI |
Bytes per sector | 512 |
Spindle speed (RPM) | 15,000 |
Cache buffer | 16 Mbytes |
Height (max) | 26.11 mm (1.028 inches) |
Width (max) | 101.85 mm (4.010 inches) |
Length (max) | 146.99 mm (5.787 inches) |
Weight (max) grams | 839 |
Average seek, read (msec typical) | 3.5 |
Average seek, write (msec typical) | 4.0 |
Voltage tolerance (including noise) | 5V ± 5% 12V ± 10% |
Ambient temperature | 0° to 60°C (op.) –40° to 70°C (nonop.) |
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 1 Year Manufacturer
Factory Refurbished
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
The product has a manufacturer warranty for the time period specified.
1 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
