Seagate ST318404LC SCSI Hard Drive

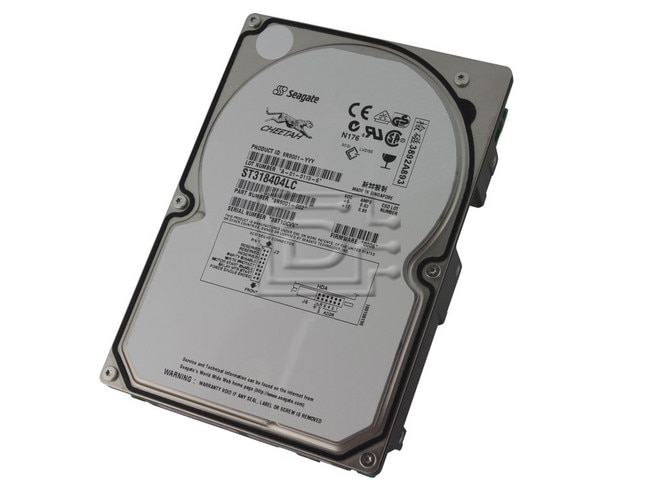

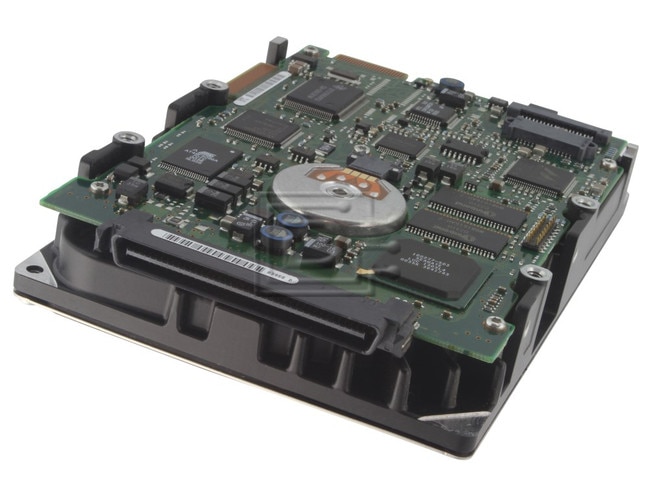

Seagate Cheetah 18XL 18GB 10K U160 80pin SCA-2 SCSI Hard Drive ST318404LC - New Pull

Alt MPN: 9N9001-002

Compatibility:

The SCA-2 80-pin version of these low-profile 1" of these SCSI hard drives are compatible with all of the following systems (this list is not all inclusive):

Dell® PowerEdge servers 800, 1500, 1550, 1600, 1600SC, 1650, 1750, 1800, 1850, 2300,2350, 2400, 2450, 2500, 2500SC, 2550, 2600, 2650, 2800, 2850, 3250, 4300, 4350, 4400, 4600, 6300, 6350, 6400, 6450, 6600, 6650, 6800, 6850, 7150 & 8450 Series Servers and Dell Powervault® 200S, 201S, 210S, 211S, 220S, 221S, 220F, 221F, 224F, 650F, 660F, 750N & 755N Arrays & PowerApp 120.

HP / Compaq Proliant® server CL-1850, DL-320, DL-380, DL-580, DL-590/64, DL-760, ML-350, ML-330, ML-350, ML-370, ML-380, ML-530, ML-570, ML-750, PL-8000, PL-8500, 1600, 1850, 3000, 5500, 8000, 8500 Model Servers. Additionally 4100, 4300, 4314R, 4314T, 4354R SCSI RAID Arrays

IBM xServer eSeries & Netfinity Servers x220, x230, x225, x232, x235, x240, x250, x300, x320, x330, x335, x340, x345, x360, 3500, 4500R, 5100, 5600, 6000R, 7100, 7600 & 8500. Also compatible with x206, x225, x226, x235, x236, x335, x336, x345, x346, x365, x385, x400, x455.

 SEAGATE TECHNOLOGY, INC. 1-800-SEAGATE http://www.seagate.com (C)opyright 1999 ST-318404LW Ultra160 SCSI Wide (Cheetah 18XL, LVD) ÉÍÍÍÍÍÍÍÍÍÍÍ» º REAR VIEW º (ST-318404LW only) ÈÍÍÍÍÍÍÍÍÍÍͼ (TOP) J5 Auxiliary ___________________ ÚÄÄ Ä1¿/ÍÍÍÍÍÍÍÍÍ\ Í( ×××××××××××××××××1)ͳ::::::³³ 0 0 0 0 ÆÍ \ÄÄÄÄÄÄÄÄÄÄÄijÄÄÄÄ/ À ÄÄ 2ÙÀÄ5ÄGÄGÄ12Ù 68 pin I/O CableÙ ³³³³³³ Connection Male ³³³³³³ SCSI ID = 0 (none) ³³³³³ÀÄÄ SCSI ID = 1 pin-11 +5v ÄÄÙ³³³ÀÄÄÄ SCSI ID = 2 pin-10 GND ÄÄÄÙ³ÀÄÄÄÄ SCSI ID = 4 ÃÄÄÄÄÄ SCSI ID = 8 pins 9 & 12 no connection ÀÄÄÄÄÄÄ or pin-8 Activity LED* * These pins are driven low for 250ms after PWR ON and RESET to allow jumper selectable SCSI ID as shown above. ÉÍÍÍÍÍÍÍÍÍÍÍ» º REAR VIEW º (ST-318404LC only) ÈÍÍÍÍÍÍÍÍÍÍͼ 80 pin I/O and DC Power Wall/bracket Connection ³ Female J1 /ÄÄÄijÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ\ TOP (HDA) ÍÍÍÍÍÍÍÍÍÍ/ ×××××××××××××××××××× \ÍÍÍÍÍÍÍÍÍÍ (\Ä1ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ40/) BOTTOM Notes on 80 pin I/O connector: pins 1 - 4 = +12v 41 - 44 = 12v GND 34 - 36 = +5v 74 - 76 = 5v GND 37 = SYNC 77 = LEDC 38 = MTRON 78 = DLYDST 39 = SCSIA0 79 = SCSIA1 40 = SCSIA2 80 = SCSIA3 Mating connector: AMP US p/n: 2-557103-1 straight-in, Male 80-pin 2-557101-1 right angle to PCB ÉÍÍÍÍÍÍÍÍÍÍÍ» º SIDE VIEW º (ST-318404LW/LC) ÈÍÍÍÍÍÍÍÍÍÍͼ FRONT TOP (HDA) J2 87654321 Õ͸ OF ÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍPÍWÍAÍÍÍÍÍ͵J1 DRIVE BOTTOM :::::::: Ô; ³³³³³³³³ Force Single-ended (LVD models only) ÄÙ³³³³³³À Term Power (LW only)¿ Start Delay (12 secs * ID) ÄÄÙ³³³³ÀÄ Reserved ³ Motor Start ÄÄÄÙ³³ÀÄÄ Reserved ³ Write Protect ÄÄÄÄÙÀÄÄÄ Parity Disable ³ ³ ³ ÚÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ¿ ³ ³ Termination Power-source Table ÃÄÄÄÄÄÄÄÄÄÄÄÄÄÄÙ ÃÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÁÄÄÄÄÄ¿ ³ ....ÍÍÍÍÍPWA edgeÍÍÍÍÍ ³ ³ 2 1 ³ ³ A Drive Supplies Bus ÖÄ· ³ ³ øºøº ³ ³ (not used on LC model) øÓø½ ³ ³ A ³ ÀÄÄÄÄÄÄÄÄÄDefault no jumper ÄÄÄÄÄÄÄÄÄÄÄÙ Note: LW and LC drives do not have internal terminators or any other way of adding internal terminators to the drive; use external active termination if required. Use active (ANSI SCSI-2 Alternative 2) terminators when terminating the bus. Use active negation terminators when terminating a SCSI Ultra2 bus operating in Low Voltage Differential (LVD) mode. ÉÍÍÍÍÍÍÍÍÍÍÍÍ» º FRONT VIEW º (ST-318404LW/LC) ÈÍÍÍÍÍÍÍÍÍÍÍͼ ÚÄÄ´Reserved. Shipped with cover installed. ³ ÀDo not remove. Do not install jumpers TOP (HDA) ÕØÍÍ͸ 1 ÍÍPÍWÍAÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍ͵::::³::::::ÆÍÍ * BOTTOM ÔÍÍÍ;123456 ³ J6 ³³³³³³ LED ÄÙ ³³³³³³ Remote LED Ù³³³³À ID 1 (pin-11 +5v) ³³³ÀÄ ID 2 Reserved ÄÙ³ÀÄÄ ID 4 (pin-10 GND) ÀÄÄÄ ID 8 ST-318404LW UNFORMATTED CAPACITY (GB) ________________ FORMATTED CAPACITY (GB) __________________18.351 AVERAGE SECTORS PER TRACK ________________415 rounded down ACTUATOR TYPE ____________________________ROTARY VOICE COIL TRACKS ___________________________________86,304 CYLINDERS ________________________________14,384 user HEADS ______PHYSICAL______________________6 DISCS (3.5 in) ___________________________3 MEDIA TYPE _______________________________THIN FILM/GMR RECORDING METHOD _________________________PRML 16/17 EPR4 INTERNAL TRANSFER RATE (mbits/sec)________285 to 424 INTERNAL FORMATTED TRANSFER RATE (MB/sec)_26 to 40 EXTERNAL TRANSFER RATE (mbyte/sec) _______40 Sync Low Voltage Differential(LVD) _______80/160 Sync SPINDLE SPEED (RPM) ______________________10,033 AVERAGE LATENCY (mSEC) ___________________2.99 BUFFER (/optional) _______________________4MB/16MB Read Look-Ahead, Adaptive, Multi-Segmented Cache INTERFACE ________________________________Ultra SCSI Wide Low Voltage Differential __________Ultra3-SCSI Wide ASA II, SCAM level 2 (1 default) BYTES PER TRACK __________________________203,008 avg SECTORS PER DRIVE ________________________35,843,669 TPI (TRACKS PER INCH) ____________________18,145 BPI (PEAK KBITS PER INCH) ________________339 AVERAGE ACCESS (ms read/write)____________5.2/5.8 Drive level without controller overhead SINGLE TRACK SEEK (ms read/write) ________0.6/0.9 MAX FULL SEEK (ms read/write) ____________10.0/11.0 MTBF (power-on hours) ____________________1,200,000 SHOCK (G's, 11/2/.5 ms): operating (Read/Write) __________15 abnormal ________________________15 nonoperating ____________________150/250/ ACOUSTICS (Bels typical) ________Idle ____3.8 Max ____ POWER DISSIPATION (watts/BTUs) Active ____/ Idle ______8.5/29.0 POWER REQUIREMENTS: +12V START-UP (amps) _1.7 +12V TYPICAL (amps) __0.40 idle +5V START-UP (amps) __0.7 +5V TYPICAL (amps) ___0.70 idle IDLE (watts) _________9 IBM AT DRIVE TYPE ________________________0 or NONE Physical: Height (inches/mm): 1.02/26.13 Width (inches/mm): 4.01/101.98 Depth (inches/mm): 5.77/146.68 Weight (lbs/kg): 1.5/0.680 Already low-level formatted at the factory with x spare sectors at the end of each x cylinder region. ZBR = Zone Bit Recording = Variable sectors per track Seagate reserves the right to change, without notice, product offerings or specifications. (06/08/2000)

ROHS Compliant

Alternate MPNs: 9N9001-002

Weight: 1.8 lb

Warranty: 1 Year DiscTech

New Pull

1 Year DiscTech Warranty
