Seagate Part #/MPN: ST3300007LC
DiscTech Item #: SGT-ST3300007LC-FR-1Y
- Factory RefurbishedCondition Levels Explained
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
Product Warranties ExplainedThe product has a manufacturer warranty for the time period specified.
- Warranty:1 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 300GB
Speed: 10,000RPM
Interface Types: SCSI 80pin SCA-2 Hot-Swap
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 59.5
Average Seek Time: 4.7 / 5.3
Electrical Interface: SCSI LVD U320 - 320MBps 16-bit
On-Board Cache: 8MB

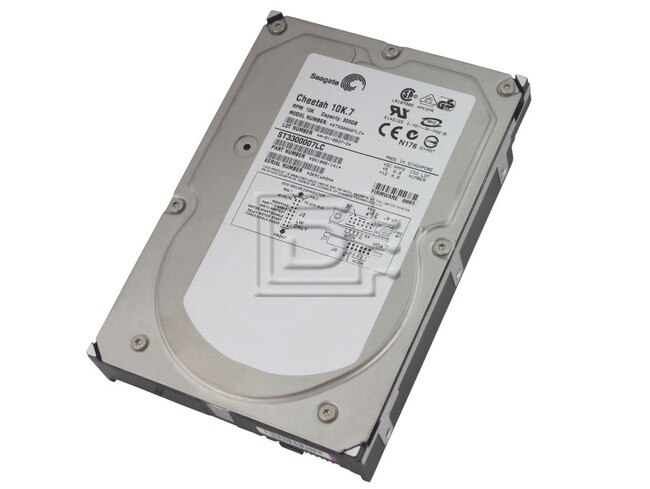

Seagate ST3300007LC Cheetah 10K.7 300GB 10K U320 80pin SCA-2 SCSI Hard Drive - Factory Recertified
| The Cheetah 10K.7 lowers cost of ownership with the industry'shighest reliability, designed for full duty cycle applications; Seagate-exclusive Background Media Scan; enhanced Error Correction Code; and low power and cooling requirements. Capacities include 300, 146 and 73 Gbytes, with Ultra320 SCSI or 2 Gbit/sec Fibre Channel interfaces. | |
| Features | Benefits |
| Highest Reliablity Rating | Reliability has a significant influence on a disc drive's total cost of ownership. Cheetah 10K.7 has an 0.62 percent AFR, the best in the industry. |
| Full Duty Cycle Reliability | The Cheetah 10K.7 is designed to have the highest reliability, even when in used in demanding applications around the clock, 365 days per year. |
| Background Media Scan | Background Media Scan, a Seagate-exclusive feature, scans the media during drive idle time to preserve system bandwidth while enabling incipient errors to be corrected before data is lost. |
| Enhanced Error Correction Code | Decreased bit error rate better maintains performance throughout the life of the drive and results in a lower probability of lost data. |
| Fluid Dynamic Bearing Motor | No ball bearings means reduced acoustics and improved reliability. |
| Low Power and Cooling Requirements | Further reduces cost of ownership |
Distinctions | |
| |
An alternative to this drive is the FUJ-MAW3300NC-FR-OE OR THE FUJ-MAW3300NC-BN-5Y. These Fujitsu drives have the exact same capacity (down to the last byte) as the ST3300007LC and can serve as a RAID replacement.
| Description | ||
 | ||
| Model number | ST3300007LC | |
| Model Name | Cheetah 10K.7 | |
| Form Factor(width) | 3.5-inch | |
| Form Factor(height) | 1-inch | |
| ||
| Physical Specifications | ||
| ||
| Height | 25.4 mm | |
| Width | 101.6 mm | |
| Length | 146.05 mm | |
| Weight | 0.726 kg | |
| ||
| Capacity/Interface | ||
| ||
| Formatted Capacity | 300 Gbytes | |
| Guaranteed Sectors | 585,937,500 | |
| Bytes Per Sector | 512 | |
| Total Bytes Per Drive | 300,000,000,000 | |
| Interface Type | 80-pin | |
| ||
| Performance | ||
| ||
| Transfer Rates | ||
| ||
| Internal Transfer Rate (min) | 472 Mbits/sec | |
| Internal Transfer Rate (max) | 944 Mbits/sec | |
| Formatted Int Transfer Rate (min) | 59 MBytes/sec | |
| Formatted Int Transfer Rate (max) | 118 MBytes/sec | |
| External (I/O) Transfer Rate (max) | 320 MBytes/sec | |
| Avg Formatted Transfer Rate | 59.5 MBytes/sec | |
| Seek Times | ||
| ||
| Average Seek Time, Read | 4.7 msec typical | |
| Average Seek Time, Write | 5.3 msec typical | |
| Track-to-Track Seek, Read | 0.2 msec typical | |
| Track-to-Track Seek, Write | 0.5 msec typical | |
| Full Disc Seek, Read | 9.5 msec typical | |
| Full Disc Seek, Write | 10.3 msec typical | |
| Average Latency | 3 msec | |
| Other | ||
| ||
| Default Buffer (cache) Size | 8,192 Kbytes | |
| Spindle Speed | 10000 RPM | |
| Spinup Time | 25 sec | |
| Power-on to Ready Time | 25 sec | |
| ||
| Configuration | ||
| ||
| Number of Discs (physical) | 4 | |
| Number of Heads (physical) | 8 | |
| Total Cylinders | 90,774 | |
| Total Tracks | 726,192 | |
| Bytes Per Sector | 512 | |
| Track Density (TPI) | 105,000 tracks/inch | |
| Recording Density (BPI, max) | 658,000 bits/inch | |
| Bytes/Track (avg) | 556 | |
| Recording Components | ||
| ||
| ||
| Electrical Requirements | ||
| ||
| Current | ||
| ||
| Typical Current (12VDC +/- 5%) | 1.09 amps | |
| Startup Current (12VDC +/- 5%) | 1.1 amps | |
| Typical Current (5VDC +/- 5%) | 0.68 amps | |
| Startup Current (5VDC +/- 5%) | 0.69 amps | |
| Power | ||
| ||
| Idle Power (typ) | 10.14 watts | |
| ||
| Environmental Specifications | ||
| ||
| Shock and Vibration | ||
| ||
| Max Operating Shock (2-msec) | 60 Gs | |
| Max Nonoperating Shock (2-msec) | 225 Gs | |
| Operating Vibration (max) | 1 Gs | |
| Nonoperating Vibration (max) | 3 Gs | |
| Temperature and Humidity | ||
| ||
| Operating Temperature (max) | 55 deg C | |
| Operating Temperature (min) | 5 deg C | |
| Nonoperating Temperature (max) | 70 deg C | |
| Nonoperating Temperature (min) | -40 deg C | |
| Operating Temperature Change (max) | 20 deg C/hr | |
| Nonoperating Temperature Change (max) | 20 deg C/hr | |
| Operating Humidity (max) | 95 percent | |
| Nonoperating Humidity (max) | 95 percent | |
| Operating Humidity Change (max) | 20 percent per hour | |
| Operating Wet Bulb Temp (max) | 28 deg C | |
| Altitude | ||
| ||
| Operating Altitude (max) | 3,048 m | |
| Operating Altitude (min) | -305 m | |
| Nonoperating Altitude (max) | 12,210 m | |
| Nonoperating Altitude (min) | -305 m | |
| Acoustics | ||
| ||
| Acoustics, Idle (sound power, typ) | 3.3 Bels | |
| ||
| Reliability | ||
| ||
| MTBF (Hours) | 1,400,000 hours | |
| Recoverable Read Errors | 10 per 1012 bits read | |
| Nonrecoverable Read Errors | 1 per 1015 bits read | |
| Supports S.M.A.R.T. | Yes | |
| Service Life | 5 year(s) | |
Click here to view the manufacturer's item description/brochure
