Seagate Part #/MPN: ST3300007LW
DiscTech Item #: SGT-ST3300007LW-FR-1Y
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: SCSI 68pin HD68 Female
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 59 - 118
Average Seek Time: 4.7 / 5.3
Electrical Interface: SCSI LVD U320 - 320MBps 16-bit
On-Board Cache: 8MB

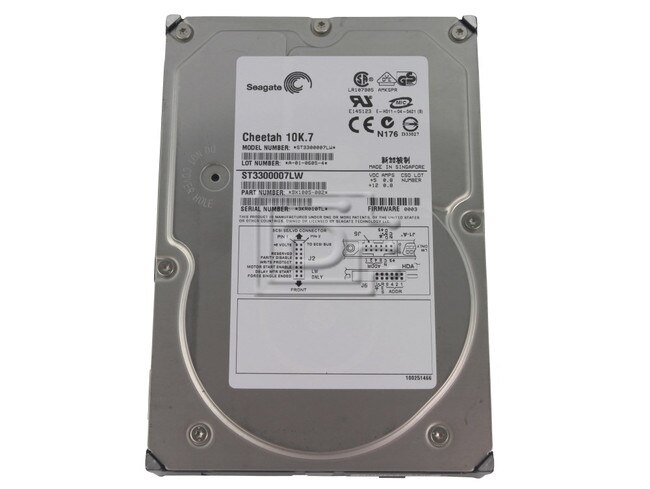

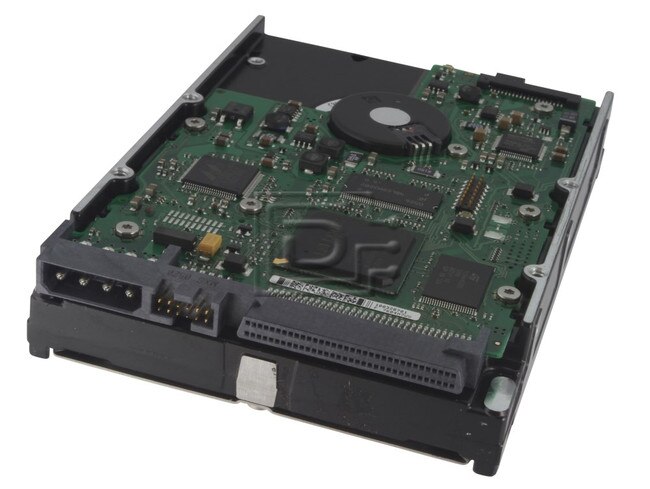

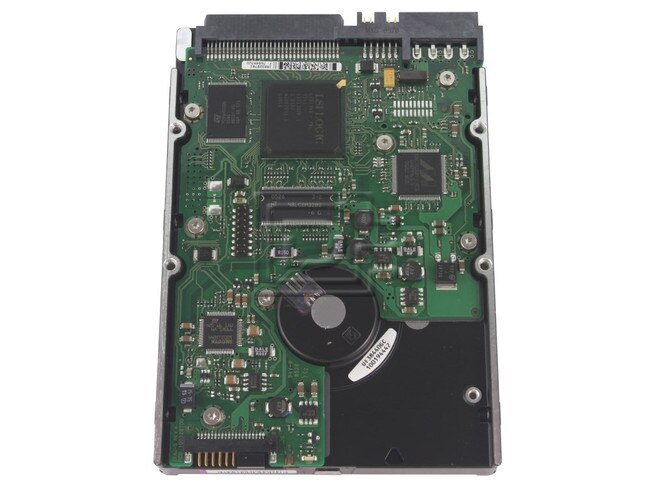

Seagate ST3300007LW Cheetah 10K.7 300GB 10K U320 68pin SCSI Hard Drive - Factory Recertified
|The Cheetah 10K.7 lowers cost of ownership with the industry's highest reliability, designed for full duty cycle applications; Seagate-exclusive Background Media Scan; enhanced Error Correction Code; and low power and cooling requirements. Capacities include 300, 146 and 73 Gbytes, with Ultra320 SCSI or 2 Gbit/sec Fibre Channel interfaces.|
|Full Duty Cycle Reliability ||The Cheetah 10K.7 is designed to have the highest reliability, even when in used in demanding applications around the clock, 365 days per year.|
|Background Media Scan||Background Media Scan, a Seagate-exclusive feature, scans the media during drive idle time to preserve system bandwidth while enabling incipient errors to be corrected before data is lost.|
|Enhanced Error Correction Code||Decreased bit error rate better maintains performance throughout the life of the drive and results in a lower probability of lost data.|
|Low Power and Cooling Requirements||Further reduces cost of ownership|
|Highest Reliablity Rating||Reliability has a significant influence on a disc drive's total cost of ownership. Cheetah 10K.7 has an 0.62 percent AFR, the best in the industry.|
|Fluid Dynamic Bearing Motor||No ball bearings means reduced acoustics and improved reliability.|
SEAGATE TECHNOLOGY LLC 1-800-SEAGATE http://www.seagate.com (C)opyright 2005 ST-3300007LW Ultra320 SCSI Wide (Cheetah 10K.7, LVD) ÉÍÍÍÍÍÍÍÍÍÍÍ» º REAR VIEW º (ST-3300007LW only) ÈÍÍÍÍÍÍÍÍÍÍÍ¼ (TOP) J5 Auxiliary ___________________ ÚÄÄ Ä1¿/ÍÍÍÍÍÍÍÍÍ\ Í( ×××××××××××××××××1)Í³::::::³³ 0 0 0 0 ÆÍ \ÄÄÄÄÄÄÄÄÄÄÄÄ³ÄÄÄÄ/ À ÄÄ 2ÙÀÄ5ÄGÄGÄ12Ù 68 pin I/O CableÙ ³³³³³³ Connection Male ³³³³³³ SCSI ID = 0 (none) ³³³³³ÀÄÄ SCSI ID = 1 pin-11 +5v ÄÄÙ³³³ÀÄÄÄ SCSI ID = 2 pin-10 GND ÄÄÄÙ³ÀÄÄÄÄ SCSI ID = 4 ÃÄÄÄÄÄ SCSI ID = 8 pins 9 & 12 no connection ÀÄÄÄÄÄÄ or pin-8 Activity LED* * These pins are driven low for 250ms after PWR ON and RESET to allow jumper selectable SCSI ID as shown above. ÉÍÍÍÍÍÍÍÍÍÍÍ» º REAR VIEW º (ST-3300007LC only) ÈÍÍÍÍÍÍÍÍÍÍÍ¼ 80 pin I/O and DC Power Wall/bracket Connection ³ Female J1 /ÄÄÄÄ³ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ\ TOP (HDA) ÍÍÍÍÍÍÍÍÍÍ/ ×××××××××××××××××××× \ÍÍÍÍÍÍÍÍÍÍ (\Ä1ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ40/) BOTTOM Notes on 80 pin I/O connector: pins 1 - 4 = +12v 41 - 44 = 12v GND 34 - 36 = +5v 74 - 76 = 5v GND 37 = SYNC 77 = LEDC 38 = MTRON 78 = DLYDST 39 = SCSIA0 79 = SCSIA1 40 = SCSIA2 80 = SCSIA3 Mating connector: AMP US p/n: 2-557103-1 straight-in, Male 80-pin 2-557101-1 right angle to PCB ÉÍÍÍÍÍÍÍÍÍÍÍ» º SIDE VIEW º (ST-3300007LW only) ÈÍÍÍÍÍÍÍÍÍÍÍ¼ FRONT TOP (HDA) J2 87654321 ÕÍ¸ OF ÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍPÍWÍAÍÍÍÍÍÍµJ1 DRIVE BOTTOM :::::::: ÔÍ¾ ³³³³³³³³ Force Single-ended (LVD models only) ÄÙ³³³³³³À Term Power (LW only)¿ Start Delay (12 secs * ID) ÄÄÙ³³³³ÀÄ Reserved ³ Motor Start ÄÄÄÙ³³ÀÄÄ Reserved ³ Write Protect ÄÄÄÄÙÀÄÄÄ Parity Disable ³ ³ ³ ÚÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ¿ ³ ³ Termination Power-source Table ÃÄÄÄÄÄÄÄÄÄÄÄÄÄÄÙ ÃÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÁÄÄÄÄÄ¿ ³ ....ÍÍÍÍÍPWA edgeÍÍÍÍÍ ³ ³ 2 1 ³ ³ A Drive Supplies Bus ÖÄ· ³ ³ øºøº ³ ³ (not used on LC model) øÓø½ ³ ³ A ³ ÀÄÄÄÄÄÄÄÄÄDefault no jumper ÄÄÄÄÄÄÄÄÄÄÄÙ Note: LW and LC drives do not have internal terminators or any other way of adding internal terminators to the drive; use external active termination if required. Use active (ANSI SCSI-2 Alternative 2) terminators when terminating the bus. Use active negation terminators when terminating a SCSI Ultra2 bus operating in Low Voltage Differential (LVD) mode. ÉÍÍÍÍÍÍÍÍÍÍÍÍ» º FRONT VIEW º (ST-3300007LW/LC) ÈÍÍÍÍÍÍÍÍÍÍÍÍ¼ ÚÄÄ´Reserved. Shipped with cover installed. ³ ÀDo not remove. Do not install jumpers TOP (HDA) ÕØÍÍÍ¸ 1 ÍÍPÍWÍAÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍµ::::³::::::ÆÍÍ * BOTTOM ÔÍÍÍÍ¾123456 ³ J6 ³³³³³³ LED ÄÙ ³³³³³³ Remote LED Ù³³³³À ID 1 (pin-11 +5v) ³³³ÀÄ ID 2 Reserved ÄÙ³ÀÄÄ ID 4 (pin-10 GND) ÀÄÄÄ ID 8 ST-3300007LW Cheetah 10K.7 UNFORMATTED CAPACITY (GB) ________________ FORMATTED CAPACITY (GB) __________________300 AVERAGE SECTORS PER TRACK ________________806 rounded down ACTUATOR TYPE ____________________________ROTARY VOICE COIL TRACKS ___________________________________726,192 CYLINDERS ________________________________90,774 user HEADS ______PHYSICAL______________________8 DISCS (2.5 in) ___________________________4 MEDIA TYPE _______________________________THIN FILM/GMR RECORDING METHOD _________________________PRML INTERNAL TRANSFER RATE (mbits/sec)________470 to 944 INTERNAL FORMATTED TRANSFER RATE (MB/sec)_59 to 118 EXTERNAL TRANSFER RATE (mbyte/sec) _______40 Sync Low Voltage Differential(LVD) _______80/320 Sync SPINDLE SPEED (RPM) ______________________10,008 AVERAGE LATENCY (mSEC) ___________________3.00 BUFFER ___________________________________8MB Read Look-Ahead, Adaptive, Multi-Segmented Cache INTERFACE ________________________________Ultra-SCSI Wide Low Voltage Differential __________Ultra3-SCSI Wide ASA II, SCAM level 2 (1 default) BYTES PER TRACK __________________________556K avg SECTORS PER DRIVE ________________________585,937,500 TPI (TRACKS PER INCH) ____________________105,000 BPI (PEAK KBITS PER INCH) ________________658 AVERAGE ACCESS (ms read/write)____________4.7/5.3 Drive level without controller overhead SINGLE TRACK SEEK (ms read/write) ________0.2/0.5 MAX FULL SEEK (ms read/write) ____________9.5/10.3 ANNUALIZED FAILURE RATE (AFR) ____________0.62% SHOCK (G's, 11/2/.5 ms): operating (Read/Write) __________15/60/ abnormal ________________________40// nonoperating ____________________75/225/120 ACOUSTICS (Bels typical, sound power) ____3.3 POWER DISSIPATION (watts/BTUs) Active ____/ Idle ______10.14/34.60 POWER REQUIREMENTS: +12V START-UP (amps) _1.91 +12V TYPICAL (amps) __0.62 idle +5V START-UP (amps) __0.77 +5V TYPICAL (amps) ___0.54 idle IDLE (watts) _________ Physical: Height (inches/mm): 1.0/25.4 Width (inches/mm): 4.00/101.6 Depth (inches/mm): 5.75/146 Weight (lbs/kg): 1.6/0.726 ZBR = Zone Bit Recording = Variable sectors per track Seagate reserves the right to change, without notice, product offerings or specifications. (04/14/2005)
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 1 Year Manufacturer
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
The product has a manufacturer warranty for the time period specified.
1 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
