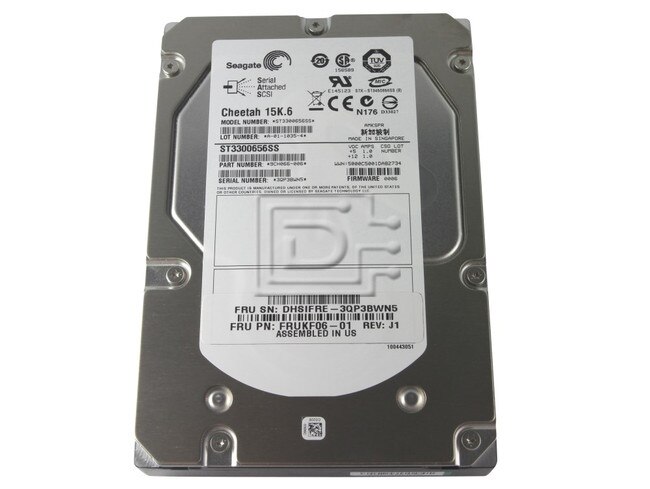

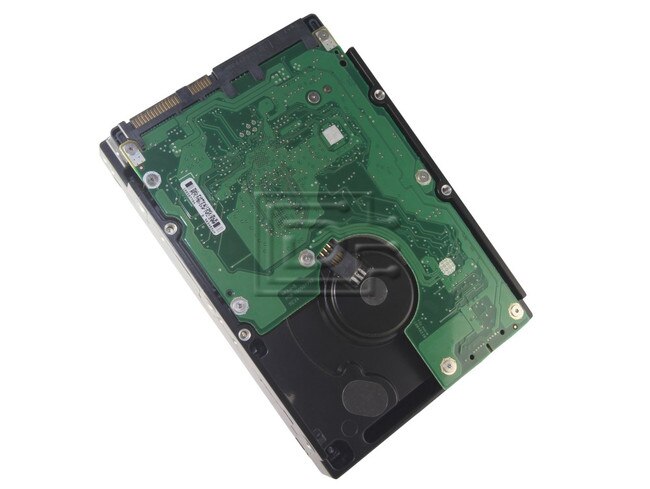

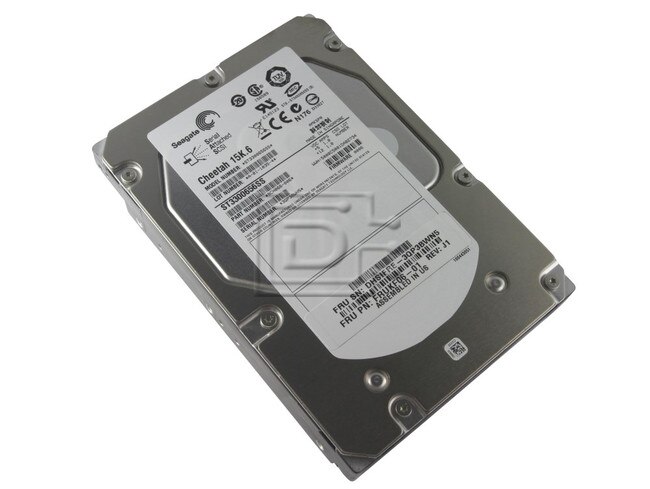

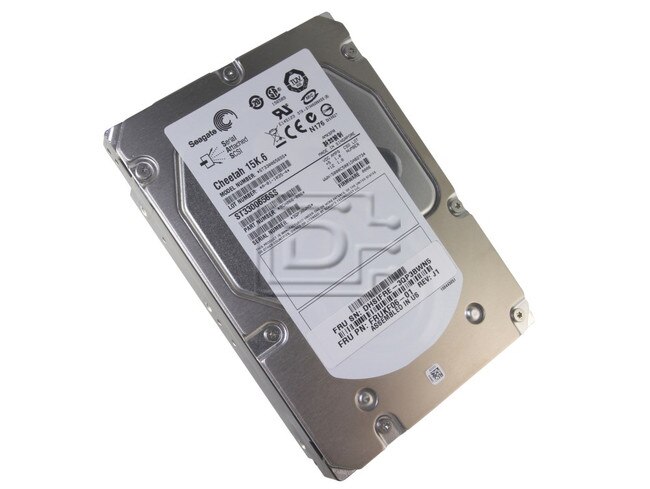

Seagate ST3300656SS SAS Hard Drives

(0) No Reviews Yet

Seagate Part #/MPN: ST3300656SS

DiscTech Item #: SGT-ST3300656SS-BN-5Y


$299.99
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$299.99

Enterprise Grade

Capacity: 300GB

Speed: 15,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Electrical Interface: SAS Serial Attached SCSI - 3.0Gbps

On-Board Cache: 16MB

Specifications
Model NumberST3300656SS
InterfaceSAS 3Gb/s
Cache16MB
Capacity300 GB
Areal density (avg)165 Gbits/inch2
Guaranteed Sectors585,937,500
PHYSICAL
Height (max)26.11 mm (1.028 inches)
Width (max)101.85 mm (4.010 inches)
Length (max)146.99 mm (5.787 inches)
Weight (typical)694 grams (1.53 pounds)
PERFORMANCE
Spindle Speed15,000 rpm
Sustained data transfer rate171,000 null
Average latency2.0 msec
Random read seek time3.4 msec
Random write seek time3.9 msec
null300 null
RELIABILITY
MTBF1,600,000 hours
Annual Failure Rate0.55%
Unrecoverable read errors1 in 10^16
POWER
Maximum start current, AC4.06 amps
Maximum start current, DC1.78 amps
ENVIRONMENT
Ambient Temperature
Operating5 to55 degrees C
Nonoperating-40 to70 degrees C
Maximum operating temperature change20 degrees C per hour
Maximum nonoperating temperature change20 degrees C per hour
Shock
Operating Shock (max)25 Gs null 2 msec
Nonoperating Shock (max)300 Gs null 2 msec
ACOUSTICS
Acoustics (Idle Volume)3.5 bels
Acoustics (Seek Volume)3.7 bels

Click here to view the manufacturer's item description/brochure

Weight: 1.8

Warranty: 5 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new & sealed in retail box packaging.

5 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
