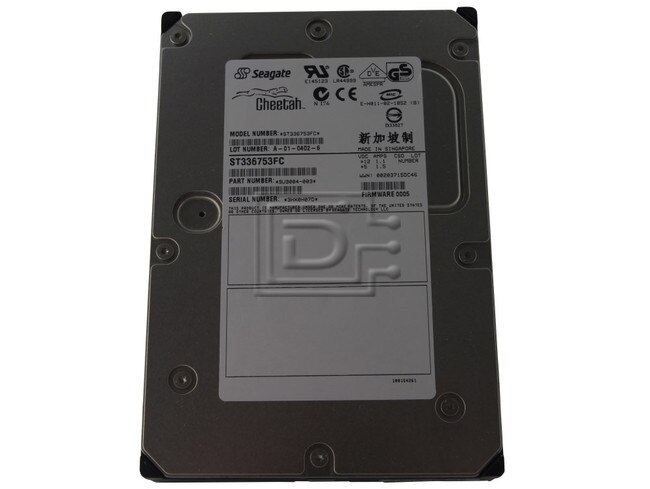

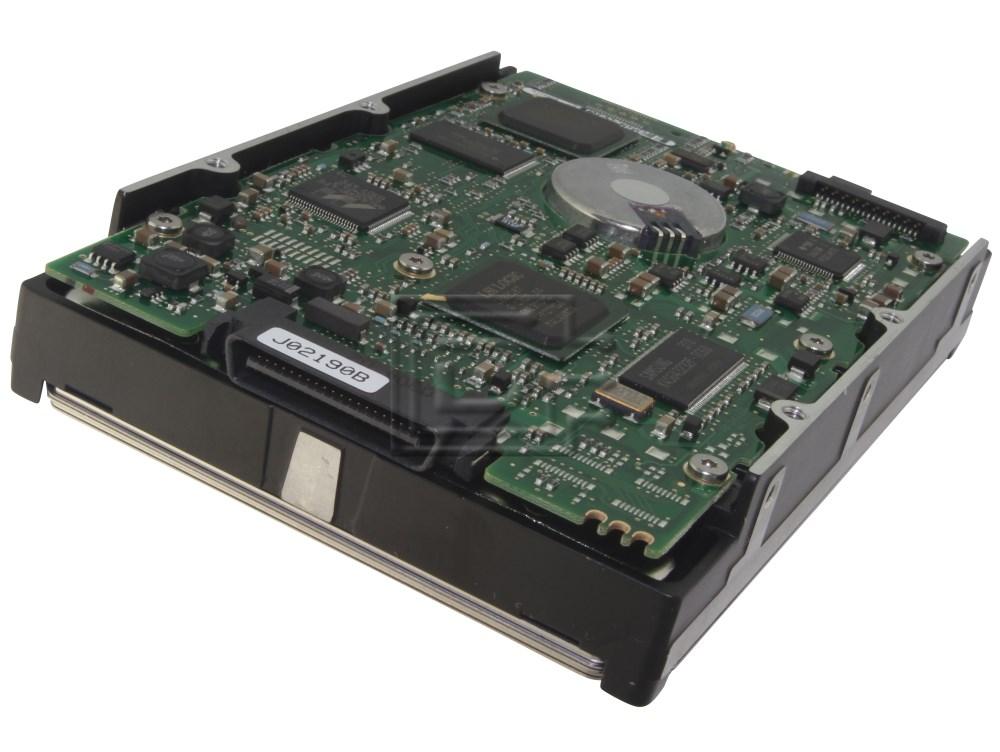

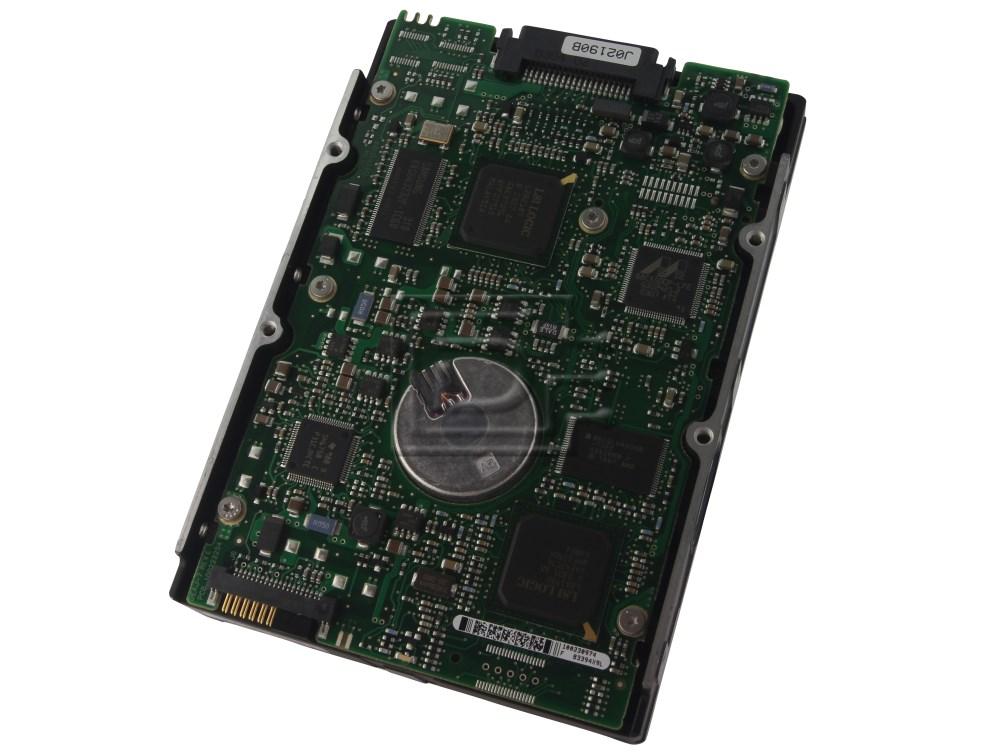

Seagate ST336753FC Fibre / Fiber Channel Hard Drive

(0) No Reviews Yet

Seagate Part #/MPN: ST336753FC

DiscTech Item #: SGT-ST336753FC-FR-1Y


$129.95
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$129.95

Enterprise Grade

Capacity: 36GB

Speed: 15,000RPM

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 56.1 to 86.0

Average Seek Time: 3.6 / 4.0

Electrical Interface: FC-AL - 2Gbps

On-Board Cache: 8MB

SEAGATE TECHNOLOGY LLC 1-800-SEAGATE http://www.seagate.com (C)opyright 2002 ST-336753FC Fibre Channel FC-AL, Dual Port (Cheetah 15K.3) ÉÍÍÍÍÍÍÍÍÍÍÍ» º REAR VIEW º ST-336753FC ÈÍÍÍÍÍÍÍÍÍÍͼ 40 pin I/O and DC Power Wall/bracket Connection ³ Female J1 /ÄÄÄijÄÄÄÄÄÄÄÄÄ\ TOP (HDA) ÍÍÍÍÍÍÍÍÍÍ/ ×××××××××××××× \ÍÍÍÍÍÍÍÍÍÍ (\Ä1ÄÄÄÄÄÄÄÄÄÄÄÄ20/) BOTTOM Notes on 40 pin I/O connector: +12v = pins 2, 3, 4, 21 +5v = pins 19, 20, 40 GND = pins 6, 22, 23, 26, 29, 32, 35 Mating FC connector: AMP US p/n: 787317-1 straight-in, Male 40-pin ÉÍÍÍÍÍÍÍÍÍÍÍÍ» º FRONT VIEW º (ST-336753FC) ÈÍÍÍÍÍÍÍÍÍÍÍͼ Reserved. Shipped with cover installed. Do not remove. Do not install jumpers ³ ÚÂÄÄÄÄ Reserved ³ ³³ÚÄÄÄ Fault LED ³ ³³³ÚÄÄ Port B Bypass LED ³ ³³³³ÚÄ Port A Bypass LED TOP (HDA) ÕØÍÍ͸ ³³³³1 ÍÍPÍWÍAÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍ͵::::³::::::ÆÍÍ * BOTTOM ÔÍÍÍ;³³³ÀÅÙ ³ J6 ³³³ ÀÄÄ Ground LED ÄÙ ³³ÀÄÄÄÄ Active LED ³ÀÄÄÄÄÄ Ground ÀÄÄÄÄÄÄ Remote LED (pin-11 +5v) ST336753FC drives have two independent FC-AL ports. These ports may be connected on independent loops or on the same loop. Port A and Port B may be connected in any order or combination. ST-336753FC UNFORMATTED CAPACITY (GB) ________________48.2 FORMATTED CAPACITY (GB) __________________36.7 AVERAGE SECTORS PER TRACK ________________572 rounded down ACTUATOR TYPE ____________________________ROTARY VOICE COIL TRACKS ___________________________________125,240 CYLINDERS ________________________________31,310 user HEADS ______PHYSICAL______________________4 DISCS (2.5 in) ___________________________2 MEDIA TYPE _______________________________THIN FILM/GMR RECORDING METHOD _________________________PRML INTERNAL TRANSFER RATE (mbits/sec)________632 to 891 INTERNAL FORMATTED TRANSFER RATE (MB/sec)_56.1 to 86.0 EXTERNAL TRANSFER RATE (mbyte/sec/port)___106 Sync SPINDLE SPEED (RPM) ______________________15k AVERAGE LATENCY (mSEC) ___________________2.0 BUFFER ___________________________________8MB Read Look-Ahead, Adaptive, Multi-Segmented Cache INTERFACE ________________________________Ultra-SCSI Wide Low Voltage Differential __________Ultra3-SCSI Wide ASA II, SCAM level 2 (1 default) BYTES PER TRACK __________________________377,770 avg SECTORS PER DRIVE ________________________71,687,372 TPI (TRACKS PER INCH) ____________________64,000 BPI (PEAK KBITS PER INCH) ________________533 AVERAGE ACCESS (ms read/write)____________3.6/4.0 Drive level without controller overhead SINGLE TRACK SEEK (ms read/write) ________0.20/0.40 MAX FULL SEEK (ms read/write) ____________6.5/6.9 MTBF (power-on hours) ____________________1,200,000 SHOCK (G's, 11/2/.5 ms): operating (Read/Write) __________15 abnormal ________________________40 nonoperating ____________________75/250/100 ACOUSTICS (Bels typical, sound power) ____3.5 POWER DISSIPATION (watts/BTUs) Active ____/ Idle ______10.5/35.8 POWER REQUIREMENTS: +12V START-UP (amps) _1.50 +12V TYPICAL (amps) __0.52 idle +5V START-UP (amps) __1.01 +5V TYPICAL (amps) ___0.86 idle IDLE (watts) _________ LANDING ZONE (cyl) _______________________AUTO PARK IBM AT DRIVE TYPE ________________________0 or NONE Physical: Height (inches/mm): 1.0/25.4 Width (inches/mm): 4.00/101.6 Depth (inches/mm): 5.75/146 Weight (lbs/kg): 1.85/0.842 Already low-level formatted at the factory with x spare sectors at the end of each x cylinder region. ZBR = Zone Bit Recording = Variable sectors per track Seagate reserves the right to change, without notice, product offerings or specifications. (10/09/2002)

Click here to view the manufacturer's item description/brochure

Weight: 1.8 lb

Warranty: 1 Year Manufacturer

Factory Refurbished

Condition Levels Explained

The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.

1 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
