Seagate Part #/MPN: ST3600002SS
DiscTech Item #: SGT-ST3600002SS-RF-OE-DEL
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 600GB
Speed: 10,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 150
Average Seek Time: 3.8 / 4.4
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 16MB
Compatible Systems: Dell 10th Gen. 2950 / 6950

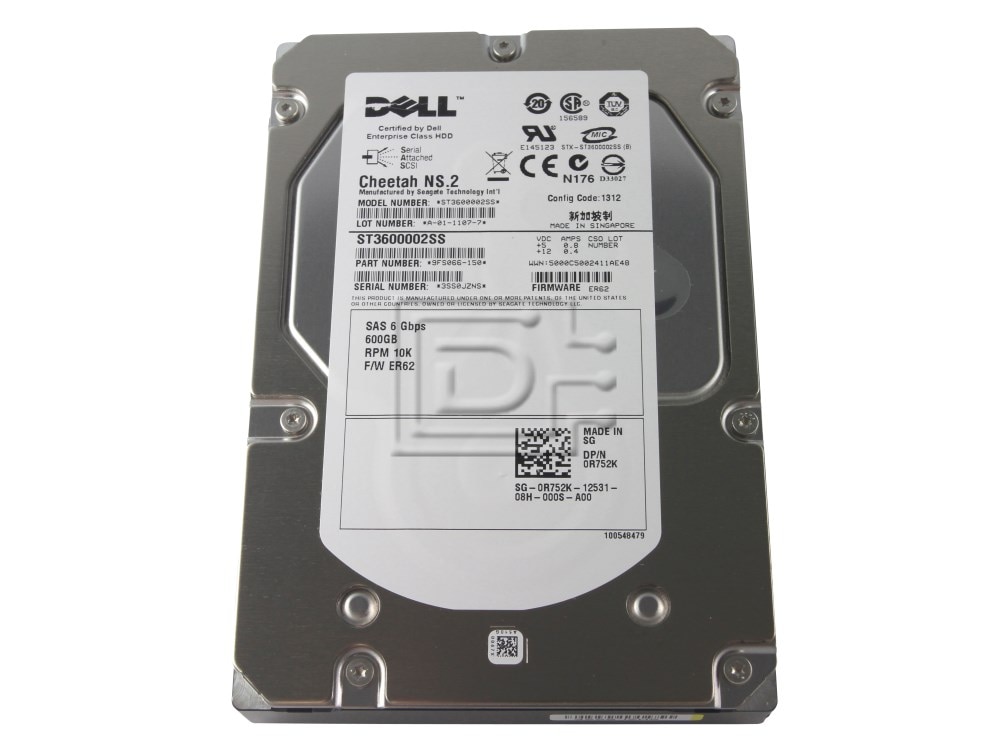

Seagate Cheetah NS.2 600GB 10K 6.0Gbps Serial SCSI / SAS Hard Drive ST3600002SS - Refurbished OEM
The Seagate® Cheetah® NS.2 drive reduces costs with the lowest-power, highest-capacity and highest-reliability solution for 3.5-inch Tier 1 requirements.
Key Advantages
- Lowest-power 3.5-inch Tier 1 drive (20 percent delta over runner-up).
- Highest-capacity Tier 1 drive (600 GBc.
- Highest reliability rating in the industry.
- Seagate PowerTrim™ technology dynamically reduces power usage.
- Supports 6-Gb/s SAS 2.0.
- Government-grade Self-Encrypting Drive option.
Dell p/n: 0K054N K054N R752K 0R752K
Compatibility:
This drive is compatible with all SAS compatible servers including:
Dell PowerEdge 840, 1900, 1950, 1950 III, 2900, 2900 III, 2950, 2950 III, 2970, 6900, 6950, R300, R900, R905, T300, T605 Servers and PowerVault MD1000, MD3000, NF100, NF500, NF600 Storage Arrays.
HP / Compaq Proliant DL140 G2 , DL140 G3 , DL145 G2 , DL145 G3 , DL160 G5 , DL160 G5p , DL165 G5 , DL180 G5 , DL185 G5, DL320 G3 , DL320 G4 , DL320 G5 , DL320 G5p , DL360 G4p , DL380 G5 , ML110 G3 , ML150 G3 , ML150 G5 , ML310 G2 , ML310 G3 , ML310 G4 , ML310 G5 , ML350 G4p , ML350 G5.
Specifications | |
Model number | ST3600002SS |
Model Name | Cheetah NS.2 |
Form Factor(width) | 3.5-inch |
Form Factor(height) | 1-inch |
Height | 25.4 mm |
Width | 101.6 mm |
Length | 146.05 mm |
Weight | 0.686 kg |
Formatted Capacity | 600 Gbytes |
Internal Transfer Rate (max) | 1840 Mbits/sec |
External (I/O) Transfer Rate (max) | 600 MBytes/sec |
Average Seek Time, Read | 3.8 msec typical |
Average Seek Time, Write | 4.4 msec typical |
Track-to-Track Seek, Read | 0.2 msec typical |
Track-to-Track Seek, Write | 0.4 msec typical |
Average Latency | 3 msec |
Default Buffer (cache) Size | 16 Mbytes |
Number of Discs (physical) | 4 |
Number of Heads (physical) | 8 |
Max Operating Shock (2-msec) | 60 Gs |
Max Nonoperating Shock (2-msec) | 300 Gs |
Operating Vibration (max) | 1.0 Gs |
Nonoperating Vibration (max) | 3.0 Gs |
Operating Temperature (max) | 55 deg C |
Operating Temperature (min) | 5 deg C |
Nonoperating Temperature (max) | 70 deg C |
Nonoperating Temperature (min) | -40 deg C |
Acoustics, Idle (sound power, typ) | 3.6 Bels |
MTBF (Hours) | 1,600,000 hours |
Nonrecoverable Read Errors | 1 per 10^16 bits read |
Supports S.M.A.R.T. | Yes |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 0K054N K054N R752K 0R752K
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
