Seagate Part #/MPN: ST3600057FC
DiscTech Item #: SGT-ST3600057FC-FR-OE
- Factory RefurbishedCondition Levels Explained
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
Product Warranties ExplainedThe product has a manufacturer warranty for the time period specified.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 600GB
Speed: 15,000RPM
Interface Types: Fibre Channel - Internal - Arbitrated Loop ASA II
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 204
Average Seek Time: 3.4 / 3.9
Electrical Interface: FC-AL - 4Gbps
On-Board Cache: 16MB

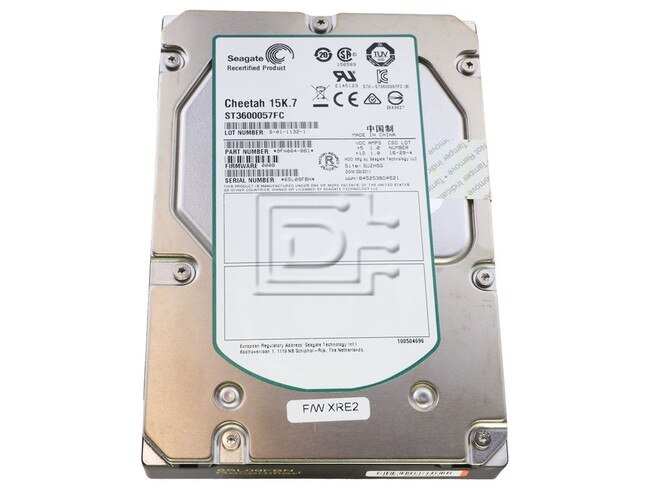

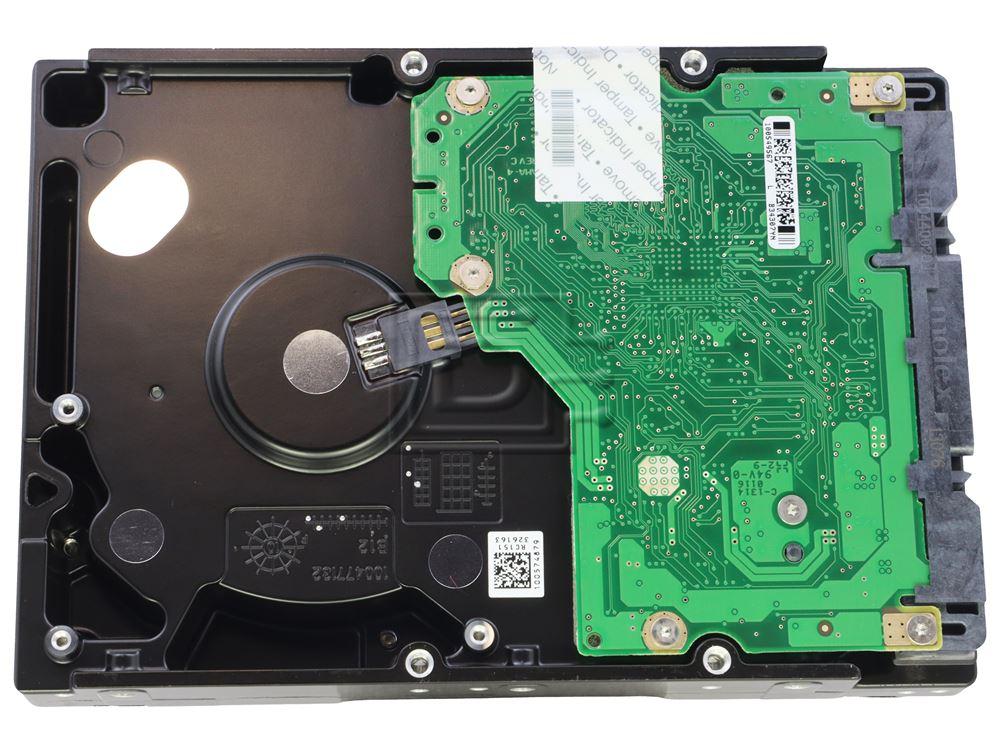

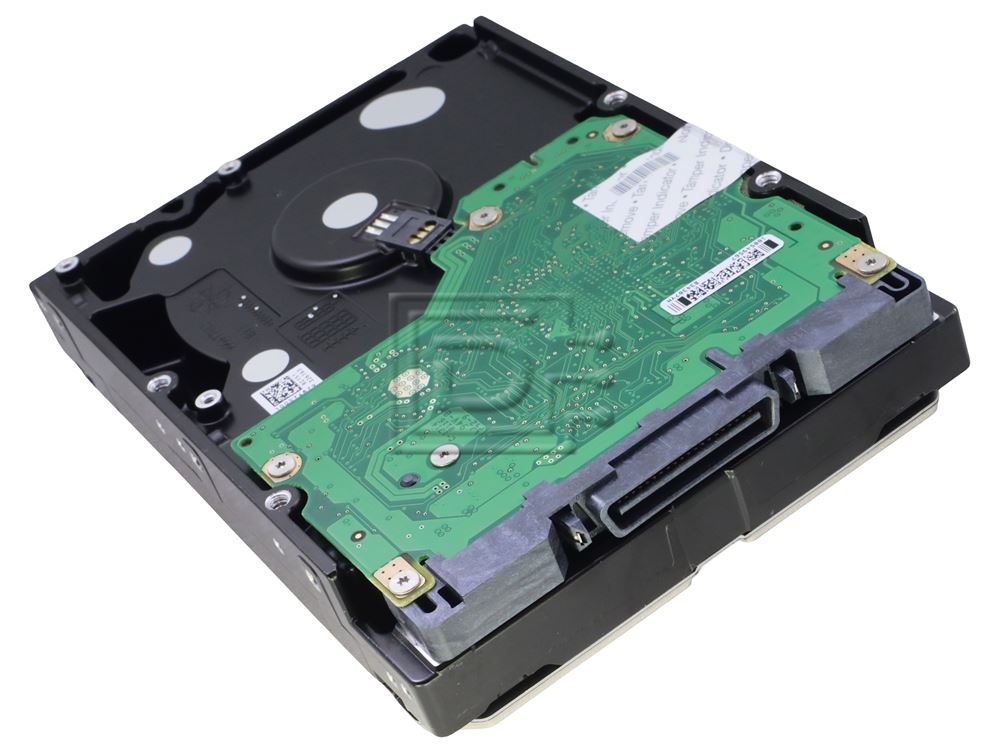

Seagate Cheetah 15K.7 ST3600057FC 600GB 15K 4Gbps 40pin FC-AL Fibre / Fiber Channel Hard Drive - Factory Refurbished
Seagate Cheetah 15K.7 ST3600057FC 600GB 15000 RPM 4Gbps 40pin FC-AL Fibre / Fiber Channel Hard Disk Drive - Factory Refurbished
Key Advantages- Third-generation perpendicular recording delivers up to 600 GB capacity.
- Unprecedented performance with sustained data rate of up to 204 MB/s - a 16 percent increase over last generation
- Industry’s highest 3.5-inch drive reliability at 1.6-million-hours MTBF.
- Seagate PowerTrim™ technology provides a 62 percent improvement in GBs/watt at idle over typical 3.5-inch hard drives.
- Read/write advances deliver nonrecoverable error rate of 1x10-16
- Available in 4-Gb/s FC or 6-Gb/s SAS interfaces (supports SAS 2.0 feature set)
- Secure your data with government-grade Self-Encrypting Drive option.*
- Self-Encrypting Drive (SED) option cuts IT drive retirement expenses while securely protecting data and is one of the easiest, most cost-effective security measures you can implement.*
- Highest-performance 3.5-inch drive
- Highest-capacity Tier 1, mission-critical drive (up to 600 GB)
- Highest reliability rating in the industry
- Seagate® PowerTrim™ technology dynamically reduces power usage.
- Supports 6-Gb/s transfer rates and SAS 2.0 feature set, and 4-Gb/s FC
- Reduces RAID rebuild times while minimizing reliability risks
- Government-grade Self-Encrypting Drive option*
- Self-Encrypting Drive (SED) option cuts IT drive retirement expenses while securely protecting data and is one of the easiest, most cost-effective security measures you can implement.*
- *Requires TCG-compliant host or controller support
Compatibility:
This drive is compatible with any of our Fibre / Fiber Channel adapters and also with any of our Fibre / Fiber hot-swap trays.
Specifications | |
---|---|
Model number | ST3600057FC |
Model Name | Cheetah 15K.7 |
Formatted Capacity | 600 Gbytes |
Rotational Speed | 15,000 rpm |
Default Buffer (cache) Size | 16 Mbytes |
Performance | |
External (I/O) Transfer Rate (max) | 4 Gbp /sec |
Sustained Transfer Rate | 204 MBytes/sec |
Average Seek Time, Read | 3.4 msec typical |
Average Seek Time, Write | 3.9 msec typical |
Average Latency | 2 msec |
Physical | |
Form Factor(width) | 3.5-inch |
Form Factor(height) | 1-inch |
Height | 26.10 mm |
Width | 101.85 mm |
Length | 146.99 mm |
Weight | 0.800 kg |
Electrical | |
Maximum start current, AC | 3.73 amps |
Maximum start current, DC | 1.93 amps |
Reliability | |
MTBF (Hours) | 1,600,000 hours |
Nonrecoverable Read Errors | 1 per 10^16 bits read |
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Factory Refurbished
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
The product has a manufacturer warranty for the time period specified.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
