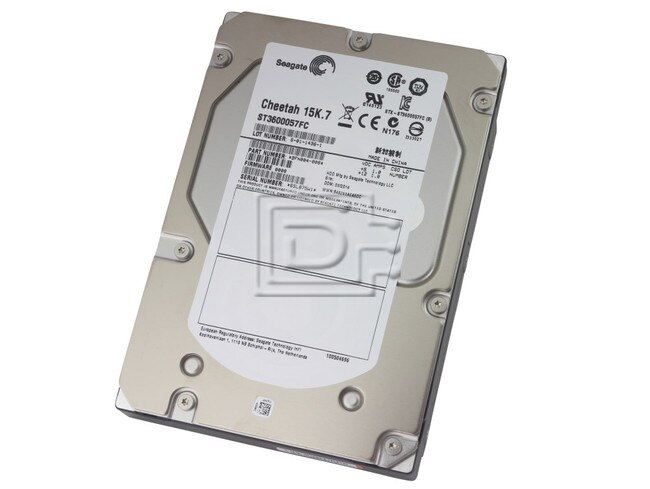

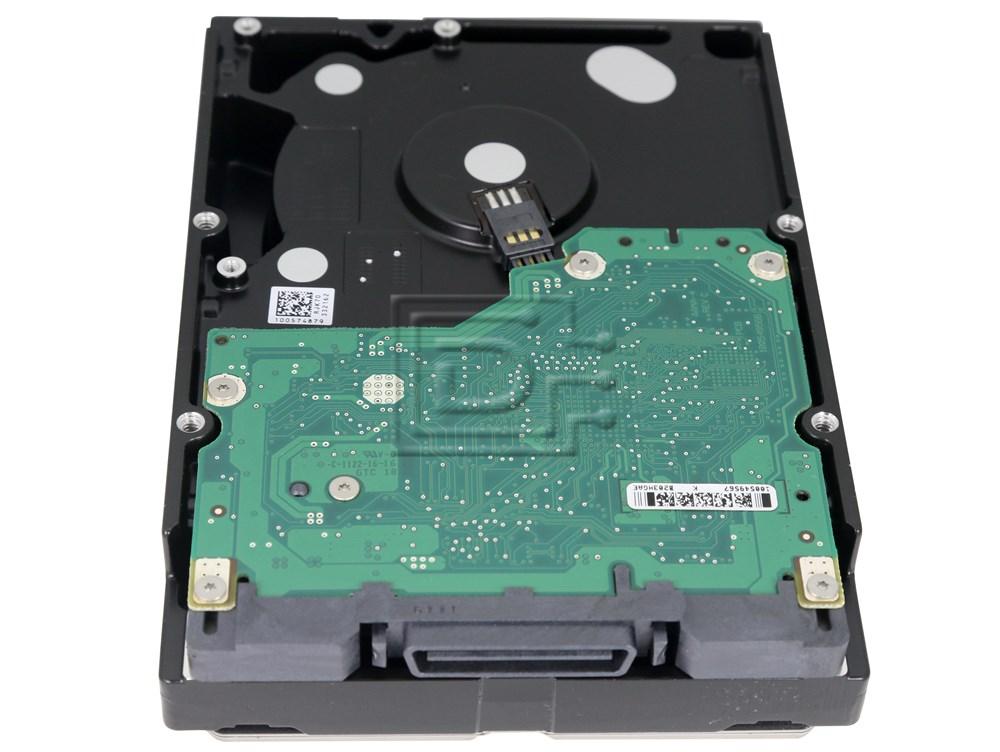

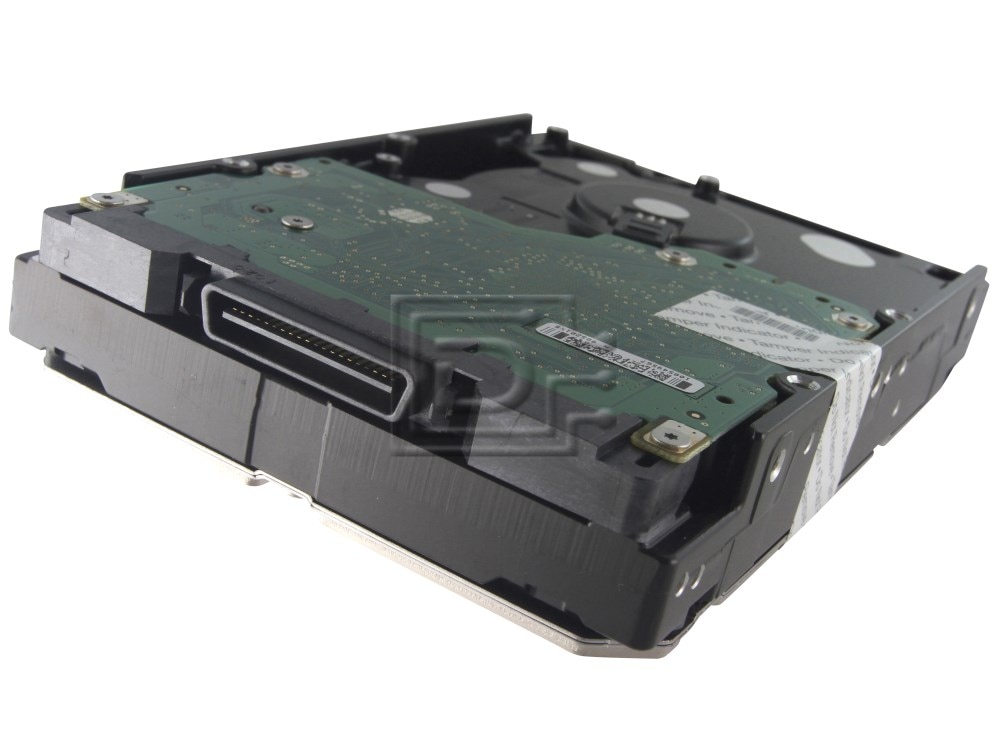

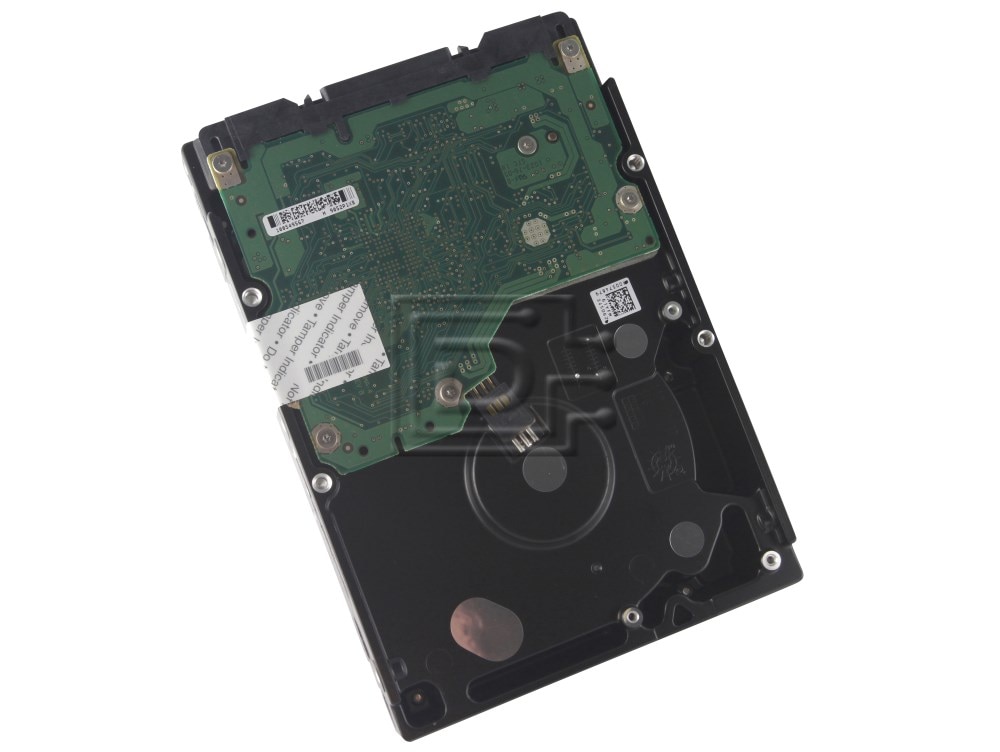

Seagate Part #/MPN: ST3600057FC
DiscTech Item #: SGT-ST3600057FC-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 600GB
Speed: 15,000RPM
Interface Types: Fibre Channel - Internal - Arbitrated Loop ASA II
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 204
Average Seek Time: 3.4 / 3.9
Electrical Interface: FC-AL - 4Gbps
On-Board Cache: 16MB
- Third-generation perpendicular recording delivers up to 600 GB capacity.
- Unprecedented performance with sustained data rate of up to 204 MB/s - a 16 percent increase over last generation
- Industry’s highest 3.5-inch drive reliability at 1.6-million-hours MTBF.
- Seagate PowerTrim™ technology provides a 62 percent improvement in GBs/watt at idle over typical 3.5-inch hard drives.
- Read/write advances deliver nonrecoverable error rate of 1x10-16
- Available in 4-Gb/s FC or 6-Gb/s SAS interfaces (supports SAS 2.0 feature set)
- Secure your data with government-grade Self-Encrypting Drive option.*
- Self-Encrypting Drive (SED) option cuts IT drive retirement expenses while securely protecting data and is one of the easiest, most cost-effective security measures you can implement.*
- Highest-performance 3.5-inch drive
- Highest-capacity Tier 1, mission-critical drive (up to 600 GB)
- Highest reliability rating in the industry
- Seagate® PowerTrim™ technology dynamically reduces power usage.
- Supports 6-Gb/s transfer rates and SAS 2.0 feature set, and 4-Gb/s FC
- Reduces RAID rebuild times while minimizing reliability risks
- Government-grade Self-Encrypting Drive option*
- Self-Encrypting Drive (SED) option cuts IT drive retirement expenses while securely protecting data and is one of the easiest, most cost-effective security measures you can implement.*
- *Requires TCG-compliant host or controller support
Specifications | |
---|---|
Model number | ST3600057FC |
Model Name | Cheetah 15K.7 |
Formatted Capacity | 600 Gbytes |
Rotational Speed | 15,000 rpm |
Default Buffer (cache) Size | 16 Mbytes |
Performance | |
External (I/O) Transfer Rate (max) | 4 Gbp /sec |
Sustained Transfer Rate | 204 MBytes/sec |
Average Seek Time, Read | 3.4 msec typical |
Average Seek Time, Write | 3.9 msec typical |
Average Latency | 2 msec |
Physical | |
Form Factor(width) | 3.5-inch |
Form Factor(height) | 1-inch |
Height | 26.10 mm |
Width | 101.85 mm |
Length | 146.99 mm |
Weight | 0.800 kg |
Electrical | |
Maximum start current, AC | 3.73 amps |
Maximum start current, DC | 1.93 amps |
Reliability | |
MTBF (Hours) | 1,600,000 hours |
Nonrecoverable Read Errors | 1 per 10^16 bits read |
