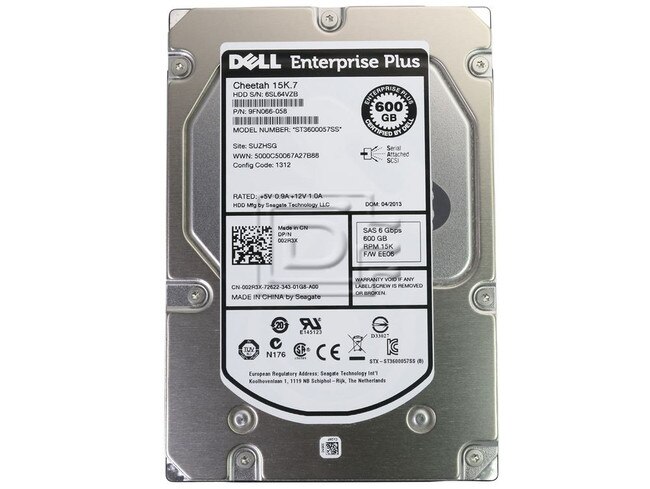

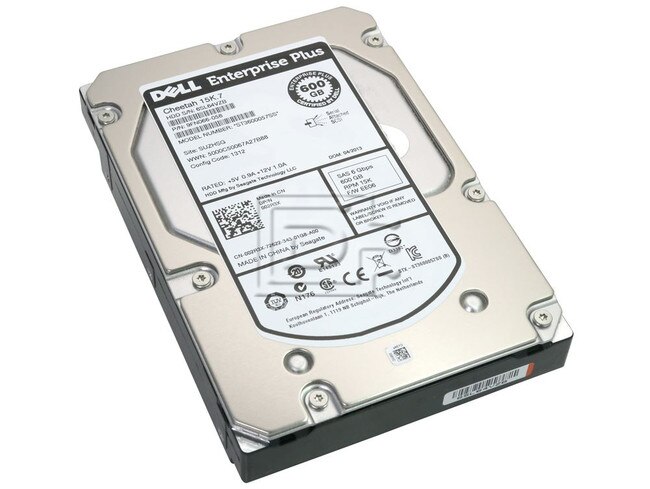

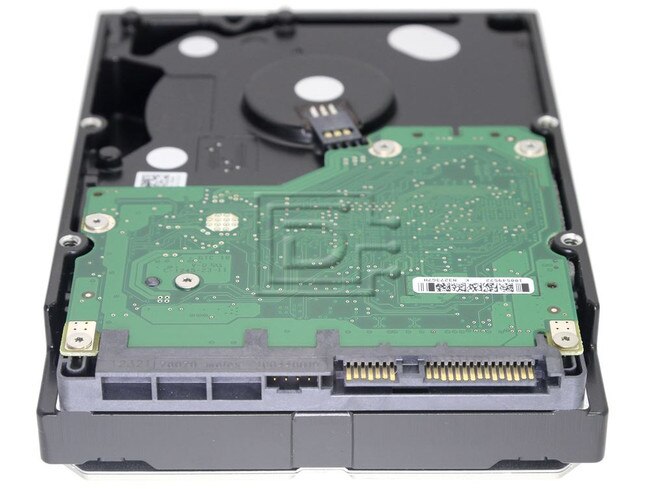

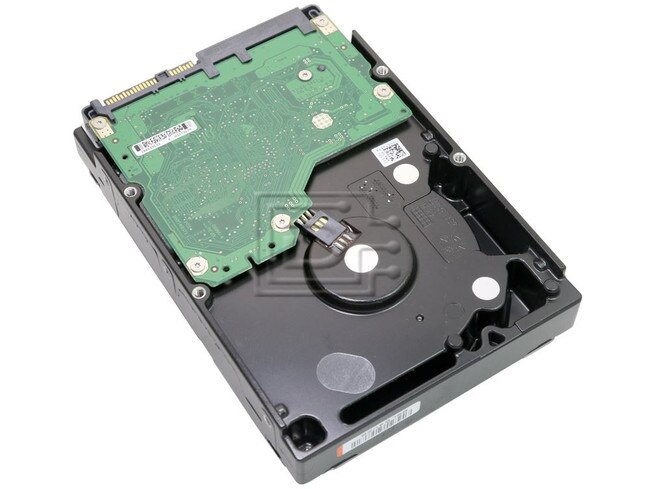

Dell Enterprise Plus EqualLogic 02R3X 0VX8J ST3600057SS 600GB 3.5in LFF SAS Drive

Seagate Part #/MPN: ST3600057SS

DiscTech Item #: SGT-ST3600057SS-BN-OE-DEP

$319.00
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Warranty:1 Year DiscTech
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

Back
$319.00

Enterprise Grade

Capacity: 600GB

Speed: 15,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 122 to 204

Average Seek Time: 3.4 / 3.9

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 16MB

Compatible Systems: Dell 10th Gen. 2950 / 6950

Dell Enterprise Plus EqualLogic 02R3X 0VX8J ST3600057SS 600GB 6Gbps 15K 3.5in LFF SAS Hard Drive - Brand New OEM

Alt MPN: 9FN066-058
Dell Enterprise Plus PNs: 0VX8J, 00VX8J
Alt DPNs: 002R3X, 02R3X

Cheetah® 15K.7
Highest capacity, performance and reliability in 3.5-inch mission-critical storage

Key Advantages

  • Third-generation perpendicular recording delivers up to 600GB
  • Unprecedented performance with sustained data rate of up to 204MB/s—a 16 percent increase over last generation
  • Industry’s highest 3.5-inch drive reliability at 1.6-million-hours MTBF
  • Seagate PowerTrim™ technology provides a 62 percent improvement in GBs/W at idle over typical 3.5-inch hard drives
  • Read/write advances deliver nonrecoverable error rate of 1x10E16
  • Available in 4Gb/s FC or 6Gb/s SAS interfaces (supports SAS 2.0 feature set)

Lowest Cost of Ownership

  • Seventh-generation Seagate® Cheetah 15K.7 drive is the fastest, highest capacity and most reliable ever
  • Lower watts/GB ratio helps achieve reduced power and cooling costs while optimizing capacity requirements
  • Higher performance with fewer drives—reducing support infrastructure, physical space requirements and storage management costs
  • The highest reliability of any 3.5-inch drive, with increased system reliability due to the need for fewer drives

Highest Reliability

  • Seagate continues to focus on reliability and data protection. MTBF is an industry-leading 1.6 million hours
  • Seagate-exclusive enhanced Error Correction Code better maintains performance throughout the life of the drive and reduces the probability of lost data
  • The third generation of Seagate-exclusive Background Media Scan proactively scans the media for potential defects during drive idle time. It enables incipient errors to be corrected before data is lost
  • Quick and Robust Download feature loads new firmware in seconds, with built-in protection to ensure no corruption in the event of a power failure during firmware switch

Compatibility:

This drive is compatible with any server that accepts 3.5"x1" (Large Form Factor) SAS drives.

Specifications
Model NumberST3600057SS
Capacity
Formatted 512 KB/Sector (GB)600
External Transfer Rate (MB/s)6Gb/s Serial Attached SCSI
Performance
Spindle Speed (RPM)15K
Average Latency (ms)2.0
Seek Time Average Read/Write (ms)3.4/3.9
Transfer Rate
  • Internal (Mb/s, OD–ID): 1450 to 2370
  • Sustained (MB/s, 1000 x 1000): 122 to 204
    • Cache, Multisegmented (MB/s)16
    Configuration/Organization
    Disks / Heads4/8
    Nonrecoverable Read Errors per Bits Read1 sector per 10E16
    Reliability Rating at Full 24x7 Operation (AFR)0.55%
    MTBF (hours)1,600,000
    Power Management
    Typical, Fibre Channel (W)16.31
    Typical, SAS (W)16.35
    Power Idle, Fibre Channel (W)11.61
    Power Idle, SAS (W) 11.68
    Environmental
    Temperature, Operating (°C)5 to 55
    Temperature, Nonoperating (°C)–40 to 70
    Shock, Operating: 2ms (Gs)60
    Shock, Nonoperating: 2ms (Gs) 300
    Acoustics Idle (bels—sound power)3.6
    Vibration, Operating: <400Hz (Gs)1.0
    Vibration, Nonoperating: <400Hz (Gs)3.0
    Physical
    Height (in/mm)1.0/25.4
    Width (in/mm)4.0/101.6
    Depth (in/mm)5.76/146.52
    Weight (lb/kg)1.51/0.686
    Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Alternate MPNs: 0VX8J 00VX8J 002R3X 02R3X 9FN066-058
