Seagate Part #/MPN: ST373207FC
DiscTech Item #: SGT-ST373207FC-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 73GB
Speed: 10,000RPM
Interface Types: Fibre Channel - Internal - Arbitrated Loop ASA II
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: Up to 80
Average Seek Time: 4.7 / 5.3
Electrical Interface: FC-AL - 2Gbps
On-Board Cache: 8MB

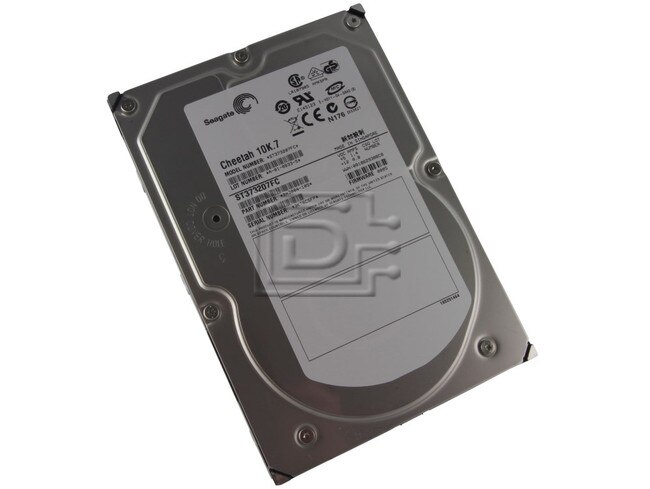

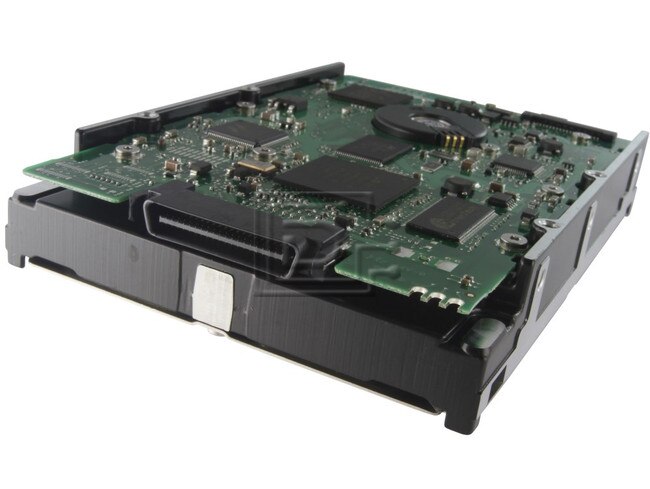

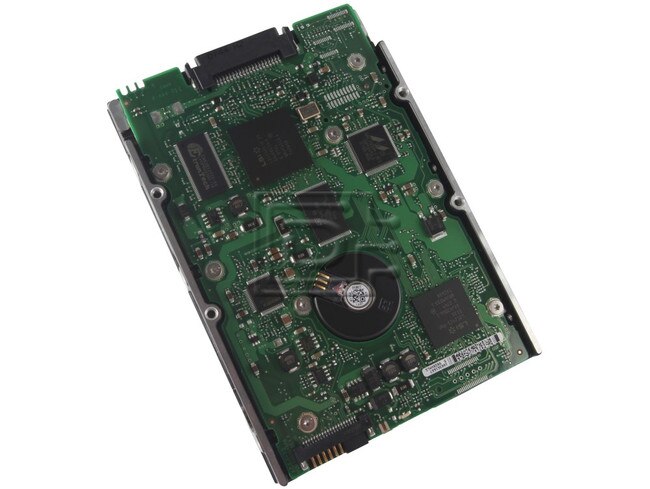

Seagate Cheetah 10K.7 ST373207FC 73GB 10K 2Gbps FC-AL Fibre Fiber Channel Hard Drive - Refurbished
- 8-MB cache
- 4.6-ms average read and 5.2-ms average write seek times
- Up to 80-MB/s sustained data rates
- Exclusive background media scan and enhanced error correction code
- Low power and cooling requirements
- Entry-level and mid-range servers
- High-end enterprise workstations
- Direct attached storage (JBOD/RAID)
- Storage area networks (SAN) storage
- Network attached storage (NAS) storage
- Data warehousing and data streaming
- Infrastructure (print, network, web, cache, security, portal)
- Collaboration (groupware, email, e-learning, messaging, calendar)
- Application development
Specifications | |
---|---|
Model number | ST373207FC |
Model Name | Cheetah 10K.7 |
Formatted Capacity | 73 Gbytes |
Rotational Speed | 10,000 rpm |
Default Buffer (cache) Size | 8 Mbytes |
Number of Discs (physical) | 1 |
Number of Heads (physical) | 2 |
Performance | |
Internal Transfer Rate (min) | 470 Mbits/sec |
Internal Transfer Rate (max) | 944 Mbits/sec |
Formatted Int Transfer Rate (min) | 59 MBytes/sec |
Formatted Int Transfer Rate (max) | 118 MBytes/sec |
External (I/O) Transfer Rate (max) | 2 Gbit/sec |
Sustained Transfer Rate | 39 - 80 MBytes/sec |
Average Seek Time, Read | 4.7 msec typical |
Average Seek Time, Write | 5.3 msec typical |
Track-to-Track Seek, Read | 0.2 msec typical |
Track-to-Track Seek, Write | 0.5 msec typical |
Average Latency | 3 msec |
Physical | |
Form Factor(width) | 3.5-inch |
Form Factor(height) | 1-inch |
Height | 25.4 mm |
Width | 101.6 mm |
Length | 146.05 mm |
Weight | 0.726 kg |
Electrical | |
Power (Typical) | 14.0 watts |
Power (Idle) | 8.7 watts |
Environmental | |
Max Operating Shock (2-msec) | 60 Gs |
Max Nonoperating Shock (2-msec) | 225 Gs |
Operating Vibration (max) | 1.0 Gs |
Nonoperating Vibration (max) | 3.0 Gs |
Operating Temperature (max) | 55 deg C |
Operating Temperature (min) | 5 deg C |
Nonoperating Temperature (max) | 70 deg C |
Nonoperating Temperature (min) | -40 deg C |
Reliability | |
MTBF (Hours) | 1,600,000 hours |
Nonrecoverable Read Errors | 1 per 10^15 bits read |
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 1 Year DiscTech
