Seagate Part #/MPN: ST480FP0021
DiscTech Item #: SGT-ST480FP0021-FR-OE
- Factory RefurbishedCondition Levels Explained
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
Product Warranties ExplainedThe product has a manufacturer warranty for the time period specified.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 480GB
Speed: Solid State Memory
Interface Types: SATA
Form Factor: 2.5inx7mm Fits All laptops
Sector Size: 512 / 512e
Electrical Interface: SATA 600 - 6.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Read Intensive

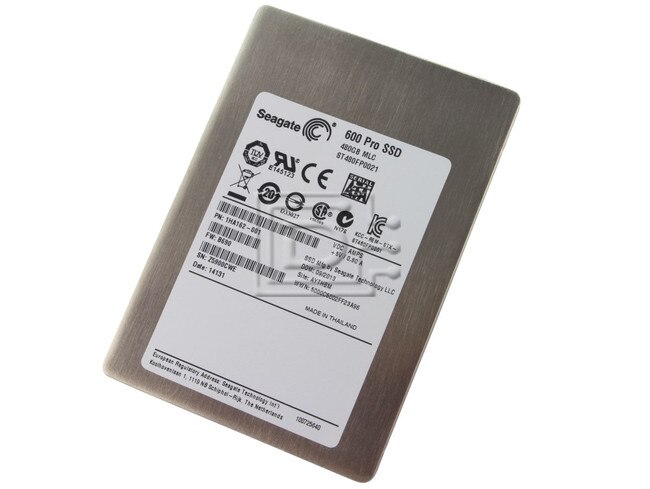

Seagate 600 Pro ST480FP0021 480GB, 6.0Gbps, 2.5inch, Multi Level Cell, Serial ATA Solid State Drive - Factory Recertified
Alt MPN: 1HA162-001
600 Pro SSD
A Class Above Client SSDs
- Delivers the highest IOPS/watt to improve system performance and reduce power and cooling costs for performance-hungry data center and cloud applications
- Fast, consistent performance and low latency over the warranty period of the drive
- Helps reduce performance gaps between storage I/O and CPU operations
- Provides up to 480GB user capacity
- Helps safeguard data against unexpected power loss
- Helps protect data from undetected, unintentional corruption (silent errors)
- One drive—many use cases
Best-Fit Applications
- Performance-hungry, read-intensive, data center applications, such as data indexing, edge caching, data streaming, or gaming/software delivery
- Cloud system builders, cloud service providers, content delivery networks and virtualized enterprise environments that demand the highest IOPS/W value
- Green IT and TCO reduction initiatives
- Power- and space-constrained data centers
Beyond a client SSD, the Seagate® 600 Pro SSD drive leverages proven enterprise expertise, an enterprise-tuned feature set and manufacturing excellence to deliver high levels of data integrity, manageability, interoperability and support. Optimized for NAND technology, Seagate multilayered error recovery technology with advanced error detection and correction encoding helps ensure data integrity. Seagate conducts extensive, rigorous failure condition and interoperability testing to deliver the quality and interoperability expected of a true enterprise-class SSD. And of course, this drive is backed by industry-leading support, deep supply chain relationships and global partner networks.
Specifications | |
---|---|
Model Number | ST480FP0021 |
Capacity | 480GB |
Interface Options | SATA 6Gb/s |
NAND Flash Type | MLC |
Performance | |
Sustained Data Transfer Rate (MB/s) | 520 |
I/O Data Transfer Rate, Max (MB/s) | 600 |
Sequential Read/Write Command Rate (MB/s) Peak, 128KB | 520/450 |
Random Read/Write Command Rate (KIOPS) Peak, 4KB | 85/11 |
Configuration/Reliability | |
Nonrecoverable Read Errors per Bits Read, Max | 1 per 10E16 |
Annualized Failure Rate (AFR) | 0.58% |
Total Terabytes Written (TBW) Enterprise Workload Over Warranty Period | 500 |
Total Terabytes Written (TBW) Sequentially Over Warranty Period | 2630 |
Power Management | |
+5V Max Start Current (A) | 0.5 |
Average Sleep Power (W) | 0.5 |
Average Idle Power (W) | 1.25 |
Average Operating Power (W) | 2.8 |
Environmental | |
Internal Operating Temperature (°C) | 0 to 70 |
Nonoperating Temperature (°C) | −40 to 75 |
Temperature Change Rate/Hr, Max (°C) | 20 |
Relative Humidity, Noncondensing (%) | 5 to 95 |
Shock, 0.5ms (Gs) | 1000 |
Vibration, 20Hz to 2000Hz (Grms) | 11.08 |
Physical | |
Height (mm/in) | 7.0/0.276 |
Width (mm/in) | 70.10/2.76 |
Depth (mm/in) | 100.45/3.955 |
Weight (g/lb) | 100/0.220 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 1HA162-001
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Factory Refurbished
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
The product has a manufacturer warranty for the time period specified.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
