Seagate Part #/MPN: ST8000NE0001
DiscTech Item #: SGT-ST8000NE0001-BN-5Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:5 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Special Order - Call for Lead TimeSpecial Order - Call for Lead Time
This item has a variable lead time for fulfilment. Please call us to discuss. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 8TB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 230
Average Seek Time: 4.16
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 256MB

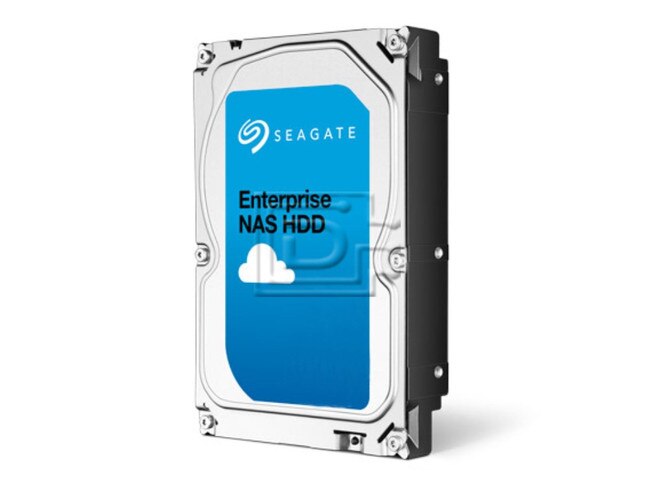

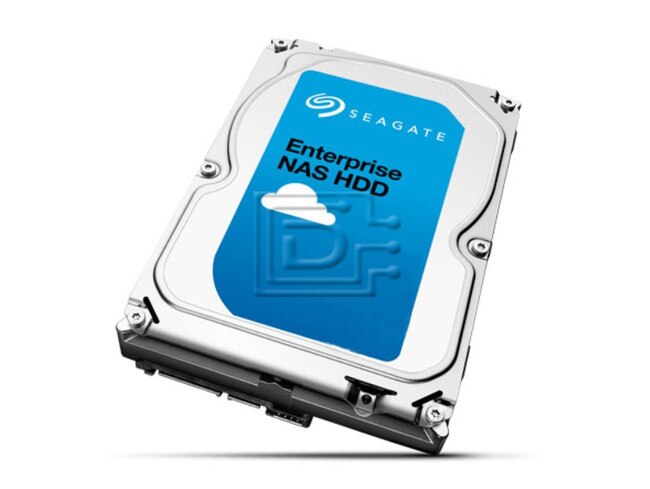

Seagate ST8000NE0001 8TB 3.5 inches 6Gbps 7.2K RPM Enterprise NAS SATA HDD - Brand New
Seagate ST8000NE0001 8TB / 8000GB 6.0 Gbps 7200 RPM Enterprise NAS Serial ATA Hard Disk Drive - Brand New
The first 8TB drive optimized for mid-range NAS, server and scale-out cloud storage
- Enterprise-class reliability and performance for cloud-based storage and NAS applications in 1- to 16-bay enclosures
- 1.2 million hours MTBF for enterprise-class reliability
- 300TB-per-year workload rating for mid-range NAS and cloud-based storage
- 7200-RPM spindle speed performance
- Double the cache size—256MB multisegmented on 8TB capacity
- Dual-stage actuators to deliver precision seeks every time
- SATA 6Gb/s interface for easy integration into NAS and RAID rackmount systems
- RV sensor for sustained performance and reliability
Best-Fit Applications
- Cloud-based and NAS storage
- Backup and disaster recovery
- Multi-media server and storage
- File and print server sharing
- Archiving and cloud replication
- On-premise private cloud
- Tiered storage
- Remote access
- Virtualization
- Auxiliary storage
Compatibility:
This drive is compatible with any server that accepts 3.5in x 1.0in (LFF) SATA drives.
| Product Specifications | |
|---|---|
| Model Number (512E) | ST8000NE0001 |
| Interface Options | SATA 6Gb/s |
| Capacity | 8TB/8000GB |
| Features | |
| RV Sensors | Yes |
| Humidity Sensor | Yes |
| Super Parity | Yes |
| Low Halogen | Yes |
| AcuTrac Technology | Yes |
| Power Balance Technology | Yes |
| Hot-Plug Support | Yes |
| Cache, Multisegmented (MB) | 256 |
| Reliability/Data Integrity | |
| Mean Time Between Failures (MTBF, hours) | 1.2M |
| Reliability Rating @ Full 24x7 Operation (AFR) | 0.63% |
| Nonrecoverable Read Errors per Bits Read | 1 sector per 10E15 |
| Power-On Hours per Year | 8760 (24x7) |
| Sector Size (Bytes per Logical Sector) | 512/4096 |
| Performance | |
| Spindle Speed (RPM) | 7200 |
| Interface Access Speed (Gb/s) | 6.0, 3.0, 1.5 |
| Max. Sustained Transfer Rate OD (MB/s) | 230 |
| Average Latency (ms) | 4.16 |
| Interface Ports | Single |
| Rotation Vibration @ 1500 Hz (rad/s) | 12.5 |
| Power Consumption | |
| Startup Current, Average (12V, AFR) | 1.8 |
| Idle Power, Average (W) | TBD |
| Operating Mode, Typical (W) | 9.0 |
| Standby/Sleep Mode, Typical(W) | 0.6 |
| Power Supply Requirements | +12V and +5V |
| Environmental | |
| Temperature, Operating (°C) | 5 to 60 |
| Vibration, Nonoperating: 10Hz to 500Hz (Grms) | 5.0 |
| Shock, Operating, 2ms (Read/Write)(Gs) | 70/40 |
| Shock, Nonoperating, 1ms and 2ms (Gs) | 250 |
| Physical | |
| Height (in/mm, max) | 1.028/26.1 |
| Width (in/mm, max) | 4.010/101.85 |
| Depth (in/mm, max) | 5.878/147 |
| Weight (g/lb) | 780/1.720 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.8 lb
Warranty: 5 Year Manufacturer
Brand New
The product is brand new.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
