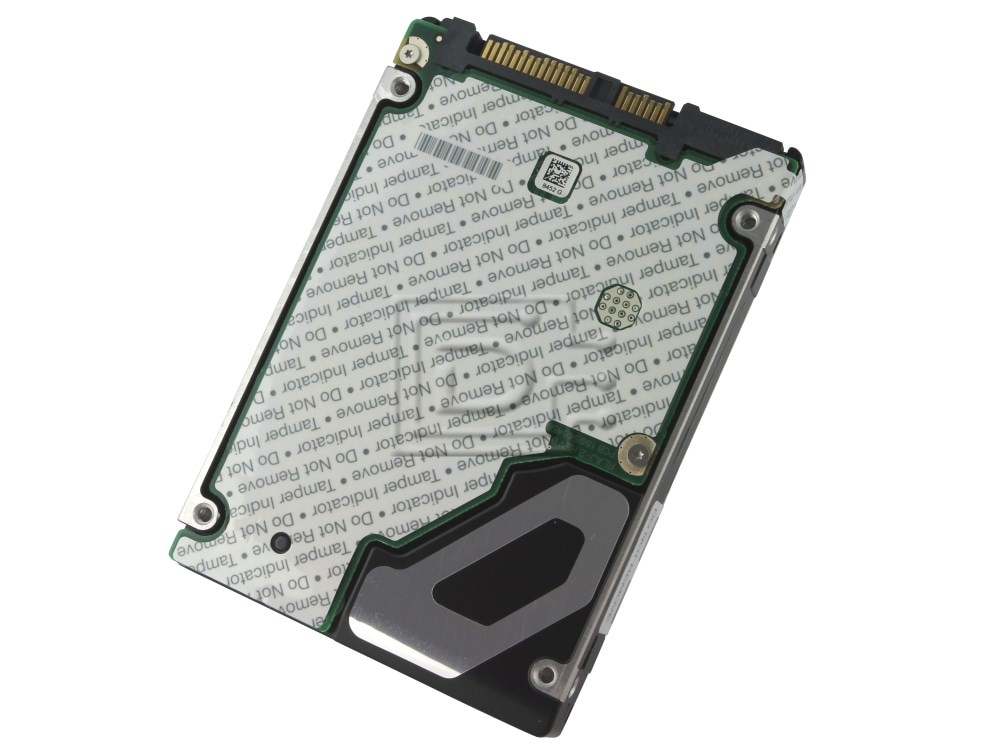

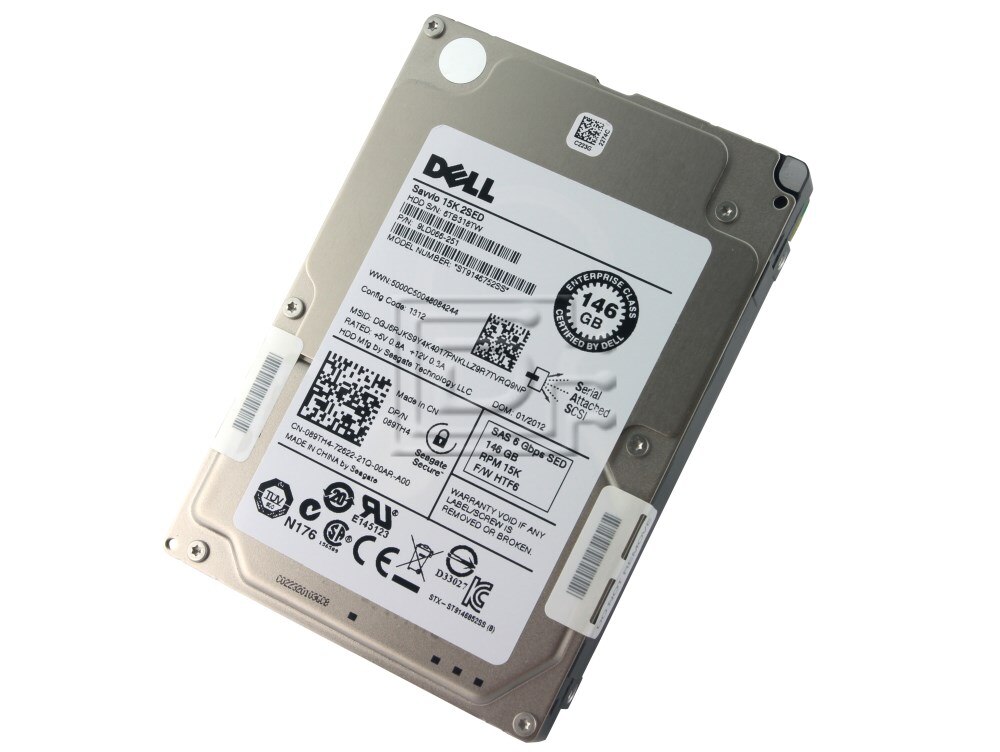

Seagate ST9146752SS SAS Hard Drive

(0) No Reviews Yet

Seagate Part #/MPN: ST9146752SS

DiscTech Item #: SGT-ST9146752SS-BN-OE-DEL


$169.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$169.00

Enterprise Grade

Capacity: 146GB

Speed: 15,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Encryption/SED Supported

Sector Size: 512 / 512e

Average Seek Time: 3.2 / 3.5

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 16MB

Seagate Savvio 15K.2 146GB 15K 6.0Gbps SFF Serial SCSI / SAS Self-Encrypting Hard Drive ST9146752SS - Brand New

Alt MPN: 9LD066-251

The Seagate® Savvio® 15K.2 drive delivers more transactional performance density than any other drive in the world because it is the highest performing, greenest drive available for enterprise storage systems. By being able to use more than twice the drives per the same rack configuration than 3.5-inch 15,000-RPM drives, the Savvio 15K.2 drive delivers more than twice the system performance. This is especially important in high-performance and blade servers demanding optimized RAID performance per U. Building on the Savvio line’s industry-leading 1.6 million hours MTBF, the Savvio 15K.2 drive provides second-generation reliability in enterprise environments.

The Savvio 15K.2 drive also offers the advanced SAS 2.0 interface and operates at 6-Gb/s transfer rates. SAS 2.0 provides the next generation of signal and data integrity features, making SAS ideally suited for use in high-end network storage applications. The SAS 2.0 feature set and 6-Gb/s transfer rate supports larger topologies by connecting more expanders, host bus adapters and RAID controllers within or across more storage arrays; by communicating over longer distances with high signal integrity, and by moving data two times faster, thereby doubling data throughput.

This powerful 2.5-inch drive’s advantages translate into greater overall value to IT organizations and administrators who want to optimize their data center performance efficiency.

This drive is Self-Encrypting.


Compatibility:

All SAS compatible servers including (This list is not all inclusive):



Dell PowerEdge 1950, 1955, 2900, 2950, 6950



Compaq/HP Proliant:

BL20p G4, BL460c, BL465c, BL480c, DL360 G4p, DL360 G5, DL380 G4, DL380 G5, DL385, DL385 G2, DL580 G3, DL580 G4, DL585, DL585 G2, ML350 G5, ML370 G4, ML370 G5, ML570 G3, ML570 G4

Specifications
Model number ST9146752SS
Model Name Savvio® 15K.2
Formatted Capacity 146 Gbytes
Rotational Speed 15,000 rpm
Default Buffer (cache) Size 16 Mbytes
Performance
External (I/O) Transfer Rate (max) SAS 2.0 6.0Gb/s
Average Seek Time, Read 3.2 msec typical
Average Seek Time, Write 3.5 msec typical
Average Latency 2 msec
Physical
Form Factor SFF
Height 14.5 mm
Width 70.1 mm
Length 100.5 mm
Weight 201 grams
Electrical
Startup Current (12VDC +/- 5%) 1.12 amps
Startup Current (5VDC +/- 5%) .45 amps
Reliability
MTBF (Hours) 1,600,000 hours
Supports S.M.A.R.T.Yes

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 89TH4 089TH4 9LD066-251

Weight: 1 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
