Seagate Part #/MPN: ST9146803SS
DiscTech Item #: SGT-ST9146803SS-BN-3Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:3 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 146GB
Speed: 10,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 67 to 129
Average Seek Time: 3.6/4.2
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 16MB
Compatible Systems: Dell 10th Gen. 2950 / 6950

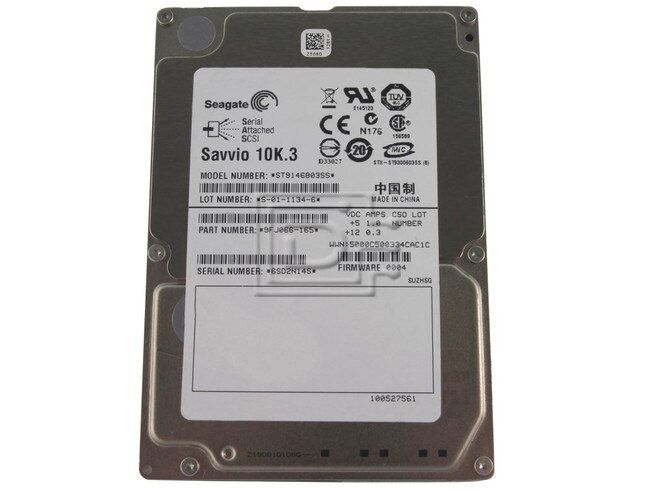

Seagate Savvio ST9146803SS 10K.3 146GB 10K 6Gbps SFF Serial SCSI / SAS Hard Drive - Brand New
Fast and then some
Seagate® Savvio® 10K.3 and Savvio 10K.3 FDE1 drives offer the best combination of enterprise performance and power efficiency, with up to 300-GB capacity for mainstream servers and external storage arrays. This third-generation Savvio drive gives you more than twice the number of drives over 3.5-inch products within the same rack configuration, and delivers a staggering 60 percent system-level performance increase. The Savvio 10K.3 and Savvio 10K.3 FDE drives are the world’s first to operate at 6-Gb/s transfer rates, which is part of the new SAS 2.0 feature set. SAS 2.0 was developed to provide additional signal and data integrity features to enable SAS to be ideally suited for use in highend network storage applications.
Lower power requirements = lower costs
The 2.5-inch footprint enables the lowest power profile of any tier-1 mission-critical drive. The Savvio 10K.3 drive with PowerTrim technology uses 67 percent less power than a 3.5-inch 15K drive. The lower power footprint of 2.5-inch drives enables lower cooling costs. The 2.5-inch drive advantages translate into greater overall value and reduced total cost of ownership to IT organizations and administrators who want to optimize their data center power and performance efficiency.
Government-grade security available
Delivering on the Seagate commitment to add security features throughout its product portfolio, the Savvio 10K.3 FDE drive is offered with selfencrypting FDE technology and will provide government-grade data-at-rest protection through its entire life cycle.
1 The Savvio 10K.3 FDE is available only through designated OEMs.
Compatibility:
All SAS compatible servers including (This list is not all inclusive):
Dell PowerEdge 1900, 1950, 1955, 2900, 2950, 6900, 6950 Servers and MD1120 Storage Arrays.
Compaq/HP Proliant:
BL20p G4, BL460c, BL465c, BL480c, DL360 G4p, DL360 G5, DL380 G4, DL380 G5, DL385, DL385 G2, DL580 G3, DL580 G4, DL585, DL585 G2, ML350 G5, ML370 G4, ML370 G5, ML570 G3, ML570 G4
| Specifications | |
|---|---|
| Model number | ST9146803SS |
| Model Name | Savvio 10K.3 |
| Formatted Capacity | 146.8 Gbytes |
| Rotational Speed | 10,000 rpm |
| Default Buffer (cache) Size | 16 Mbytes |
| Number of Discs (physical) | 1 |
| Number of Heads (physical) | 2 |
| Performance | |
| External (I/O) Transfer Rate (max) | 600 MBytes/sec |
| Sustained Transfer Rate | 67 - 129 MBytes/sec |
| Average Seek Time, Read | 3.6 msec typical |
| Average Seek Time, Write | 4.2 msec typical |
| Track-to-Track Seek, Read | 0.2 msec typical |
| Track-to-Track Seek, Write | 0.3 msec typical |
| Average Latency | 3 msec |
| Physical | |
| Form Factor(width) | 2.5-inch |
| Form Factor(height) | .583-inch |
| Height | 14.8 mm |
| Width | 70 mm |
| Length | 100.5mm |
| Weight | 0..227 kg |
| Electrical | |
| Power (Typical) | .35 amps |
| Environmental | |
| Max Operating Shock (2-msec) | 60 Gs |
| Max Nonoperating Shock (2-msec) | 300 Gs |
| Operating Vibration (max) | .5 Gs |
| Nonoperating Vibration (max) | 2.4 Gs |
| Operating Temperature (max) | 55 deg C |
| Operating Temperature (min) | 5 deg C |
| Nonoperating Temperature (max) | 70 deg C |
| Nonoperating Temperature (min) | -40 deg C |
| Reliability | |
| Nonrecoverable Read Errors | 1 per 10^16 bits read |
| Supports S.M.A.R.T. | Yes |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1 lb
Warranty: 3 Year Manufacturer
Brand New
The product is brand new.
3 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
