Seagate Part #/MPN: ST9146852SS
DiscTech Item #: SGT-ST9146852SS-BN-5Y
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Average Seek Time: 3.2 / 3.5
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 16MB

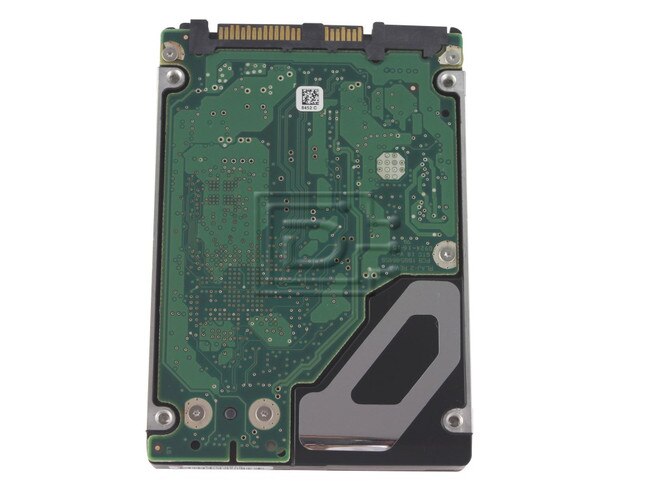

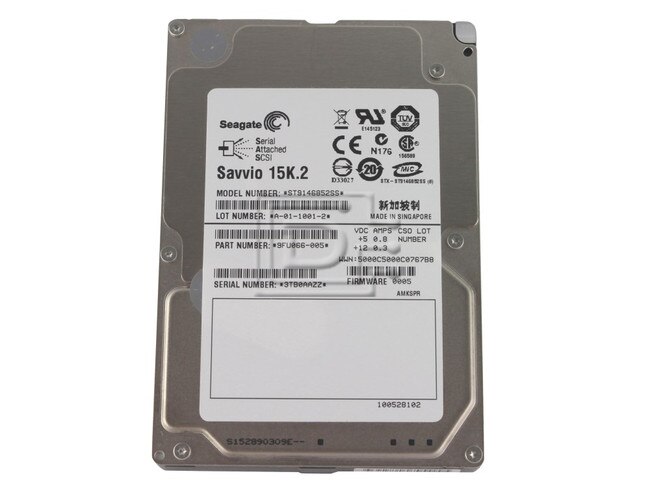

Seagate Savvio 15K.2 146GB 15K 6.0Gbps SFF Serial SCSI / SAS Hard Drive ST9146852SS - Brand New
The Seagate® Savvio® 15K.2 drive delivers more transactional performance density than any other drive in the world because it is the highest performing, greenest drive available for enterprise storage systems. By being able to use more than twice the drives per the same rack configuration than 3.5-inch 15,000-RPM drives, the Savvio 15K.2 drive delivers more than twice the system performance. This is especially important in high-performance and blade servers demanding optimized RAID performance per U. Building on the Savvio line’s industry-leading 1.6 million hours MTBF, the Savvio 15K.2 drive provides second-generation reliability in enterprise environments.
The Savvio 15K.2 drive also offers the advanced SAS 2.0 interface and operates at 6-Gb/s transfer rates. SAS 2.0 provides the next generation of signal and data integrity features, making SAS ideally suited for use in high-end network storage applications. The SAS 2.0 feature set and 6-Gb/s transfer rate supports larger topologies by connecting more expanders, host bus adapters and RAID controllers within or across more storage arrays; by communicating over longer distances with high signal integrity, and by moving data two times faster, thereby doubling data throughput.
This powerful 2.5-inch drive’s advantages translate into greater overall value to IT organizations and administrators who want to optimize their data center performance efficiency.
All SAS compatible servers including (This list is not all inclusive):
Dell PowerEdge 1950, 1955, 2900, 2950, 6950
BL20p G4, BL460c, BL465c, BL480c, DL360 G4p, DL360 G5, DL380 G4, DL380 G5, DL385, DL385 G2, DL580 G3, DL580 G4, DL585, DL585 G2, ML350 G5, ML370 G4, ML370 G5, ML570 G3, ML570 G4
|Model Name||Savvio® 15K.2|
|Formatted Capacity||146 Gbytes|
|Rotational Speed||15,000 rpm|
|Default Buffer (cache) Size||16 Mbytes|
|External (I/O) Transfer Rate (max)||SAS 2.0 6.0Gb/s|
|Average Seek Time, Read||3.2 msec typical|
|Average Seek Time, Write||3.5 msec typical|
|Average Latency||2 msec|
|Startup Current (12VDC +/- 5%)||1.12 amps|
|Startup Current (5VDC +/- 5%)||.45 amps|
|MTBF (Hours)||1,600,000 hours|
Click here to view the manufacturer's item description/brochure
Weight: 1 lb
Warranty: 5 Year Manufacturer
The product is brand new & sealed in retail box packaging.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
