Seagate Part #/MPN: ST9250315ASG
DiscTech Item #: SGT-ST9250315ASG-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Capacity: 250GB
Speed: 5,400RPM
Interface Types: SATA
Form Factor: 2.5inx9mm Fits Most laptops
Sector Size: 512 / 512e
Average Seek Time: 14
Electrical Interface: SATA 300 - 3.0Gbps
On-Board Cache: 8MB

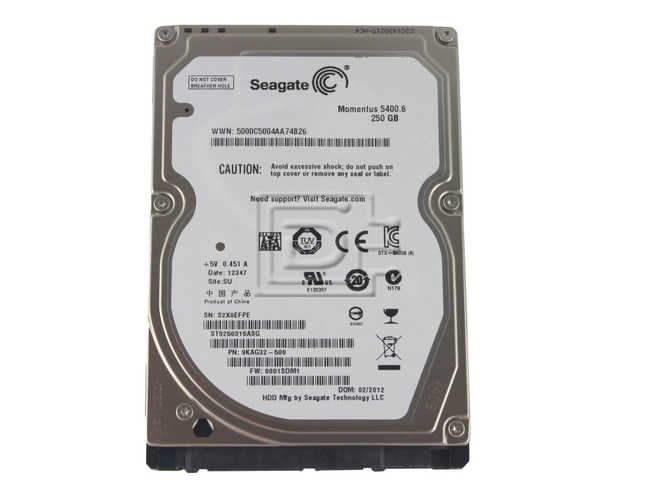

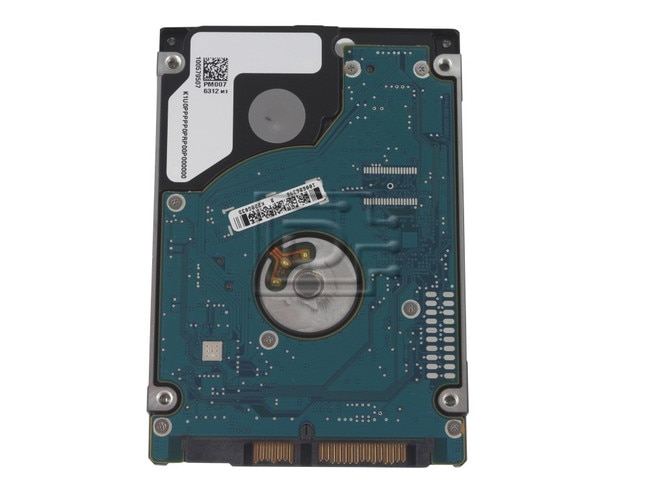

Seagate ST9250315ASG 2.5in 250GB 3Gbps 5.4K RPM HS Momentus 5400.6 SATA HDD - Brand New
Seagate ST9250315ASG 2.5" 250GB 3Gbps 5.4K RPM Hot Swappable Momentus 5400.6 SATA HDD - Brand New
Alt MPN: 9KAG32
These drives provide the following key features:
- 5,400-RPM spindle speed.
- 8-Mbyte buffer.
- Free Fall Protection (on ST9500325ASG, ST9320325ASG, ST9250315ASG, ST9160314ASG, ST9120315ASG, and ST980313ASG models only)
- Quiet operation. Fluid Dynamic Bearing (FDB) motor.
- High instantaneous (burst) data-transfer rates (up to 3.0 Gbits/sec).
- Perpendicular recording technology.
- State-of-the-art cache and on-the-fly error-correction algorithms.
- Native Command Queuing (NCQ) with command ordering.
- Full-track multiple-sector transfer capability without local processor intervention.
- 1,000 Gs nonoperating shock and 350 Gs of operating shock.
- SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns.
- The 3D Defense System™, which includes Drive Defense, Data Defense and Diagnostic Defense, offers the industry’s most comprehensive protection for disc drives.
- Support for S.M.A.R.T. drive monitoring and reporting.
- Support for Read Multiple and Write Multiple commands.
Compatibility:
This drive is compatible with any server that accepts 2.5"x9mm laptop SATA Drives.
| Drive Model | ST9250315ASG |
|---|---|
| Formatted Capacity | 250GB |
| Guarenteed Sectors | 488,397,168 |
| Bytes per Sector | 512 |
| Physical Read/Write Heads | 2 |
| Discs | 1 |
| Cache (Mbytes) | 8 |
| Recording Density in BPI (bits/inch avg) | 1,490k |
| Track Density TPI (tracks/inch avg) | 265k |
| Areal density (Gbit/inch avg) | 394 |
| Spindle Speed (RPM) | 5,400 |
| Average Latency (msec) | 5.6 |
| Internal Transfer Rate (Mbits/sec max) | 1,175 |
| I/O Data Transfer Rate (Mbytes/sec max) | 300 |
| ATA-Data-Transfer Modes Supported | SATA 1.0 Serial ATA Revision 2.6 PIO modes 0 - 4 Multiword DMA modes 0 - 2 Ultra DMA modes 0 - 6 |
| Height (max) | 9.5 +/- 0.2 mm (0.374 */+ .0079 in) |
| Width (max) | 69.85 +/- 0.255 mm (2.75 +/- 0.0098 in) |
| Length (max) | 100.35 + 0.20 / - 0.25 mm (3.957 + 0.0078 / - 0.0098 in) |
| Weight (max) | 93.5 g (0.206 lb) |
| Power-On to Ready (sec typical) | 3.6 |
| Power-On to Ready (sec max) | 3.8 |
| Standby to Ready (sec typical) | 1.8 |
| Standby to Ready (Sec max) | 2 |
| Track-to-Track Seek Time (msec typical) | 1 |
| Average Seek Read (msec typical) | 14 |
| Full-Stroke, Read (msec max) | 30 |
| Startup current, +5V (max) | 1 amp |
| Seek Power (typical) | 1.54 watts |
| Read/Write Power (typical) | Read: 1.40 watts Write: 1.78 watts |
| Idle Mode, Low Power (typical) | 0.67 watts |
| Standby Mode | 0.20 watts (typical) |
| Sleep Mode | 0.20 watts (typical) |
| Voltage Tolerance (including noise) | +5V ± 5% |
| Ambient Temperature | 0° to 60°C (operating) -40° to 70°C (non-operating) |
| Temperature Gradient (°C per hour max) | 20°C (operating) 35°C (non-operating) |
| Relative Humidity | 5% to 95% (operating) 5% to 95% (non-operating) |
| Relative Humidity Gradient | 30% per hour max |
| Wet Bulb Temperature (°C max) | 37.7 (operating) 40 (non-operating) |
| Altitude, Operating | -304.8 m to 3,048 m (-1,000 ft to 10,000+ ft) |
| Altitude, Non-Operating (meters below mean sea level, max) | -304.8 m to 12,192 m (-1000 ft to 40,000+ ft) |
| Shock, Operating (Gs max at 2 msec) | 350 |
| Shock, Non-Operating (Gs max at 2 msec) | 800 |
| Shock, Non-Operating (Gs max at 1 msec) | 1,000 |
| Shock, Non-Operating (Gs max at 0.5 msec) | 600 |
| Vibration, Operating | 1.0 G (0 to peak, 5 - 500 Hz) |
| Vibration, Non-Operating | 5.0 Gs (0 to peak, 5 - 5000 Hz) |
| Drive Acoustics, Sound Power (bels) Idle Performance Seek | 2.4 (typical) 2.6 (max) 2.6 (typical) 2.7 (max) |
| Non-Recoverable Read Errors | 1 per 10e14 bits read |
| Annualized Failure Rate (AFR) | 0.48% |
| Load/Unload (U/UL) Cycles 25°C, 50% Realative Humidity 32°C, 80% Relative Humidity 5°C, 80% Relative Humidity 5°C, 10% Relative Humidity 55°C 16% Relative Humidity | 600,000 software-controlled power on/off cycles 20,000 hard power on/of cycles 600,000software-controlled power on/off cycles 20,000 hard power on/off cycles |
| Supports Hotplug operations per Serial ATA Revision 2.6 Specification | Yes (requires COMRESET from host after a hotplug event) |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 9KAG32
