Seagate ST973401SS SAS Hard Drives

Seagate Part #/MPN: ST973401SS

DiscTech Item #: SGT-ST973401SS-RF-OE-DEL


$70.00
  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.

$70.00

Enterprise Grade

Capacity: 73GB

Speed: 10,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Average Seek Time: 4.5 / 5.1

Electrical Interface: SAS-1 Serial Attached SCSI - 3.0Gbps

On-Board Cache: 8MB

Compatible Systems: Dell 10th Gen. 2950 / 6950

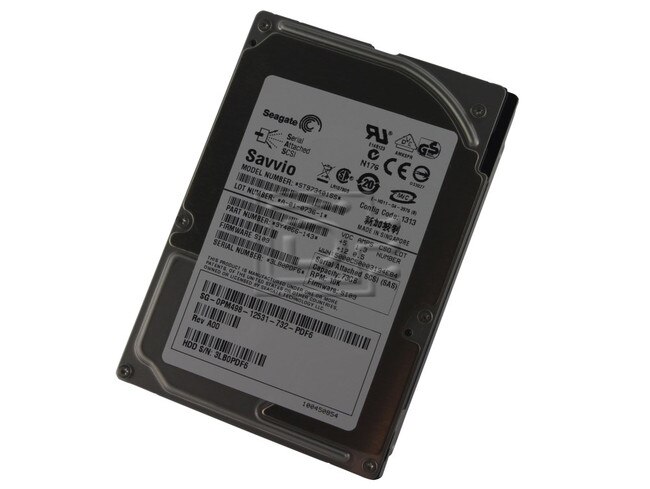

Seagate Savvio 10K.1 73GB 10K 3.0Gbps SFF Serial SCSI / SAS Hard Drive - Refurbished

Savvio is the first 2.5-inch enterprise disc drive, making possible a new class of high I/O, high-density storage solutions. Savvio enables space-constrained data centers to achieve higher IOPs (input/output per second) performance in small form factor system configurations while maintaining the highest levels of reliability.


Alt. MPN: 0PM498 PM498


Compatibility:

All SAS compatible servers including (This list is not all inclusive):

Dell PowerEdge 1950, 1955, 2900, 2950, 6950

Compaq/HP Proliant:
BL20p G4, BL460c, BL465c, BL480c, DL360 G4p, DL360 G5, DL380 G4, DL380 G5, DL385, DL385 G2, DL580 G3, DL580 G4, DL585, DL585 G2, ML350 G5, ML370 G4, ML370 G5, ML570 G3, ML570 G4

Specifications73.4 GB
Model NumberST973401SS
InterfaceSAS 3Gb/s
PHYSICAL
Height (max)14.81 mm  (0.583 inches)
Width (max)70.1 mm  (2.76 inches)
Length (max)111.7 mm  (4.40 inches)
Weight (typical)220 grams  (0.49 pounds)
Cache8 MBytes
Capacity73.4 GB
Guaranteed Sectors143,374,744
Number of pins on the I/O connector7
Total tracks per surface51,052
PERFORMANCE
Spindle Speed10,000 rpm
Average latency3.00 msec
Random read seek time4.70 msec
Random write seek time5.10 msec
RELIABILITY
MTBF1,400,000 hours
Power-on hours8,760 hours
Unrecoverable read errors1 in 10^15
Recoverable read errors10 in 10^12
ENVIRONMENT
Temperature
Ambient operating temperature (min)5 degrees C
Ambient operating temperature (max)55 degrees C
Ambient nonoperating temperature (min)-40 degrees C
Ambient nonoperating temperature (max)70 degrees C
Maximum operating temperature change20 degrees C per hour
Maximum nonoperating temperature change20 degrees C per hour
Maximum operating case temperature60 degrees C
Humidity
Minimum Relative humidity (operating)5 %
Maximum Relative humidity (operating)95 %
Minimum Relative humidity (nonoperating)5 %
Maximum Relative humidity (nonoperating)95 %
Maximum allowable humidity change20 % per hour
Altitude
Operating altitude (min)-305 meters
Operating altitude (min)-1,000 feet
Operating altitude (max)3,048 meters
Operating altitude (max)10,000 feet
Nonoperating altitude (min)-305 meters
Nonoperating altitude (min)-1,000 feet
Nonoperating altitude (max)12,210 meters
Nonoperating altitude (max)40,000 feet
Shock
Vibration
Operating Shock (max)20 Gs
Operating shock 2 msec
Nonoperating Shock (max)275 Gs
Nonoperating shock 2 msec
Operating vibration1.0 Gs
Operating vibration5 to 500 Hz
Nonoperating vibration3.00 Gs
Nonoperating vibration5 to 500 Hz
ACOUSTICS
Acoustics (Idle Volume)3.5 bels

Click here to view the manufacturer's item description/brochure

Alternate MPNs: 0PM498 PM498

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Refurbished

Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
