Seagate Part #/MPN: ST9146803SS
DiscTech Item #: SGT-ST9146803SS-RF-OE-DEL
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 146GB
Speed: 10,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Average Seek Time: 4.2 / 4.6
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 16MB
Compatible Systems: Dell 10th Gen. 2950 / 6950

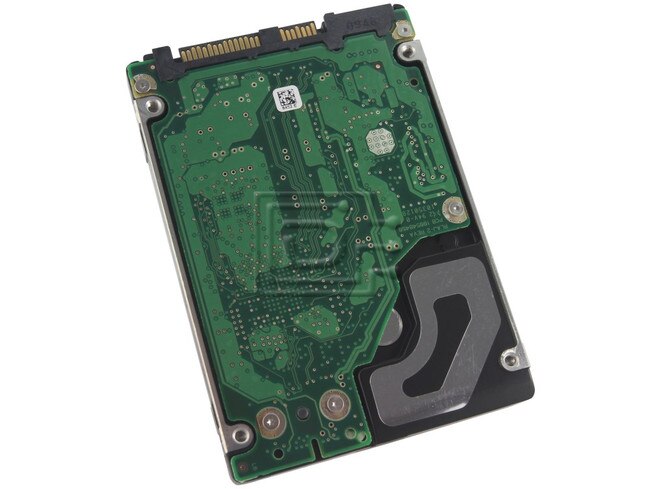

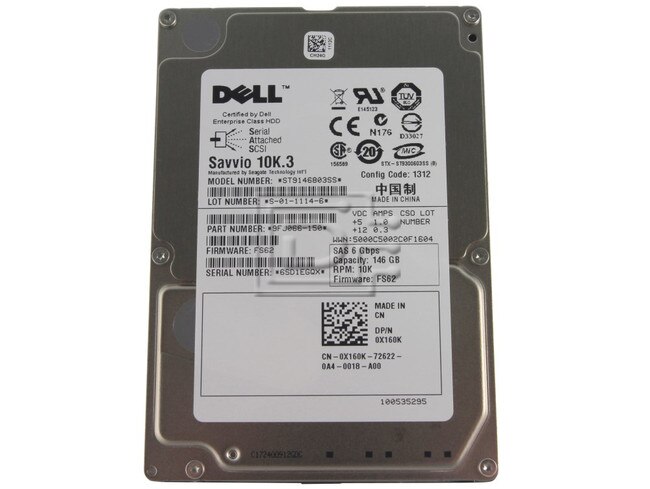

Dell X160K / Seagate Savvio 10K.3 ST9146803SS 146GB 10K 6.0Gbps SFF Serial SCSI / SAS Hard Drive - Refurbished OEM
Dell X160K / The Seagate® Savvio® 10K.3 drive offers the best combination of power efficiency and enterprise performance, with large capacity for mainstream server and external storage applications for the enterprise. The Savvio 10K.3 drive with PowerTrim™ technology uses 75 percent less power than a 3.5-inch 15K drive for the lowest power profile of any Tier 1 mission-critical drive. It is 70 percent smaller than 3.5-inch drives, enabling more system airflow, which results in lower cooling costs. Its Unified Storage™ architecture converges best-of-breed technologies (Serial Attached SCSI, small form factor and Self-Encrypting Drives) to enable powerful yet simple external storage and internal server storage solutions that strengthen business efficiencies while cutting TCO and boosting ROI.
DPN: X160K 0X160K 9FJ066-150
Compatibility:
All SAS compatible servers including (This list is not all inclusive):
Dell PowerEdge 1950, 1955, 2900, 2950, 6950
Compaq/HP Proliant:
BL20p G4, BL460c, BL465c, BL480c, DL360 G4p, DL360 G5, DL380 G4, DL380 G5, DL385, DL385 G2, DL580 G3, DL580 G4, DL585, DL585 G2, ML350 G5, ML370 G4, ML370 G5, ML570 G3, ML570 G4
| Specifications | |
|---|---|
| Model number | ST9146803SS |
| Model Name | Savvio® 10K.3 |
| Formatted Capacity | 146 Gbytes |
| Rotational Speed | 10,000 rpm |
| Default Buffer (cache) Size | 16 Mbytes |
| Performance | |
| External (I/O) Transfer Rate (max) | SAS 2.0 6.0Gb/s |
| Average Seek Time, Read | 4.2 msec typical |
| Average Seek Time, Write | 4.6 msec typical |
| Average Latency | 3 msec |
| Physical | |
| Form Factor | SFF |
| Height | 14.8 mm |
| Width | 70 mm |
| Length | 100.5 mm |
| Weight | 227 grams |
| Electrical | |
| Startup Current (12VDC +/- 5%) | 2.0 amps |
| Startup Current (5VDC +/- 5%) | 0.72 amps |
| Reliability | |
| MTBF (Hours) | 1,600,000 hours |
| Supports S.M.A.R.T. | Yes |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: X160K 0X160K 9FJ066-150
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
