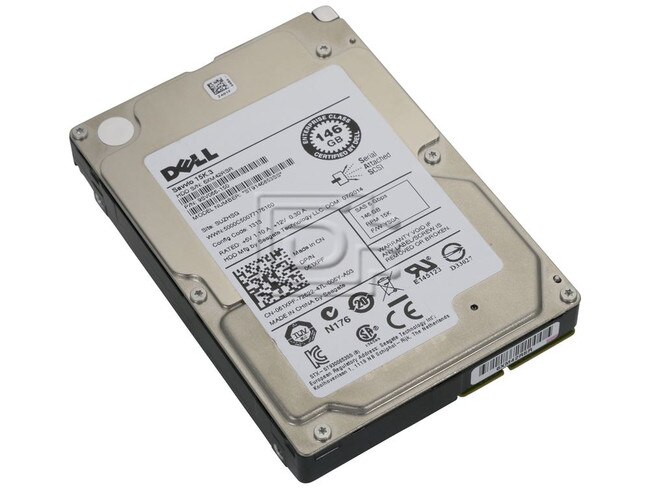

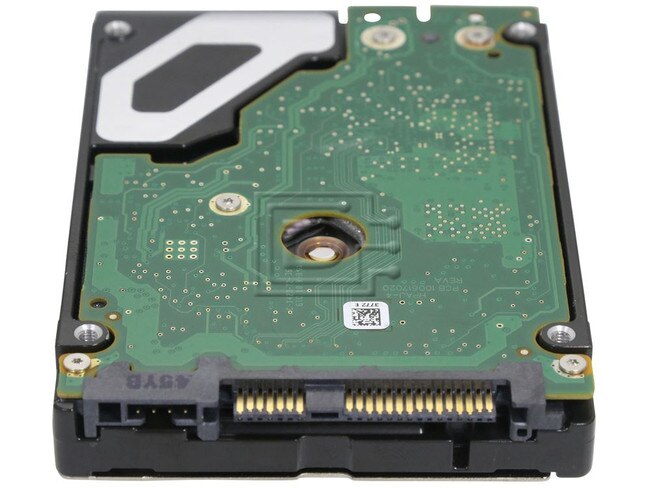

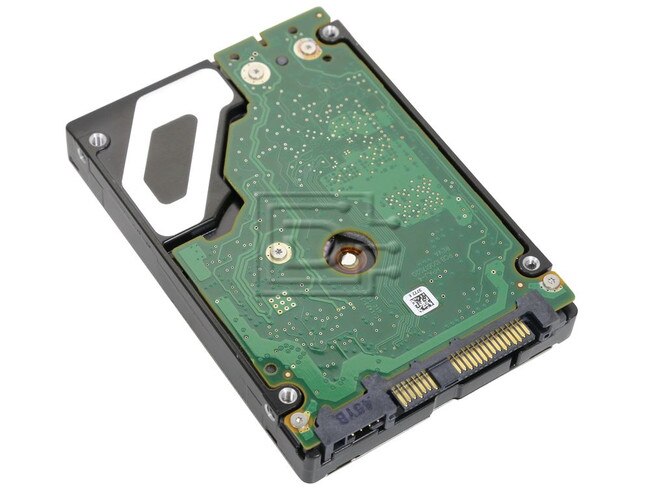

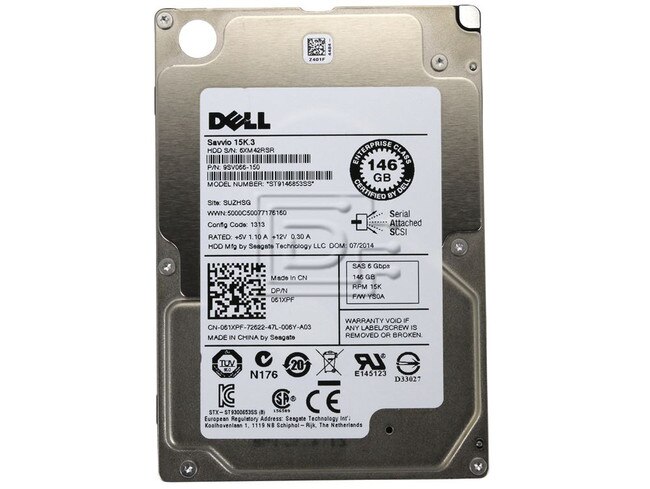

Seagate Savvio ST9146853SS 15K.3 146GB 15K 6Gbps SFF Serial SCSI / SAS Hard Drive

(0) No Reviews Yet

Seagate Part #/MPN: ST9146853SS

DiscTech Item #: SGT-ST9146853SS-BN-OE-DEL


$169.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$169.00

Enterprise Grade

Capacity: 146GB

Speed: 15,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 202

Average Seek Time: 2.7 / 3.1

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 64MB

Seagate Savvio ST9146853SS / 61XPF 15K.3 146GB 15K 6Gbps SFF Serial SCSI / SAS Hard Drive -  Brand New OEM

The Seagate Savvio 15K.3 drive enables OEMs to build solutions that help data centers process more transactions within a given time frame and meet IT service level agreements. This helps companies increase revenue generation, improve customer satisfaction and complete critical business processes faster while keeping data safe. It also provides the performance benefits needed to entice customers to migrate from legacy, 3.5-inch drives to higher-performing 2.5-inch drives.

Key Features and Benefits

    * Doubles Tier 1 data storage capacity (up to 300 GB)

    * Provides up to 21% improvement in sequential data read/write performance over prior generation

    * Delivers up to 3% faster random read and up to 4% faster random write performance vs. prior generation, and up to 10% faster random read and up to 8% faster random write performance vs. legacy 3.5-inch 15K drives1

    * Improves scalability and reliability with 6Gb/s SAS interface support

    * Supports Protection Information (PI) to help ensure data is not changed from what the user created—from the moment the data is created throughout the life of the data2

    * Improves reliability by up to 20% with an annualized failure rate (AFR) of 0.44%

    * Instant Secure Erase™ feature cryptographically erases the data encryption key, thereby helping to protect data should drives be lost, stolen or retired.

    * Eases transition from legacy 3.5-inch, 15K drives to next-generation 2.5-in, 15K drives

    * Unified Storage architecture minimizes system complexity and reduces operating costs.

    * Self-Encrypting Drive (SED) option helps data centers be compliant with corporate and federal data security mandates.3

DPN: 61XPF 061XPF 8WR7C 08WR7C

Alt. PN: 9SV066-002


Compatibility:

All SAS compatible servers including (This list is not all inclusive):



Dell PowerEdge 1900, 1950, 1955, 2900, 2950, 6900, 6950 Servers and MD1120 Storage Arrays.



Compaq/HP Proliant:

BL20p G4, BL460c, BL465c, BL480c, DL360 G4p, DL360 G5, DL380 G4, DL380 G5, DL385, DL385 G2, DL580 G3, DL580 G4, DL585, DL585 G2, ML350 G5, ML370 G4, ML370 G5, ML570 G3, ML570 G4, G5, G6, G7

Specifications
Model number ST9146853SS
Model Name Savvio 15K.3
Formatted Capacity 146 Gbytes
Rotational Speed 15,000 rpm
Default Buffer (cache) Size 64 Mbytes
Guaranteed Sectors 286,749,488
Areal Density (avg)448Gb/in2
Performance
External (I/O) Transfer Rate (max) 600 MBytes/sec
Sustained Transfer Rate202 MBytes/sec
Average Seek Time, Read 2.7 msec typical
Average Seek Time, Write 3.1 msec typical
Average latency2.0 msec typical
Physical
Form Factor(width) 2.5-inch
Form Factor(height) .591-inch
Height 15 mm
Width 70.10 mm
Length 100.45mm
Weight 0.193 kg
Electrical
Avg. Idle Power3.84W
Environmental
Max Operating Shock (2-msec) 40 Gs
Max Nonoperating Shock (2-msec) 300 Gs
Operating Vibration (max) .5 Gs
Nonoperating Vibration (max) 2.4 Gs
Operating Temperature (max) 55 deg C
Operating Temperature (min) 5 deg C
Nonoperating Temperature (max) 70 deg C
Nonoperating Temperature (min) -40 deg C
Reliability
Nonrecoverable Read Errors 1 per 10^16 bits read

Click here to view the manufacturer's item description/brochure

Alternate MPNs: 61XPF 061XPF 8WR7C 08WR7C 9SV066-002

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
