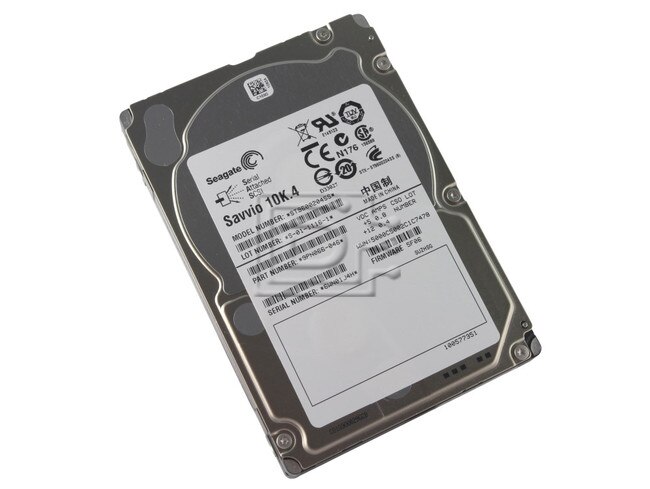

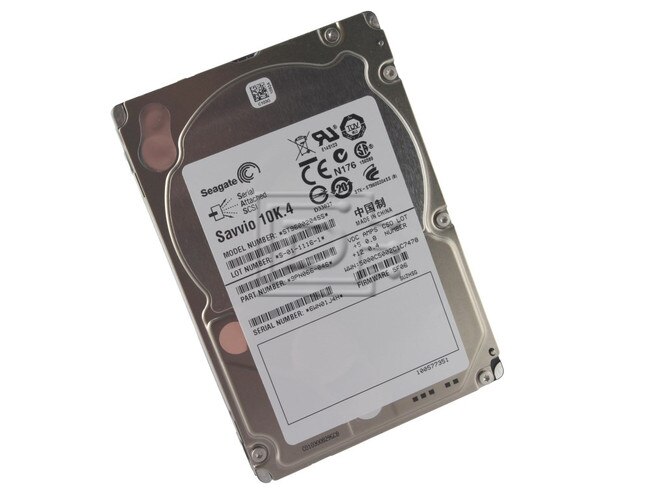

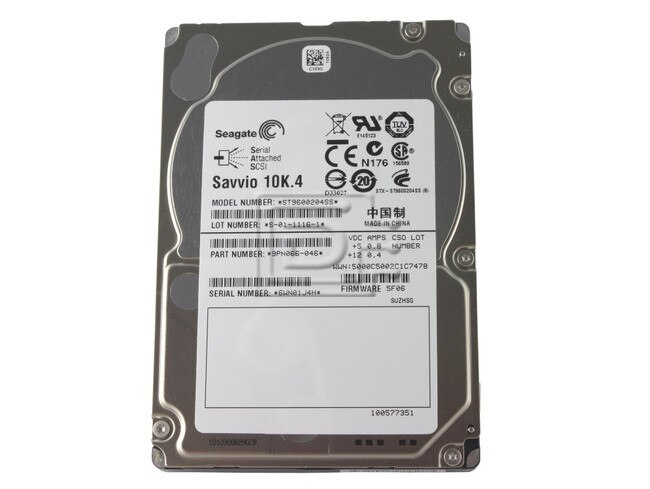

Seagate Savvio ST9600204SS SAS Hard Drive

(0) No Reviews Yet

Seagate Part #/MPN: ST9600204SS

DiscTech Item #: SGT-ST9600204SS-NP-OE


$229.00
$229.00

Enterprise Grade

Capacity: 600GB

Speed: 10,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 75 to 141

Average Seek Time: 3.89 / 4.54

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 16MB

Specifications
Model number ST9600204SS
Model Name Savvio 10K.4
Formatted Capacity 600 Gbytes
Rotational Speed 10,000 rpm
Default Buffer (cache) Size 16 Mbytes
Performance
External (I/O) Transfer Rate (max) 600 MBytes/sec
Sustained Transfer Rate75 - 141 MBytes/sec
Average Seek Time, Read 3.89 msec typical
Average Seek Time, Write 4.54 msec typical
Track-to-Track Seek, Read 0.2 msec typical
Track-to-Track Seek, Write 0.3 msec typical
Average Latency 3 msec
Physical
Form Factor(width) 2.5-inch
Form Factor(height) .583-inch
Height 14.8 mm
Width 70 mm
Length 100.2mm
Weight 0..227 kg
Electrical
Power (amps +12v/+5v).51/.44
Environmental
Max Operating Shock (2-msec) 40 Gs
Max Nonoperating Shock (2-msec) 400 Gs
Operating Vibration (max) .5 Gs
Nonoperating Vibration (max) 3.0 Gs
Operating Temperature (max) 55 deg C
Operating Temperature (min) 5 deg C
Nonoperating Temperature (max) 70 deg C
Nonoperating Temperature (min) -40 deg C
Reliability
Nonrecoverable Read Errors 1 per 10^16 bits read
Supports S.M.A.R.T.Yes

Click here to view the manufacturer's item description/brochure

Alternate MPNs: 9PN066-881

Weight: 1 lb

Warranty: 1 Year DiscTech

New Pull

Condition Levels Explained

The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have a few hours of usage due to system build time etc. Ostensibly however, New Pulls are electronically new items, which may show signs of being physically mounted and unmounted. All handling is performed by trained technicians, taking full ESD precautions.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
