Seagate Part #/MPN: ST9600205SS
DiscTech Item #: SGT-ST9600205SS-FR-1Y
- Factory RefurbishedCondition Levels Explained
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
Product Warranties ExplainedThe product has a manufacturer warranty for the time period specified.
- Warranty:1 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 600GB
Speed: 10,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 168
Average Seek Time: 3.4 / 3.8
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 64MB

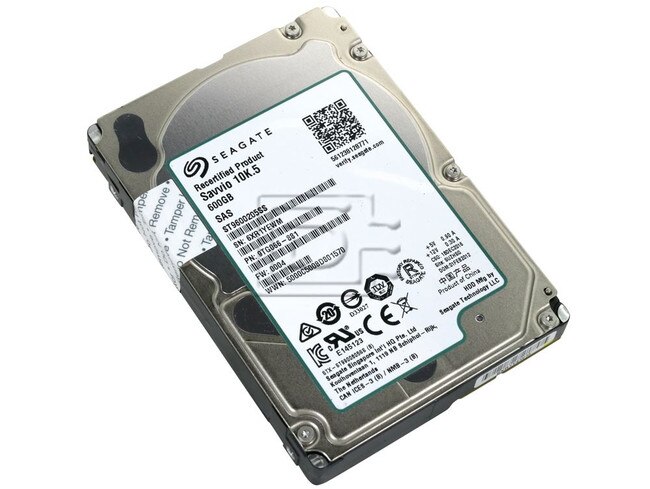

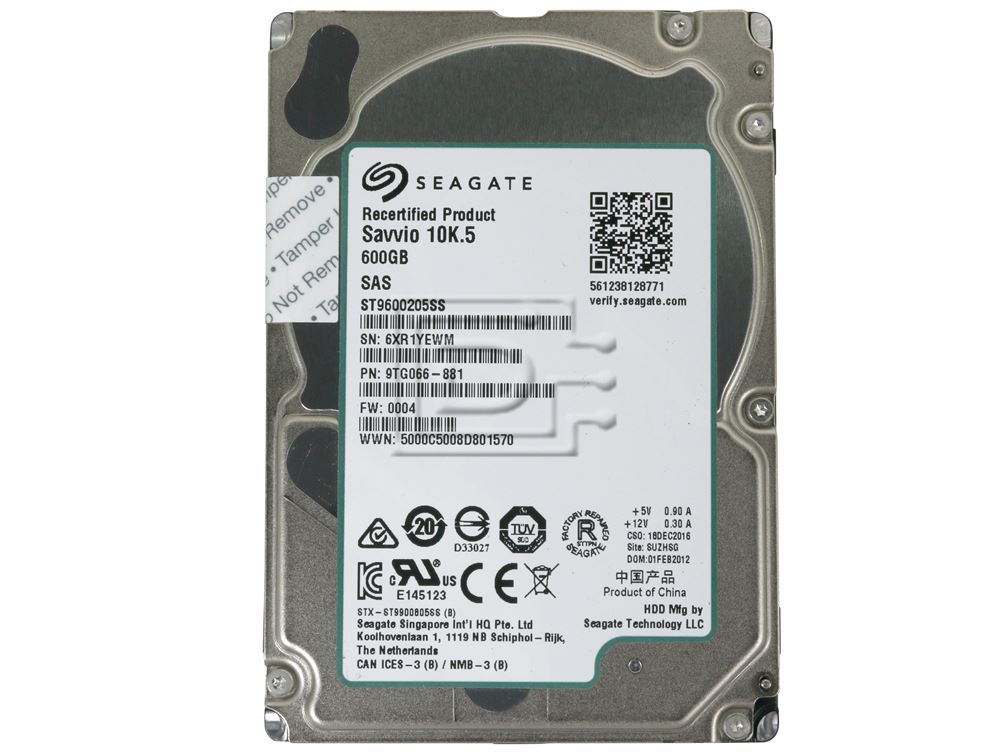

Seagate Savvio 10K.5 ST9600205SS 600GB 10K 6Gbps SFF Serial SCSI / SAS Hard Drive - Factory Recertified
The Seagate® Savvio® 10K.5 hard drive enables OEMs, system builders and data centers to:
- Improve storage efficiency
- Ease capacity, interface and form factor transitions
- Ensure data integrity and protection throughout the storage process even if the device is lost or stolen
Key Features and Benefits
- Delivers the highest-capacity in a 2.5-inch, 10K-RPM hard drive (up to 900GB) to manage more data without increasing the number of drives
- First SFF drive to offer four capacity points on a single platform
- Industry-leading 0.44% AFR for field-proven reliability
- Improves performance for faster data storage and access
- Reduces power consumption and enables green IT initiatives
- PowerChoice™ technology for T10-compliant power management enables IT organizations to tailor systems for performance and power consumption
- Reduces system design, qualification and inventory costs for OEMs
- Enables data centers to better manage hard drive transitions
- Protection Information protects against inadvertent data change¹
- Optional Self-Encrypting Drive (SED) models² help companies be compliant with corporate and federal data security mandates and protect data-at-rest throughout the life of the storage device should the device be lost, stolen, and/or retired
- Seagate Unified Storage architecture reduces system complexity and operating costs by converging disparate interfaces, form factors and security standards
¹ Protection Information (Pl) feature requires Pl-compliant host or controller support.
9TG066-880
Compatibility:
This drive is compatible with any server that accepts small form factor (SFF) SAS hard drives
| Specifications | |
|---|---|
| Model number | ST9600205SS |
| Model Name | Savvio 10K.5 |
| Formatted Capacity | 600 Gbytes |
| Rotational Speed | 10,000 rpm |
| Default Buffer (cache) Size | 64 Mbytes |
| Performance | |
| External (I/O) Transfer Rate (max) | 600 MBytes/sec |
| Sustained Transfer Rate |
|
| Average Seek Time, Read | 3.4 msec typical |
| Average Seek Time, Write | 3.8 msec typical |
| Track-to-Track Seek, Read | 0.2 msec typical |
| Track-to-Track Seek, Write | 0.4 msec typical |
| Average Latency | 3 msec |
| Physical | |
| Form Factor(width) | 2.5-inch |
| Form Factor(height) | .583-inch |
| Height | 15.00 mm |
| Width | 70.10 mm |
| Length | 100.45mm |
| Weight | 0.215 kg |
| Electrical | |
| Power (amps +5v/+12) | 0.46/0.45 |
| Environmental | |
| Max Operating Shock (2-msec) | 40 Gs |
| Max Nonoperating Shock (2-msec) | 400 Gs |
| Operating Vibration (max) | .5 Gs |
| Nonoperating Vibration (max) | 3.0 Gs |
| Operating Temperature (max) | 55 deg C |
| Operating Temperature (min) | 5 deg C |
| Nonoperating Temperature (max) | 70 deg C |
| Nonoperating Temperature (min) | -40 deg C |
| Reliability | |
| Nonrecoverable Read Errors | 1 per 10^16 bits read |
| Supports S.M.A.R.T. | Yes |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 9TG066-880
Weight: 0.5 lb
Warranty: 1 Year Manufacturer
