Silicom PEG4I 4-port Gigabit Ethernet PCI Express Server Adapter

Silicom Part #/MPN: PEG4I

DiscTech Item #: SIL-PEG4I-NP-OE


$395.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$395.00

Interface Types: Ethernet RJ45

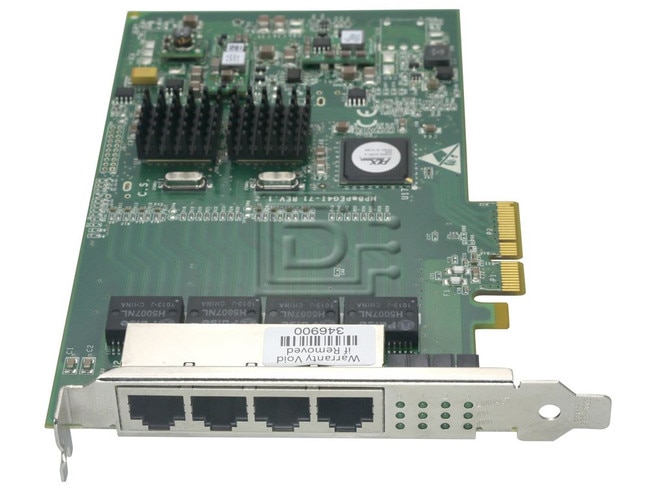

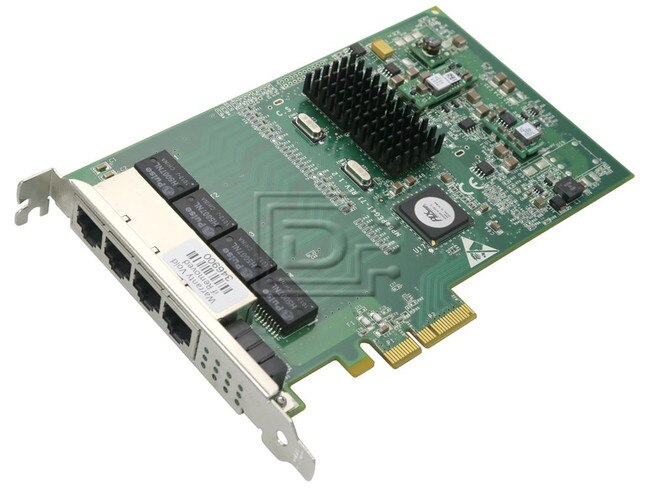

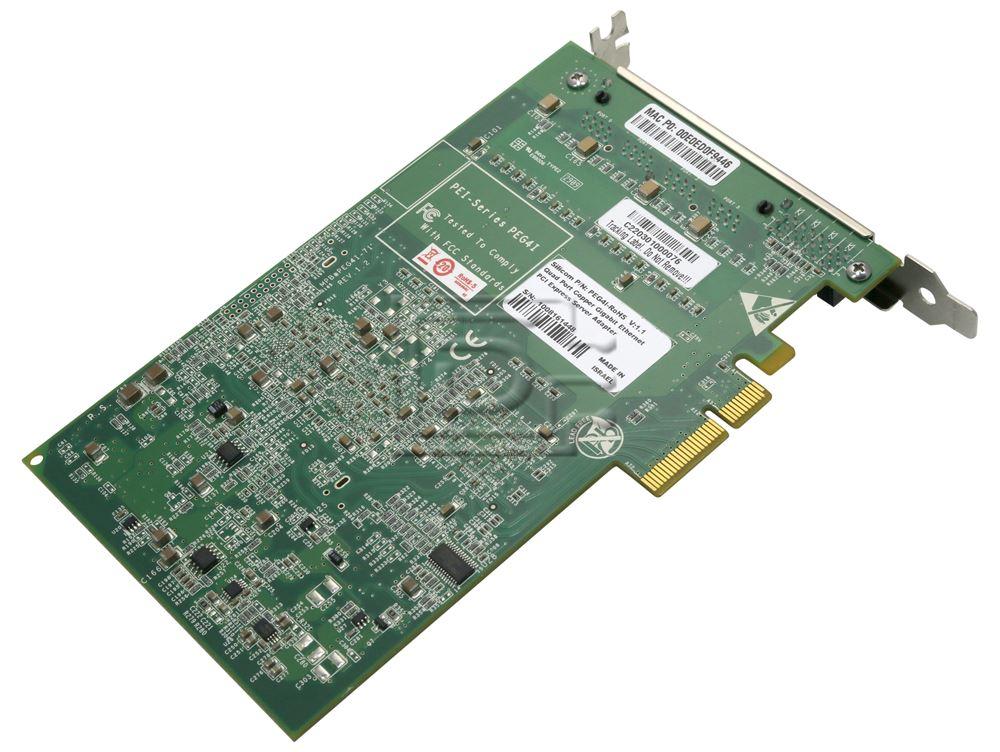

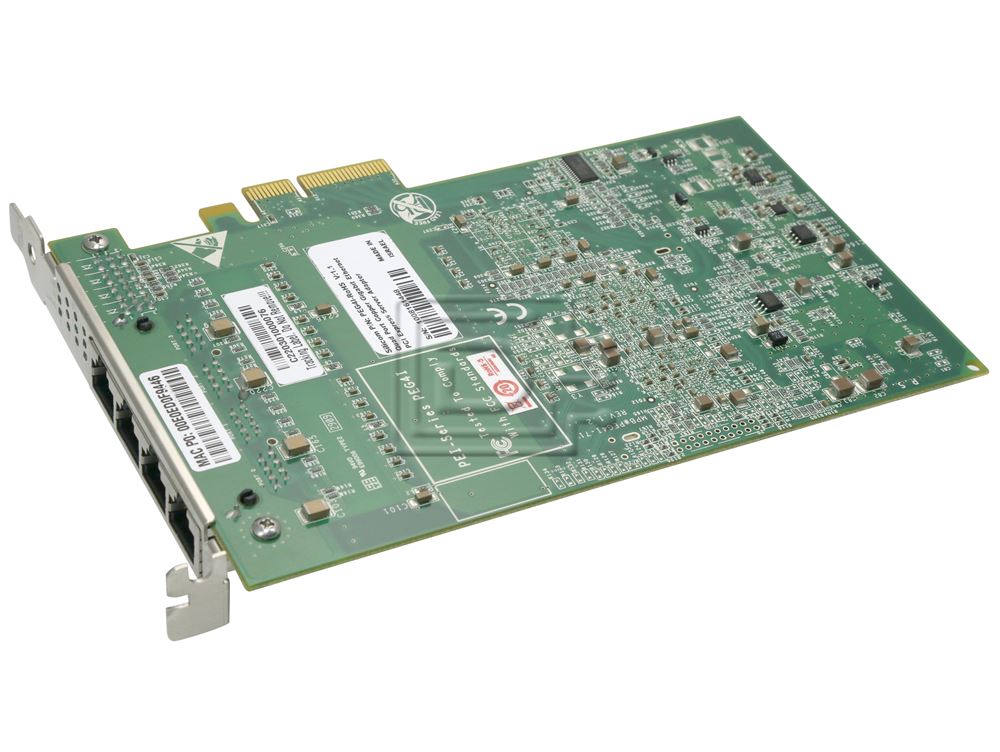

Silicom PEG4I 4-port Copper Gigabit Ethernet PCI Express Server Adapter - New Pull

Silicom’s Gigabit Ethernet PCI Express Server adapters are PCI-Express Server Adapters cards that contain Multiple / Single Gigabit ports/ on a PCI-Express adapter.
Silicom’s Gigabit Ethernet PCI Express Server adapters are designed for Servers and high-end appliances. The performance is optimized so that system I/O is not the bottleneck in high-performance networking applications.
Silicom’s Gigabit Ethernet PCI Express Server adapters enable fault-tolerant via teaming. Traffic from the failed port is routed through other members of the team.
Silicom’s Gigabit Ethernet PCI-Express Server adapters have an integrated hardware acceleration that performs TCP/UDP/IP checksum offload and TCP segmentation. The host processing offloads accelerators frees CPU for application processing.
Silicom’s Gigabit Ethernet PCI-Express Server adapters are the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.

Copper Gigabit Ethernet (1000Base-T) Adapters:

• Independently copper Gigabit Ethernet channels support six, four, two and one Gigabit Ethernet (1000Base-T), Fast Ethernet (100Base-Tx) and Ethernet (10Base-T).
• Triple speed 1000Mbps (1000Base-T), 100 Mbps (100Base-Tx) and 10 Mbps (100Base-T) operation.
• Nway auto negotiation automatic sensing and switching between 1Gbps full duplex and 100 / 10 Mbps operations Simplex or Full Duplex.
• RJ-45 female connectors.


Common Key features:


• Host Interface:
  • Host Interface standard support:
  • PCI-Express Base Specification Revision 1.0a.
• High performance, reliability, and low power use in advanced Intel integrated MAC + PHY / SERDES chip Controllers.
• Ultra deep, packet buffer per channel lowers CPU utilization, avoids PCI-Express congestion
• Hardware acceleration that can offload tasks from the host processor. The Controllers can offload TCP/UDP/IP checksum calculations and TCP segmentation.
• Server class reliability, availability and performance features:
  • Link Aggregation and Load Balancing
    Switch dependent: 802.3ad (LACP), Generic Trunking ( GEC / FEC)
    • Switch and NIC Independent.
    • Failover
• Priority queuing – 802.1p layer 2 priority encoding.
• Virtual LANs –802.1q VLAN tagging.
• Jumbo Frame (16KB).
• 802.x flow control.
• Statistics for SNMP MIB II, Ethernet like MIB, and Ethernet MIB (802.3z, Clause 30)
• LEDs indicators for link/Activity/Speed status.

Compatibility:

This adapter is compatible with any server having a vacant PCI-X slot.

Copper Gigabit Ethernet Technical Specifications - (1000Baes-T) Adapters:

IEEE Standard / Network topology:

Gigabit Ethernet, 1000Base-T
Fast Ethernet, 100Base-TX
Ethernet, 10Base-T

Full duplex / SimplexSupport both Simplex & Full duplex operation in all operating speeds
Auto negotiation:Auto-negotiation between Full duplex and simplex operations and between 10Mb/s 100Mb/s speeds and duplex 1000Mb/s.
Data Transfer Rate:1000 Mbit/s, 100 Mbit/s and 10 Mbits/sec in simplex mode per port.
2000Mbit/s 200 and 20 Mbit/s in full duplex mode per port.
Cables and Operating distance:10Base-T Category 3, 4, or 5 maximum 50m *
100Base-Tx Category 5 maximum 50m *
1000Base-T Category 5E maximum 50m *
*Theoretical Distance – Defined as half a distance as stated by the IEEE 802.3 standard
















Operating Systems Support (all adapters):

Operating system support:

Windows.NET
Windows 2000
Windows NT
Windows98 / WindowsXP
Netware
Linux
FreeBSD
Unix:
  SCO Open Server
  UnixWare / OpenUnix 8
Solaris














PXG4U


PXG4U: General Technical Specifications

Interface Standard:

PCI v2.2 32/64 bit, 33/66Mhz
PCI-X v1.0 32/64-bit, 66/100/133MHz

Board Size:PCI Short add in card 168mm x 107mm (6.6”x4.2”) detailed information: Appendix A.2
PCI Card Type:Universal 64 bit Card
PCI Connector: Universal 64 bit
PCI Voltage: +5V (Min 4.75V, Max, 5.25V) and
+3.3V (Min 3.0V, Max. 3.6V)
Holder: Metal Bracket
Weight: 140 gram (4.94 oz)
Power Consumption:0.4A at 5V and 2A at 3.3V: Typical, all ports operate at 1000Mbit/s.
0.4A at 5V and 1A at 3.3V: Typical, all ports operate at 100Mbit/s.
0.4A at 5V and 1A at 3.3V: Typical, all ports operate at 10Mbit/s.
0.3A at 5V and 0.9A at 3.3V: Typical, No Link - operate at 10Mbit/s
Operating Temperature:0°C-50°C (32°F-122°F)
Storage Temperature:-20°C-65°C (-4°F-149°F)
EMC Certifications:FCC Part 15, Subpart B Class B
Conducted Emissions
Radiated Emissions
CE EN 55022: 1998 Class B
Conducted Emissions
Radiated Emissions
CE EN 55024: 1998
Immunity for ITE Amendment A1: 2001
CE EN 61000-3-2 2000
Harmonic Current Emissions
CE EN 61000 3-3
Voltage Fluctuations and Flicker
CE IEC 6100-4-2: 1995
ESD Air Discharge 8kV. Contact Discharge 4kV.
CE IEC 6100-4-3:1995
Radiated Immunity (80-1000Mhz), 3V/m 80% A.M. by 1kHz
CE IEC 6100-4-4:1995
EFT/B: Immunity to electrical fast transients 1kV Power
Leads, 0.5Kv Signals Leads
CE IEC 6100-4-5:1995
Immunity to conductive surges COM Mode; 2kV,
Dif. Mode 1kV
CE IEC 6100-4-6:1996
Conducted immunity (0.15-80 MHz) 3VRMS 80% A.M.
By 1kHz
CE IEC 6100-4-11:1994
Voltage Dips and Short Interruptions
V reduc >95%, 30% >95% Duration 0.5per, 25per, 250per
CISPR 22; 1997
Amendment A1: 2000
Amendment A2: 2002
VCCI: 2004, Class B
MTBF*:114 (Years)
*According to Telcordia SR-332 Issue 1
Environmental condition – GB (Ground, Fixed, Controlled). Ambient temperature - 25?°C. Temperature rise of 10?C above the system ambient temperature was assumed for the cards components.























































PXG4U: LED / Connector Specifications

LEDs:

(3) LEDs per port
Link Activity: Turns on any link speed, blinks on activity (green).
100Mbits/s: Turns on 100 Mbit/s link (green).
1000Mbit/s: Turns on 1000 Mbit/s link (green).

LEDs locationLEDs are located on the PCB, visible via holes in the metal bracket holder
Connectors:(4) Shielded RJ-45









Order Information:

P/N

Description

Note

PXG4U-RoHS

Quad Port Copper Gigabit Ethernet PCI-X Server Adapter

RoHS compliant

PXG4U

Quad Port Copper Gigabit Ethernet PCI-X Server Adapter
















Click here to view the manufacturer's item description/brochure

Weight: 2 lb

Warranty: 1 Year DiscTech

New Pull

Condition Levels Explained

The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
