SUN MICROSYSTEMS Part #/MPN: 540-6343
DiscTech Item #: SUN-540-6343-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:12Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 300GB
Speed: 10,000RPM
Interface Types: Fibre Channel - Internal - Arbitrated Loop ASA II
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 132
Average Seek Time: 4.5 / 5.0
Electrical Interface: FC-AL - 2Gbps
On-Board Cache: 8MB

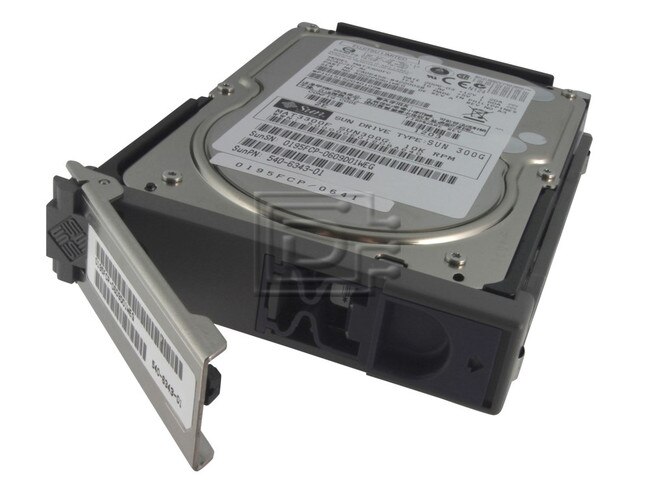

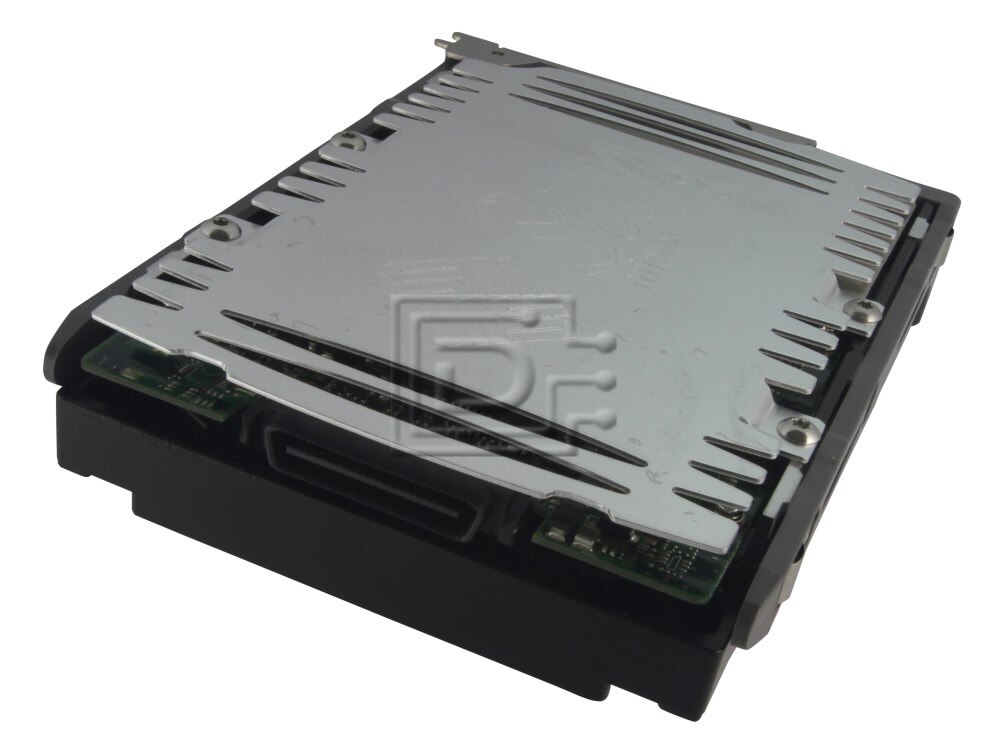

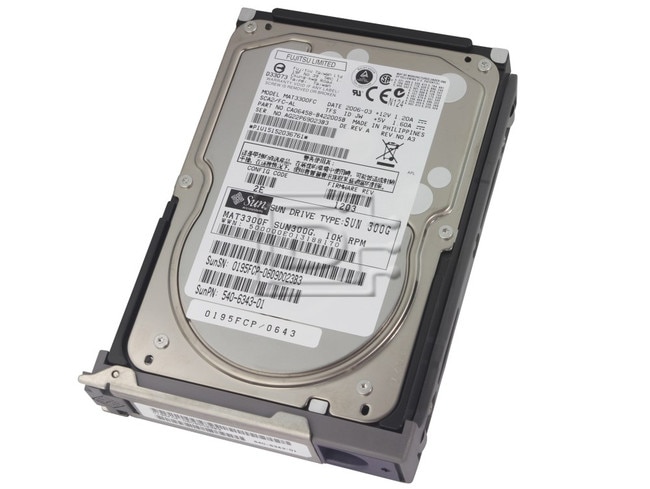

Sun 300GB 10K 2Gbps 40pin FC-AL Fibre Channel Hard Drive 540-6343 - Brand New
* Large capacity: Massive capacity has been achieved through the development of head, media, signal processing technology, servo technology*1 as an element technology allowing up to to 11Gb/cm2 (75Gb/in 2) high density and up to 75GB*2 per disk, 300GB*2 per drive (4 disks) high capacity.
* High Performance: Read Ahead Cache *3 and Write Reordering Cache *4 enable the drives to execute read and write operation in high speed.
* High Reliability: On the fly ECC (Error Correction Code) and S.M.A.R.T *5 function enable the drives to improve the data reliability.
* Silence: FDB spindle motor is incorporated for silent operation
Compatible with: Sun StorEdge Fiber Fibre Channel Arrays.
Sun Part #: 540-6343 540-6343-01 390-0182
Compatibility:
Compatible with: Sun StorEdge Fiber Fibre arrays.
Model | MAT3073 NC/NP/FC | MAT3147 NC/NP/FC | MAT3300 NC/NP/FC | ||
---|---|---|---|---|---|
Functional Specifications | |||||
Storage Capacity (formatted) | 73.5 GB | 147.0 GB | 300.0 GB | ||
Disks | 1 | 3 | 4 | ||
Heads (read/write) | 2 | 5 | 8 | ||
Bytes/Sector | 512 | ||||
Seek Time | Track to track | Read: 0.2 ms (typ) / Write: 0.4 ms (typ) | |||
Average | Read: 4.5 ms (typ) / Write: 5.0 ms (typ) | ||||
Full track | Read: 10.0 ms (typ) / Write: 11.0 ms (typ) | ||||
Average Latency | 2.99 ms | ||||
Rotational Speed | 10,025 RPM | ||||
Areal Density | 75 Gbits/sq. in. (max.) | ||||
Data Transfer Rate | To/from media | 132 MB/s (max.) | |||
To/from host | SCSI: 320 MB/s, FC: 2 Gb/s | ||||
Recording Code | 32/34 MEEPRML | ||||
Interface | SCA-2 (NC Series), 68Pin Wide (NP Series), FC-AL | ||||
Head Positioning Method | Rotary VCM | ||||
Start Time | 30 s (typ) | ||||
Stop Time | 30 s (typ) | ||||
Buffer Size | 8 MB | ||||
Physical Specifications | |||||
Power Requirements | Voltage | 5 V ± 5%, 12 V ± 5% | |||
Spin-up | 12V ± 5% @ 2.5A (peak) 3.0 A (peak < 100 us) 5V ± 5% @ 0.7A | ||||
Idle (typ.) | SCSI | 9.5 W | |||
FC | 10.5 W | ||||
Dimensions (HxWxD) | 25.4mm x 101.6mm x 146.0mm | ||||
Weight | 750g | ||||
Ambient Temperature | Operating | 5°C to 55°C (DE base 60°C max) | |||
Non-operating | -40°C to 70°C | ||||
Gradient | 15°C/H max | ||||
Relative Humidity | Operating | 5% to 95% (non-condensing) | |||
Non-operating | 5% to 95% (non-condensing) | ||||
Max. wet bulb | 29°C (operating) | ||||
Vibration | Operating | 0.6 mm (5 to 20 Hz) / 1.0 G (20 to 300 Hz) | |||
Non-operating | 3.1 mm (5 to 20 Hz) / 5.0 G (20 to 300 Hz) | ||||
Shock | Operating | 65 G max. (2 ms) | |||
Non-operating | 225 G max. (2 ms) | ||||
Altitude (operation) | Operating | 3,048 m (max.) | |||
Non-operating | 12,192 m (max.) | ||||
Acoustics Noise (idle sound power) (typ.) | 3.4 bels (ready) | ||||
Reliability Specifications | |||||
MTBF | 1,200,000 hours | ||||
Component Life | 5 years | ||||
Error Rates | Seek errors | 10 per 108 seeks | |||
Unrecoverable errors | 1 per 1015 bits read | ||||
Limited Warranty | 5 years (from date of purchase). Replacement Program available to certain purchasers. |
Alternate MPNs: 540-6343-01 390-0182
Weight: 2 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
