Synology RackStation RS3617RPXS NAS Server

Synology Part #/MPN: RS3617RPXS

DiscTech Item #: SYN-RS3617RPXS-BN-5Y


$3,499.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$3,499.00

Interface Types: SATA, USB 3.0 3.1 3.2, Ethernet RJ45

Electrical Interface: Ethernet Gigabit - 1Gbps

Bays/Ports/Slots: 12

Wattage/VA: 400W

Voltage: 110-240V Multi

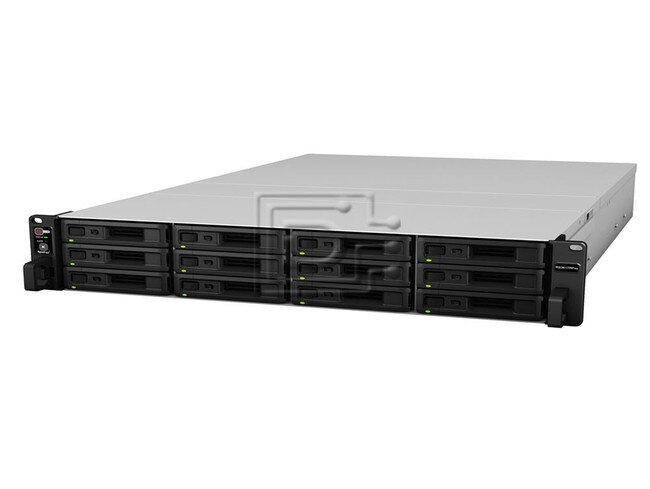

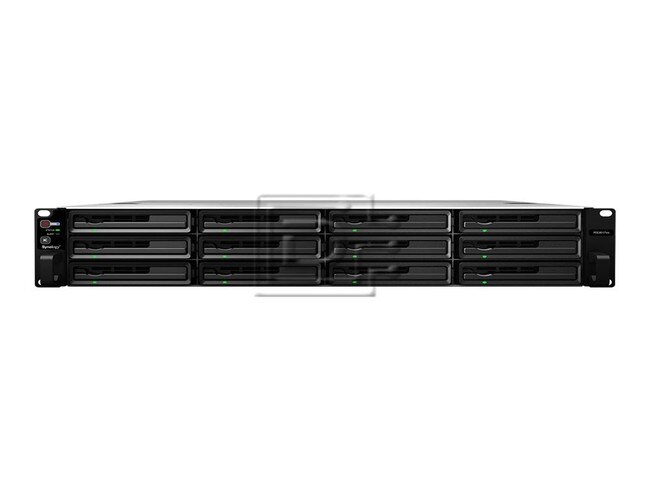

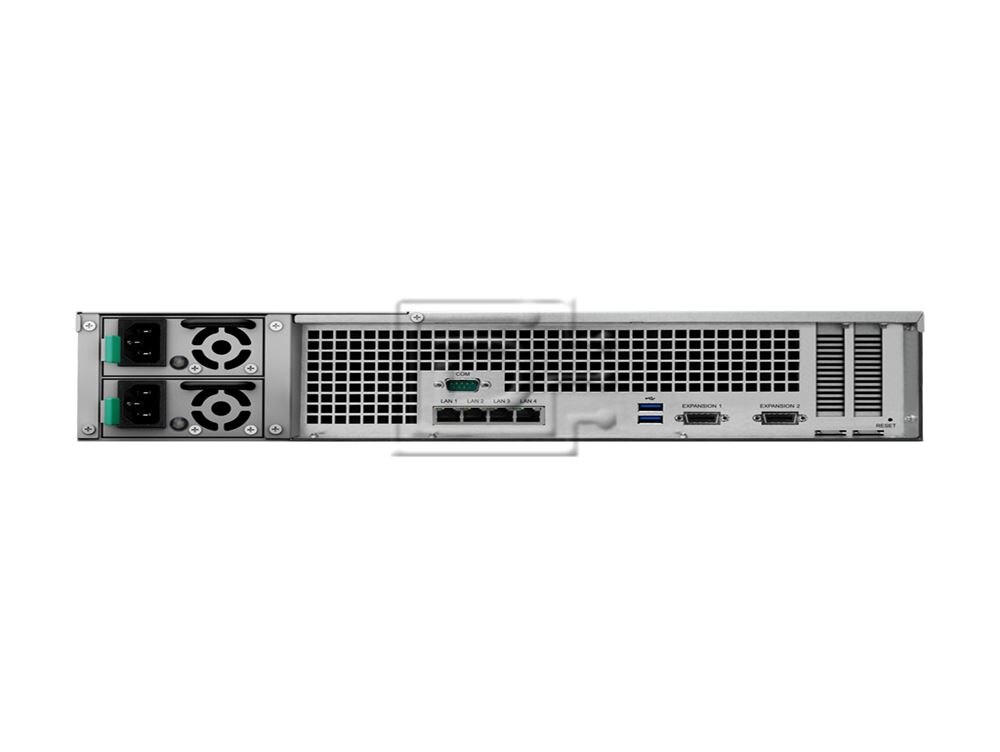

Synology RackStation RS3617RPxs 12-bay SATA Quad Core Redundant NAS Server - Brand New

Synology RackStation RS3617RPxs Redundant Network Attached Storage Server includes...

  • 2x USB 3.0 ports
  • 2x Ethernet RJ45 1Gb LAN ports
  • Quad Core 2.4 (base) / 2.7 (turbo) GHz
  • 12 drive bays, expandable to a maximum of 36 bays when paired with an expansion unit
  • 8GB DDR4 ECC Ram, expandable up to 64GB (16 GB X 4)
  • accepts 3.5" and 2.5" SATA hard drives and 2.5" SATA solid state drives.

RackStation RS3617RPxs
Reliable storage solution providing uninterrupted services for large-scale businesses
Designed for businesses seeking large data storage capacity, RS3617RPxs is a high-performance, 12-bay rackmount NAS equipped with redundant power supplies, ensuring business continuity. Organizations can integrate seamlessly with virtualization solutions including VMware, Citrix, Hyper-V, and OpenStack Cinder

High-performance NAS server
RS3617RPxs delivers stunning performance with over 3,829 MB/s sequential throughput and 433,873 IOPS under a RAID 5 configuration1 with 10GbE Link Aggregation. Equipped with 8GB DDR4 ECC RAM (upgradeable to 64GB), RS3617RPxs ensures data accuracy when handling high-value data and mission-critical tasks across large-scale businesses.

Scale on demand
As your data storage needs grow, RS3617RPxs can be connected to one or two dedicated RX1217/RX1217RP expansion units2, allowing you to expand storage capacity up to 36 drives3 without disrupting service. The high-bandwidth cable ensures speedy data transmission between the main server and expansion unit.

10Gbe network capability
In addition to the four built-in Gigabit ports, RS3617RPxs comes with two PCIe 3.0 x8 slots that allows for the installation of two 10GbE Network Interface Cards (NIC), maximizing bandwidth and meeting high performance requirements for data-intensive applications.

Reliable redundancy mechanisms
RS3617RPxs comes with comprehensive redundancy mechanisms to ensure business continuity. Built-in four LAN ports with failover provides reliable redundancy in the event of unexpected network failure. The high reliability system design, including fanless CPU heat-sink and passive cooling technologies, prevents a single point of failure. Other features such as redundant power supplies, system fans, and network ports with failover support ensure continual service uptime.

Enhanced encryption performance
RS3617RPxs is equipped with an encryption engine which offloads encryption calculation tasks from the main CPU, thus allowing it to perform other important tasks. In addition, Advanced Encryption Standard (AES) on shared folders with hardware acceleration ensures security without compromising access performance, providing over 2,916MB/s in reading.

SSD cache technology
RS3617RPxs enables the combination of hard drives and read/write-optimized SSD cache, boosting throughput efficiently while minimizing cost per gigabyte. With full SSD cache reading and writing support, RS3617RPxs offers a significant reduction in I/O latency without crippling your budget. With only a small upfront investment, businesses can benefit from significant server performance enhancement.

Award winning OS – DiskStation Manager
Synology DiskStation Manager (DSM) is a sleek, browser-based operating system running on every DiskStation and RackStation, which makes managing your Synology NAS a breeze. Featuring an intuitive user interface, DSM makes accessing and sharing your data smarter and simpler. Synology's Package Center lets you download and install useful add-on packages designed specifically for individual or business needs, meaning you can enjoy more entertainment in your life or better productivity at work.

Fit into business environments easily
With the support of Windows AD, LDAP, and Domain Trust, RS3617RPxs enables seamless account integration. The User Home feature can automatically create a "home" folder for every user account to minimize the administrator's effort in repeatedly creating "home" folders for all accounts. Windows ACL support on RS3617RPxs allows IT administrators to fine tune access controls and set up privileges to files and folders on RS3617RPxs through the familiar Windows user interface. With compatibility for major protocols, RS3617RPxs can eliminate server configuration overhead and enhance IT administrators’ efficiency.

Next-generation data protection and integrity
When dealing with large-scale data storage, businesses require a solution that offers reliable backup and prevents file corruption. With support for the next-generation Btrfs file system, RS3617RPxs ensures information is stored with a high level of data integrity, while providing flexible and efficient data protection tools.

  • Fast and efficient snapshots - Snapshots preserve the history of a shared folder allowing you to save up to 1024 backup copies for point-in-time recovery. Snapshots can be automatically captured up to every 5 minutes, without noticeably impacting system performance.
  • Metadata mirroring and survivability - Btrfs file system stores two copies of critical metadata on a volume, improving the availability and ensuring the integrity of your file system.
  • Corruption detection and correction - Btrfs generates checksums for data and metadata, and then verifies the checksums during each read process to ensure the integrity of the filesystem and files. If the file system discovers a mismatch, metadata will be repaired to keep file system consistent. In the meantime, corrupted files will be reported and logged.
  • Customizable quotas for shared folders - With Btrfs, you can specify a storage limit for each shared folder, making it possible to precisely control space consumption when multiple teams or departments save files on the same Synology NAS server.

Seamless storage solution for virtualization environments
RS3617RPxs provides seamless storage solutions for virtualization environments, including VMware, Citrix, Hyper-V, and OpenStack Cinder. With VMware vSphere 6 and VAAI integration certified, RS3617RPxs helps offload specific storage operations and optimizes computation power for unparalleled performance and efficiency in VMware environments. As the centralized storage of a virtual environment, RS3617RPxs enables virtual machine migration, allowing movement from server to server whilst eliminating service downtime and disruption to user. Windows Offloaded Data Transfer (ODX) and Synology Advanced LUN support greatly improves the efficiency on massive data transfer and migration. With OpenStack Cinder support, RS3617RPxs can be used as a block-based storage component for servers complying with the Cinder API.

  • CiTRix ready
  • vmware READY
  • Windows Server 2012 Certified
  • Windows Server 2012 R2 Certified

Unified storage system
RS3617RPxs enables businesses to cost-effectively manage multi-protocol data by integrating file-level (NAS) and block-level (SAN) storage into one unified storage system. Files can be shared across Windows®, Mac®, and Linux® platforms seamlessly with comprehensive network protocol support (CIFS/SMB, AFP, and NFS). RS3617RPxs provides a cost-effective iSCSI solution, allowing large scale businesses to consolidate storage into data center storage arrays. With thin provisioning available for file-level iSCSI LUN, you can maximize storage utilization by oversubscribing provisions and grow storage space as needed.

Protection with LUN backup, snapshot, and clone
RS3617RPxs enhances the ease of moving and copying data in a virtualized environment with the features LUN Snapshot, clone, and replication. Synology’s LUN Clone and LUN Snapshot only consume 1/1000 of the original size highly optimizing storage usage. In addition, Synology's LUN Snapshot lets you create up 256 snapshots per LUN using point-in-time technology without having any impact on system performance. With better support to servers under VMware vSphere or Windows environment, IT managers can expect guaranteed VM status and data consistency through application-consistent snapshots.

Synology CMS (Central Management System)
For enterprises with more than one Synology NAS server, CMS offers the flexibility and convenience for IT administrators to manage all of them from a single point of entry. Through a simple interface, you can obtain a clear overview on resource consumption and logs, helping you identify any issue right away. With group policies, CMS can do much more for your daily tasks. Once a NAS joins a group, it will automatically adopt its rules and behave as intended, without extra configuration.

Increase business productivity with cloud solutions
With comprehensive cloud solutions, RS3617RPxs lets you create your own private cloud easily. Cloud Station is the perfect package to sync files across multiple devices. Files can be edited in offline mode and later synced to Cloud Station, which keeps up to 32 historical versions, allowing you to restore a file back to previous version or recover deleted files. With the mobile app DS cloud, any change made to a file is automatically synced to your smartphones and tablets. For distributed enterprises, Synology's 2-way sync between different DiskStations ensures employees at different locations share the same information in real-time. IT administrators can handpick individual folders that they want to sync to different devices, manually or automatically based on file format and size. Folders synced by Cloud Station can be encrypted on DSM — no one will be able to access its content without your private key.

  • Cloud Station ShareSync
  • Cloud Station Drive
  • Cloud Station Server
  • DS Cloud

Ensuring business continuity & reliability
Uninterrupted availability is a critical goal for all businesses. RS3617RPxs offers Synology High Availability (SHA) technology which combines an active and passive server into one cluster, the former always mirrored to the latter. Shared Folder Sync can replicate data in real-time to another Synology NAS at a remote location, giving your business the Recovery Time Objective (RTO) for prompt disaster recovery. With multiple LAN ports, RS3617RPxs also ensures redundancy in the event of unexpected network failure.

Secure your data
RS3617RPxs offers advanced security measures to protect you from potential security holes. Security Advisor analyzes system settings, password strength, network preferences and removes any possible malware. AppArmor blocks malicious programs from accessing unauthorized system resources. You can also customize the trust level in Package Center to avoid installing packages from untrusted sources, safeguarding your NAS from unknown or tampered files. In addition, RS3617RPxs provides other security add-ons, such as AES encryption, 2-Step verification, IP block & allow list, Antivirus packages, firewall, and DoS attack prevention.

  • Network security
  • Antivirus
  • AES 256-bit encryption
  • 2-Step verification
  • Trust level


SPECIFICATIONS
Model NumberRS3617RPXS
HARDWARE SPECIFICATIONS
CPU ModelIntel Xeon D-1521
CPU Architecture64-bit
CPU FrequencyQuad Core 2.4 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine (AES-NI)Yes
MEMORY
System Memory8 GB DDR4 ECC UDIMM
Memory Module Pre-installed8 GB x 1
Total Memory Slots4
Memory Expandable up to64 GB (16 GB x 4)
STORAGE
Drive Bay(s)12
Compatible Drive Type3.5in SATA HDD
2.5in SATA HDD
2.5in SATA SSD
Maximum Internal Raw Capacity120 TB (10 TB HDD x 12) (Capacity may vary by RAID types)
Maximum Raw Capacity with Expansion Units360 TB (10 TB HDD x 36) (Capacity may vary by RAID types)
Maximum Single Volume Size
  • 200 TB (32GB RM required, for RAID 5 or RAID 6 groups only)
  • 108 TB
  • Hot Swappable DriveYes
    FILE SYSTEM
    Internal DrivesBtrfs
    EXT4
    External DrivesBtrfs
    EXT4
    EXT3
    FAT
    NTFS
    HFS+
    exFAT (purchased separately)
    APPEARANCE
    Size (Height x Width x Depth)88 mm x 430.5 mm x 692 mm
    Weight14.5 kg
    OTHERS
    RJ-45 1GbE LAN Port4 (with Link Aggregation / Failover support)
    Wake on LAN/WANYes
    PCIe Slot for Network Card2 x Gen3 x8 slots (x8 link)
    System Fan80 mm x 80 mm x 4 pcs
    Fan Speed ModeFull-Speed Mode
    Cool Mode
    Quiet Mode
    Easy Replacement System FanYes
    Wireless Support (dongle)Yes
    Noise Level50.2 dB(A)
    Power RecoveryYes
    Scheduled Power On/OffYes
    Power Supply Unit / Adapter2 x 500W
    AC Input Power Voltage100V to 240V AC
    Power Frequency50/60 HZ, Single Phase
    Power Consumption116.42 W (Access)
    65.49 W (HDD Hibernation)
    British Thermal Unit397.24 BTU/hr (Access)
    223.46 BTU/hr (HDD Hibernation)
    Redundant Power SupplyYes
    ENVIRONMENT TEMPERATURE
    Operating Temperature5°C to 35°C
    (40°F to 95°F)
    Storage Temperature-20°C to 60°C
    (-5°F to 140°F)
    Relative Humidity5% to 95% RH
    CertificationFCC Class A
    CE Class A
    BSMI Class A

    Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Weight: 50 lb

    Warranty: 5 Year Manufacturer

    Brand New

    Condition Levels Explained

    The product is brand new.

    5 Year Manufacturer Warranty

    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.
