Toshiba Part #/MPN: AL13SEB300
DiscTech Item #: TOS-AL13SEB300-BN-OE-DEL
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 300GB
Speed: 10,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Average Seek Time: 3.7 / 4.1
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 64MB
Compatible Systems: Dell 10th Gen. 2950 / 6950

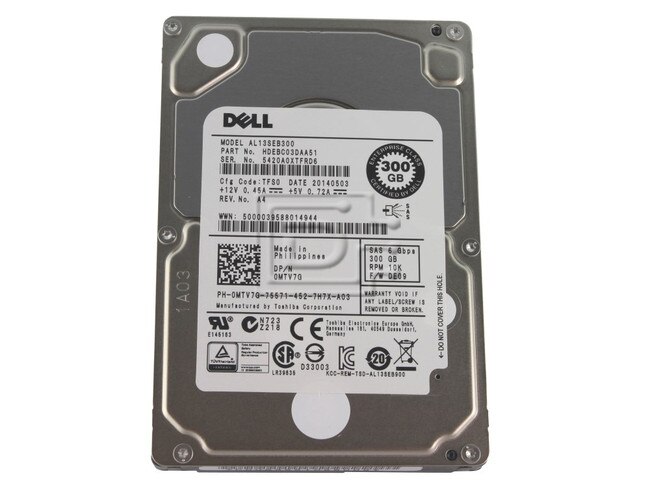

Toshiba AL13SEB300 300GB 10K RPM 6Gbps SFF Serial SCSI / SAS Hard Drive - Brand New OEM
The new generation Enterprise series of hard disk drives from Toshiba, AL13SEB, has been developed according to the highest reliability and performance requirements for HDD applications in the server environment. With the AL13SEBxxx, Toshiba Storage Products Division delivers 900GB of capacity in a high-speed drive especially designed for business-critical data. The series operates at 10,500 RPM and distinguishes itself from 3.5.inch form factor competition through superior technical and power consumption specifications. The 2.5-inch (6.4 cm) enterprise line of HDDs offers a 6GB/s SAS interface and is made for demanding, power-conscious and data-intensive storage applications and allows critical data to be accessed whenever necessary, 24/7.
By utilising an improved head-disk interface proximity sensor, the AL13SEB series boasts a 25 per cent increase in operating reliability rate of two million power-on hours. The series also features increased power efficiency compared to traditional 3.5-inch enterprise storage counterparts. This new series is also available in a 3.5-inch mounting frame. This SlimFITT version (AL13SEL) is ideal for system architectures accustomed to holding traditionally large form factor enterprise devices.
DPN: MTV7G 0MTV7G
Compatibility:
All SAS compatible servers including (This list is not all inclusive):
Dell PowerEdge 1900, 1950, 1955, 2900, 2950, 6900, 6950 Servers and MD1120 Storage Arrays.
Compaq/HP Proliant:
BL20p G4, BL460c, BL465c, BL480c, DL360 G4p, DL360 G5, DL380 G4, DL380 G5, DL385, DL385 G2, DL580 G3, DL580 G4, DL585, DL585 G2, ML350 G5, ML370 G4, ML370 G5, ML570 G3, ML570 G4
Specifications | |
---|---|
Model number | AL13SEB300 |
Model Name | AL13SEB |
Formatted Capacity | 300 Gbytes |
Rotational Speed | 10,000 rpm |
Default Buffer (cache) Size | 64 Mbytes |
Seek time (track to track) | Read: 0.2 ms Write: 0.22 ms |
Seek time (average) | Read: 3.7 ms Write: 4.1 ms |
Average latency time | 2.86 ms |
Weight (max.) | 240 g |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: MTV7G 0MTV7G
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
