Toshiba Part #/MPN: AL13SEB300
DiscTech Item #: TOS-AL13SEB300-NP-OE-DEP
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 300GB
Speed: 10,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Average Seek Time: 3.7 / 4.1
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 64MB
Compatible Systems: Dell 10th Gen. 2950 / 6950

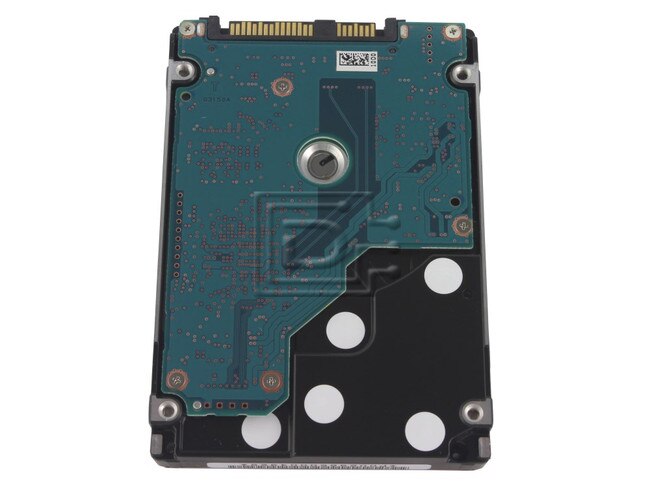

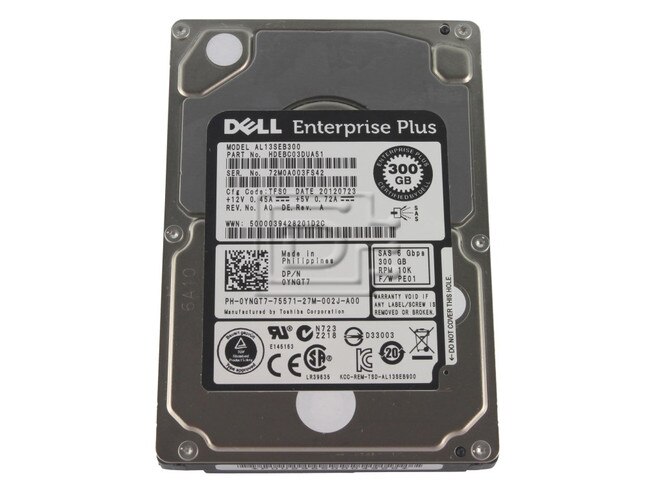

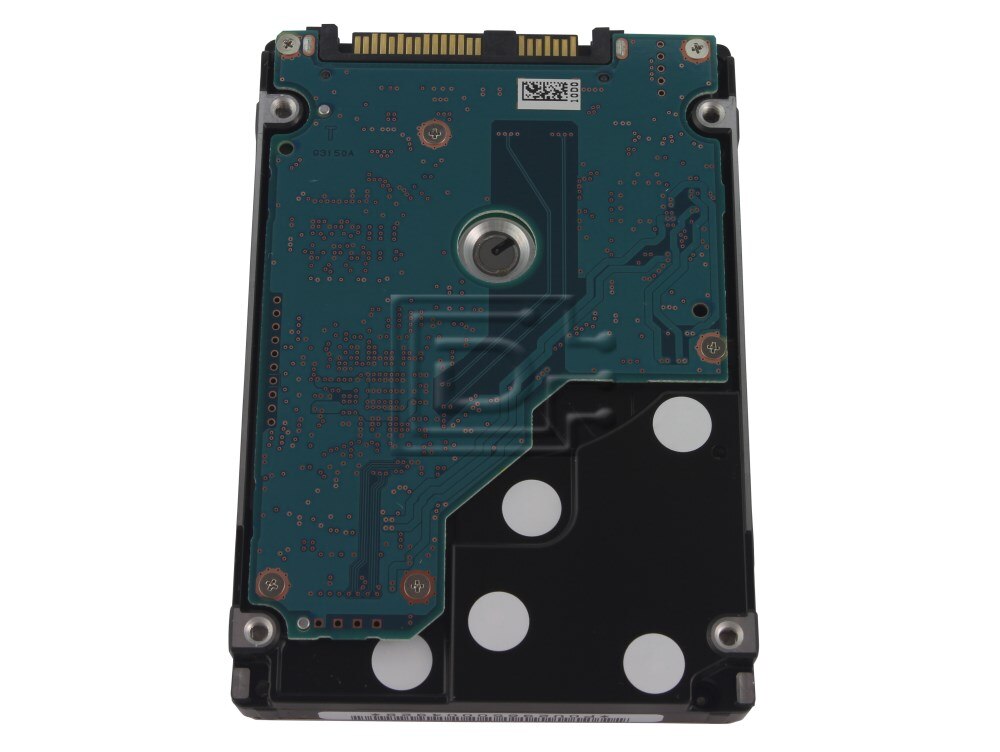

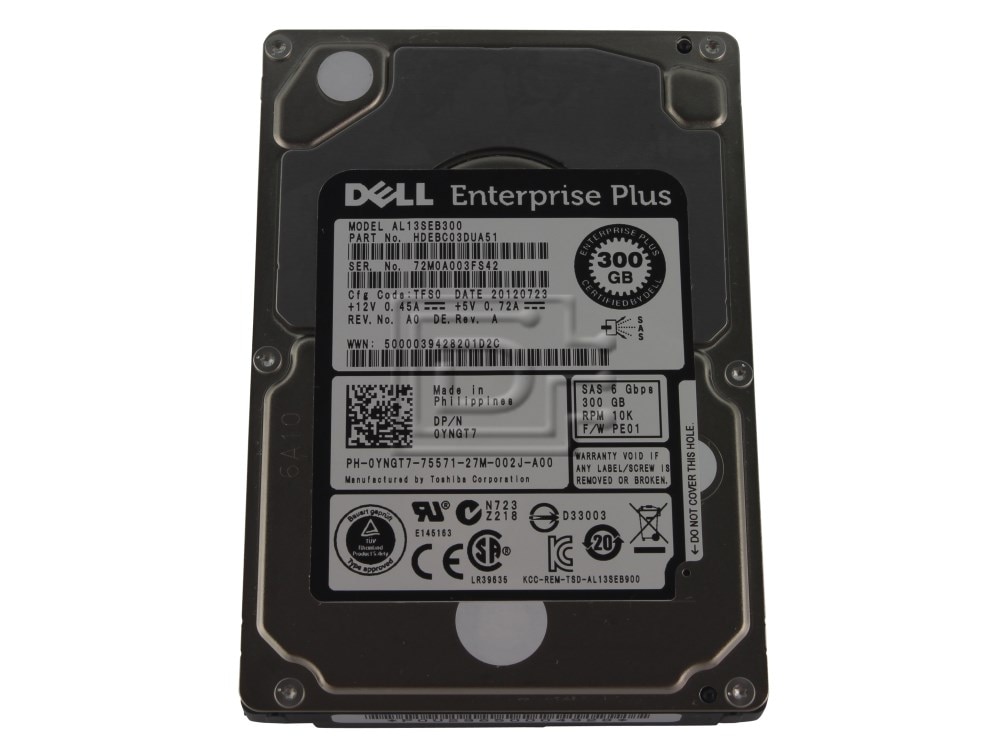

Toshiba AL13SEB300 300GB 2.5inch Small Form Factor 10,000 RPM 6.0Gbps SAS Enterprise Plus Hard Drive - New Pull OEM
Alt. MPN: HDEBC03DUA51
Dell Enterprise Plus PNs: YNGT7, 0YNGT7
Overview
Dell Enterprise Plus for Equallogic, Compellent
The new generation Enterprise series of hard disk drives from Toshiba, AL13SEB, has been developed according to the highest reliability and performance requirements for HDD applications in the server environment. With the AL13SEBxxx, Toshiba Storage Products Division delivers 900GB of capacity in a high-speed drive especially designed for business-critical data. The series operates at 10,500 RPM and distinguishes itself from 3.5.inch form factor competition through superior technical and power consumption specifications. The 2.5-inch (6.4 cm) enterprise line of HDDs offers a 6GB/s SAS interface and is made for demanding, power-conscious and data-intensive storage applications and allows critical data to be accessed whenever necessary, 24/7.
By utilising an improved head-disk interface proximity sensor, the AL13SEB series boasts a 25 per cent increase in operating reliability rate of two million power-on hours. The series also features increased power efficiency compared to traditional 3.5-inch enterprise storage counterparts. This new series is also available in a 3.5-inch mounting frame. This SlimFITT version (AL13SEL) is ideal for system architectures accustomed to holding traditionally large form factor enterprise devices.
Compatibility:
This drive is compatible with any server that accepts 2.5" (SFF) SAS drives.
| Specifications | |
|---|---|
| Model number | AL13SEB300 |
| Model Name | AL13SEB |
| Formatted Capacity | 300 Gbytes |
| Rotational Speed | 10,000 rpm |
| Default Buffer (cache) Size | 64 Mbytes |
| Seek time (track to track) | Read: 0.2 ms Write: 0.22 ms |
| Seek time (average) | Read: 3.7 ms Write: 4.1 ms |
| Average latency time | 2.86 ms |
| Weight (max.) | 240 g |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: YNGT7 0YNGT7 HDEBC03DUA51
Weight: 1.5 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
