Toshiba Part #/MPN: AL13SEB900
DiscTech Item #: TOS-AL13SEB900-BN-5Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:5 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 900GB
Speed: 10,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Average Seek Time: 3.7 ms/4.1ms
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 64MB

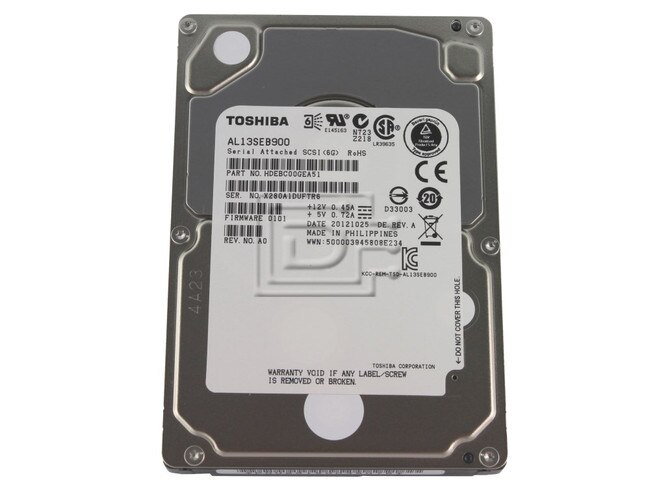

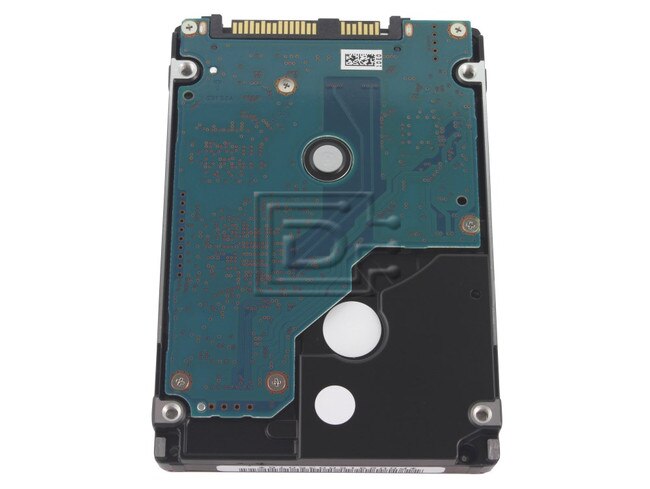

Toshiba AL13SEB900 900GB 6Gbps 10.5K 2.5" SFF SAS Enterprise Hard Drive - Brand New
Preview Html DETAILED DESCRIPTIONToshiba AL13SEB900 900GB 6Gbps 10.5K 2.5" SFF SAS Enterprise Hard Drive - Brand New
High Capacity, 6 Gb/s SAS Interface Enterprise HDD for Mission-Critical Server and Storage Applications
The Toshiba AL13SE series of 2.5-inch 6 Gb/s SAS interface hard disk drives offer enterprise-class performance in capacities ranging from 900GB to 300GB.
The AL13SE is the first 10,000 RPM class model enterprise drive from Toshiba to achieve 900GB capacity and is also the first of Toshiba’s 10,000 RPM drives to employ a dual stage head positioning actuator that provides additional performance gains, including a 32% increase in sustained transfer rate.
Designed for even the most demanding mission-critical applications, the AL13SE series features an operating reliability rating of 2,000,000 power-on hours, a 25% increase over prior-generation drives. System compatibility is also assured through usage of the industry-standard 512 byte sector size.
The AL13SE series drive is designed to support enterprise applications where reliability, high capacity, and performance are required. Specific applications include mid-range volume servers, mainstream storage arrays, blade and rackmount servers, and other mission-critical, power-conscious, data intensive systems.
Alt MPN: HDEBC00GEA51
| FUNCTIONAL SPECIFICATIONS | |
| Formatted storage capacity | 900.0 GB |
| Seek time (track to track) | Read 0.2 / Write 0.22 ms. typ. |
| Seek time (average) | 3.7 / 4.1 ms. typ. (read/write) |
| Average latency time | 2.86 ms. |
| Rotational speed | 10,500 RPM |
| Interface | SAS 2.0 (6Gb/s max.) (6Gbps) |
| Data Buffer Size | 64 MB |
| PHYSICAL SPECIFICATIONS | |
| Power requirement Idle (ready) | 4.5 W typ. |
| Form Factor | 2.5-inch |
| Height | 15.0 mm |
| Width | 69.85 mm |
| Depth | 100.45 mm |
| Weight | 0.22 kg |
| Ambient temperature (operating) | 5 to 55 degrees C |
| Ambient temperature (non-operating) | -40 to 70 degrees C |
| Vibration (operating) | 0.6mm (5 to 20 Hz)/ 1.0G (20 to 300 Hz) |
| Vibration (non-operating) | 3.1mm (5 to 20 Hz)/ 5.0G (20 to 300Hz) |
| Shock (operating) | 100G Max (1ms) |
| Shock (non-operating) | 400G Max (1ms) |
| Acoustic noise (at 1 metre idle) | 3 bels |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: HDEBC00GEA51
Weight: 1.8 lb
Warranty: 5 Year Manufacturer
Brand New
The product is brand new.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
