Toshiba Part #/MPN: AL13SXB30EN
DiscTech Item #: TOS-AL13SXB30EN-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 300GB
Speed: 15,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Average Seek Time: 2.0
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
On-Board Cache: 128MB

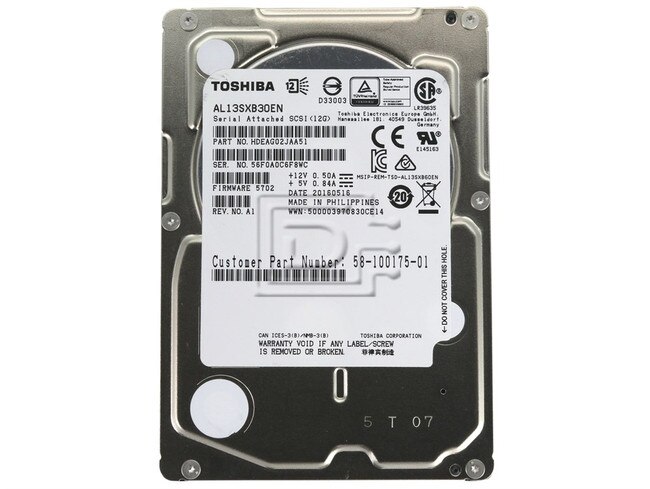

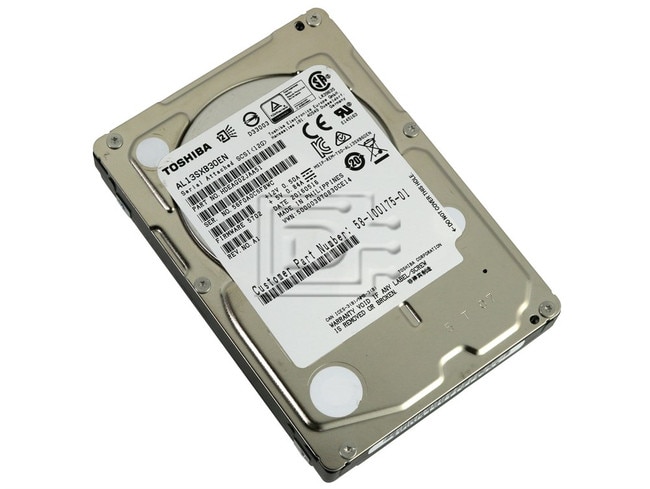

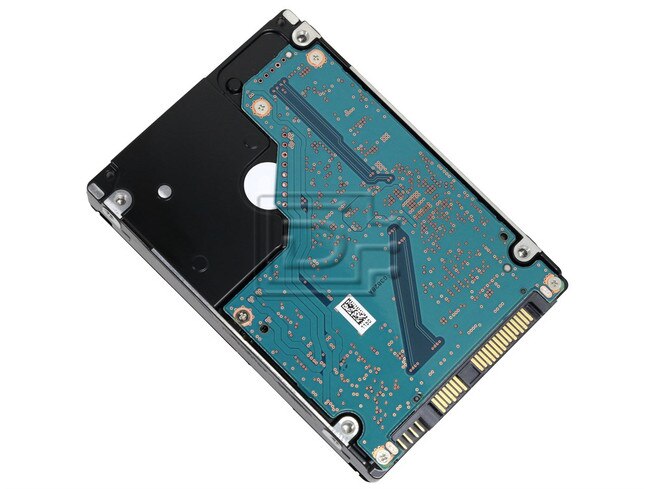

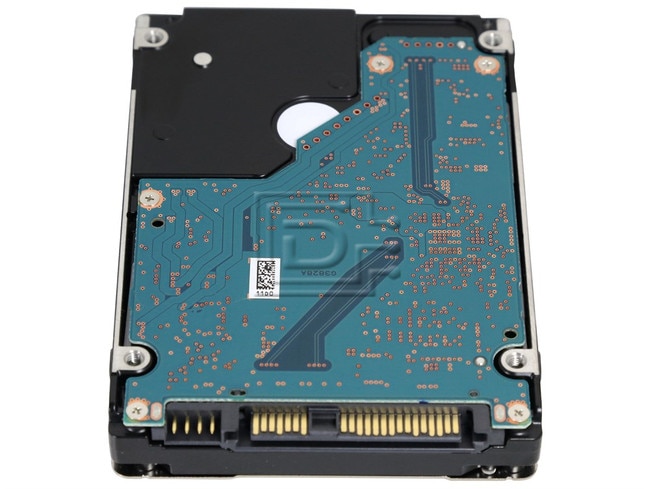

Toshiba AL13SXB Series AL13SXB30EN / HDEAG02DAA51 300GB 2.5 inches 12Gbps 15K Enterprise SAS HDD - New Pull
Toshiba AL13SXB Series AL13SXB30EN 300GB 2.5" 12.0 Gb/s 15,000 RPM Enterprise Serial Attached SCSI Hard Disk Drive - New Pull
Alt MPN: HDEAG02DAA51
OverviewThe 12.0 Gbit/s SAS interface Enterprise Performance HDDs are the latest addition to the AL13SX series. Engineered for mission critical IT operations, the models support 512 native (512n) sector length technology for optimum compatibility with industry standard applications and operating environments. Model options supporting 4K native (4Kn) sector length or emulated 512 (512e) Advanced Format sector length are also available.
Key Features
- 600, 450 and 300GB Capacity Models
- Space Efficient, Power Saving 2.5-inch Form Factor
- 12.0 Gbit/s SAS Interface for Better Performance
- Performance and Industry Leading Low Latency (2.0ms)
- Rotational Speed of 15,000 rpm
- 24/7 Mission Critical Workload Performance and Data Reliability
- 512n sector length support in all capacities for optimum application compatibility
- Toshiba Persistent Write Cache Techno
Applications
- Tier 1 Mission-Critical Servers and RAID Storage
- Servers hosting transaction-based applications
- Rack-Optimized Data Centers
- High-performance computing
Compatibility:
This drive is compatible with any server that accepts 2.5"x15mm (SFF) SAS drives.
| Specifications | |
|---|---|
| Model Number | AL13SXB30EN |
| Alt Model Number | HDEAG02DAA51 |
| Interface | SAS-3.0 |
| Interface Speed | 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
| Formatted Capacity | 300 GB |
| Environmental Compliance | RoHS Compatible |
| Performances | |
| Buffer Size | 128 MiB |
| Rotation Speed | 15,000 rpm |
| Average Latency Time | 2.0 ms |
| Reliability | |
| Unrecoverable Error Rate | 10 per 10^17 bits read |
| Power Requirements | |
| Supply Voltage | 12 V ±5 ％ , 5 V ±5 % |
| Power Consumption ( Read / Write ) | 8.7 W Max. |
| Power Consumption ( Idle-B ) | 4.5 W Typ. |
| Dimensions | |
| Height | 15.0 mm +0 , -0.5 mm |
| Width | 69.85 mm ±0.25 mm |
| Length | 100.45 mm Max. |
| Weight | 230 g Max. |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: HDEAG02DAA51 HDEAG02GEA51
