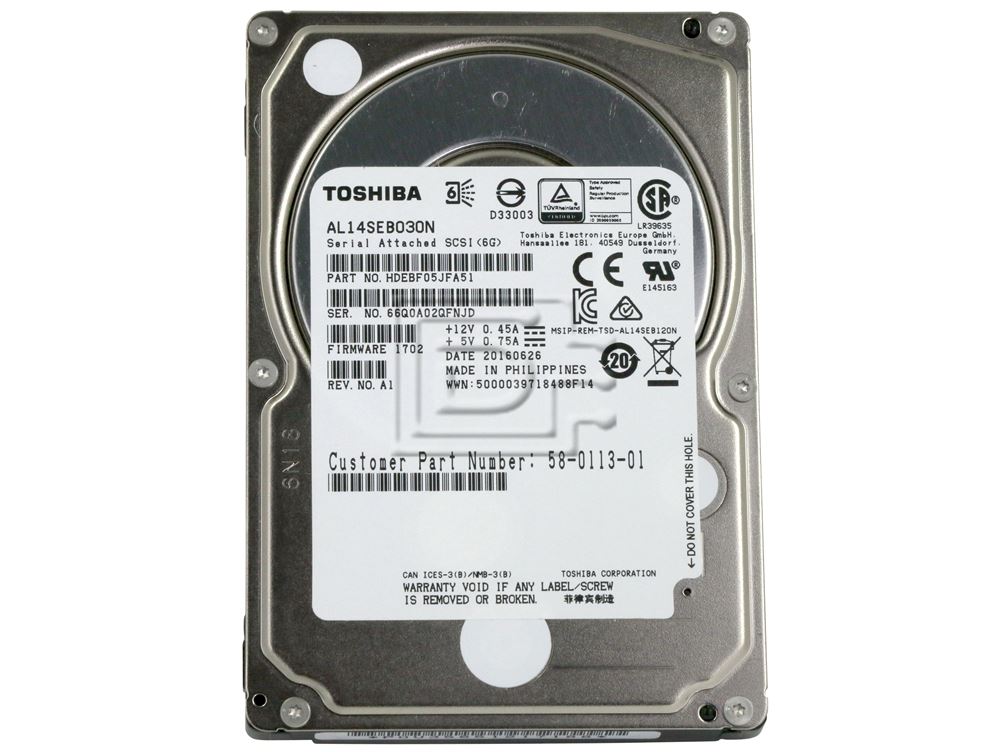

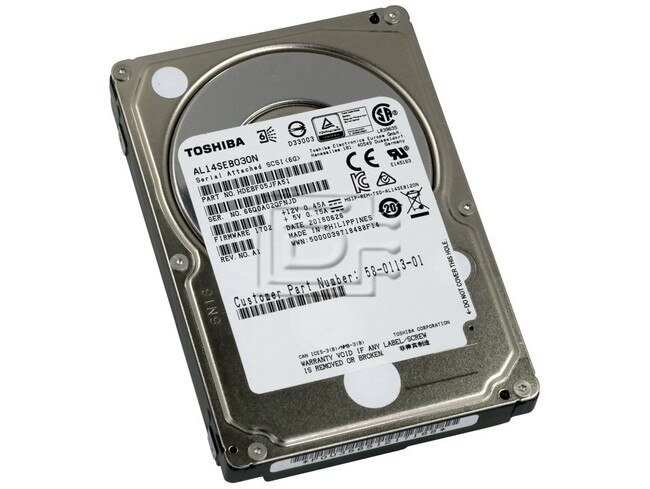

Toshiba AL14SEB030N 300GB Enterprise SAS Hard Disk Drive

Toshiba Part #/MPN: AL14SEB030N

DiscTech Item #: TOS-AL14SEB030N-NP-OE


$119.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$119.00

Enterprise Grade

Capacity: 300GB

Speed: 10,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Average Seek Time: 2.86

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

On-Board Cache: 128MB

Toshiba AL14SEB030N 300GB 12Gbps 10.5K 2.5" SFF Enterprise SAS Hard Drive - New Pull

Toshiba AL14SEB030N 300GB 12Gbps 10.5K 2.5" SFF Enterprise SAS Hard Drive - New Pull

The AL14SEB-N Enterprise Performance HDD models combine the performance of 10,500rpm spindle speed with capacities up to 1200 GB in a compact, power efficient 2.5-inch form factor. Engineered for mission critical IT operations, the AL14SEBxxxN models support 12.0 Gbit/s SAS and provide 512 Byte per sector native format required for legacy applications and operating environments while delivering sustained transfer rates reaching 205 MiB/s. In addition, the AL14SEB-N Series helps to reduce operating costs by improving access time and reducing power consumption when compared with legacy 3.5-inch Enterprise Performance HDD models.

Key Features

  • Industry Standard 2.5-inch 15mm Height Form Factor
  • 1200GB, 900 GB, 600 GB, 450 GB and 300 GB Capacity Models
  • 10,500 rpm Rotational Performance or low latency
  • Dual-Port 12.0 Gbit/s SAS Interface
  • MTTF of 2,000,000 hours
  • 24/7 Mission Critical Workload Performance and Data Reliability
  • RoHS Compatible, Halogen Free and Antimony Free

Applications

  • Hybrid and Mainstream Storage Arrays
  • Mid-Range Volume Servers
  • Blade and Rack mount Servers
  • Mission-Critical Systems
  • Edge Servers and Content Delivery Infrastructure

Compatibility:

This drive is compatible with servers that accept 2.5"x15mm SFF SAS drives.

Basic Specifications
InterfaceSAS-3.0
Interface Speed12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s
Formatted Capacity300 GB
Environmental ComplianceRoHS Compatible
Performances
Buffer Size128 MiB
Rotation Speed10,500 rpm
Average Latency Time2.86 ms
Reliability
Unrecoverable Error Rate10 per 10^17 bits read
Power Requirements
Supply Voltage5 V ±5 % , 12 V ±5 %
Power Consumption (Read / Write)8.7 W Max.
Power Consumption (Idle-B)4.0 W Typ.
Energy Consumption Efficiency /Category Name0.0100 / F
Dimensions
Height15.0 mm +0 , -0.5 mm
Width69.85 mm ±0.25 mm
Length100.45 mm Max.
Weight230 g Max.

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 1 lb

Warranty: 1 Year DiscTech

New Pull

Condition Levels Explained

The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
