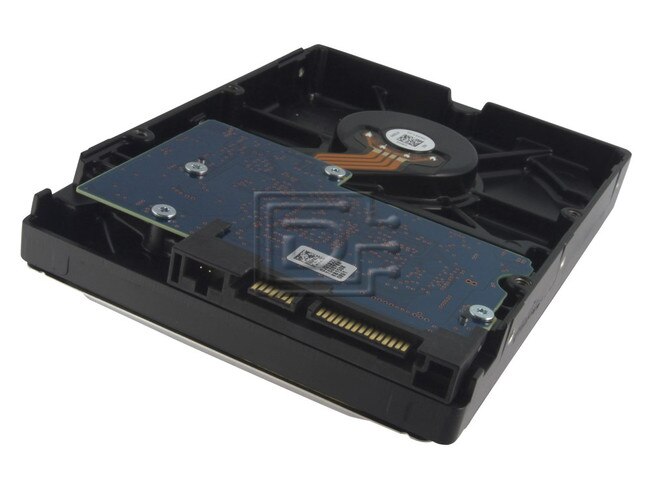

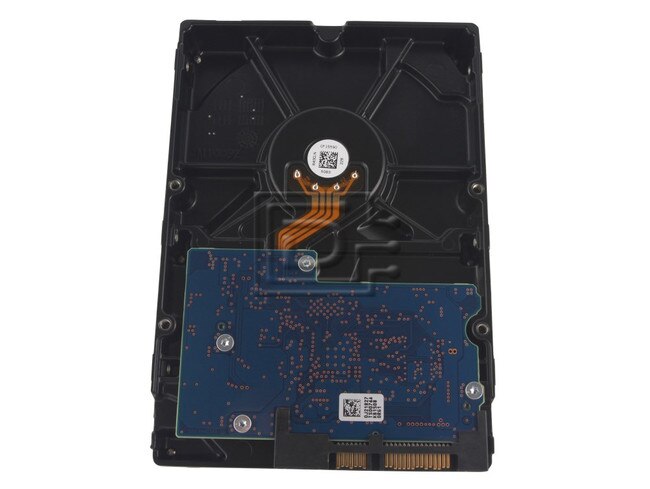

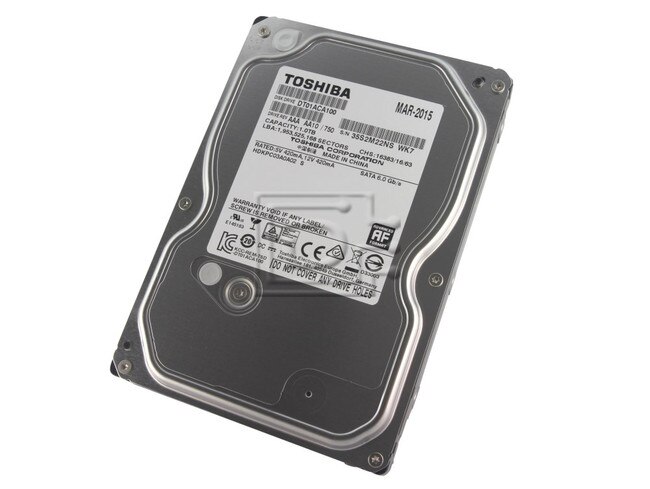

Toshiba DT01ACA100 1TB SATA Hard Drive

(0) No Reviews Yet

Toshiba Part #/MPN: DT01ACA100

DiscTech Item #: TOS-DT01ACA100-BN-OE


Capacity: 1TB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Electrical Interface: SATA 600 - 6.0Gbps

On-Board Cache: 32MB

Series Overview DT01ACA100
Drive Capacity 1TB
Drive Interface

Serial ATA 2.6 / ATA8

Number of Platters (disks)


Number of Data Heads


Environmental Compliance

RoHS Compliant

Transfer Rate to Host

6 Gb/sec

Number of user data cylinders


Bytes per sector (HOST)

512 byte

Bytes per sector (DISK)

4,096 byte

Logical blocks (LBA)


Maximum areal density

2 head: 674 Mb/mm2 (569 Gbits/in2)

Rotational Speed 7,200 RPM
Average Latency 4.16ms
Buffer Size 32MB
Single track seek time (read) 0.6 ms
Single track seek time (write) 0.8 ms
Power Requirements
Voltage5V (+/- 5%). +12VDC ± 10%
Energy Consumption Efficiency 0.0037/A
Read/Write Power 6.4 watts
Active Idle Power 3.7 watts
Low Power Idle 2.2 watts
Standby Power 1.0 watts
Sleep Power 1.0 watts
Physical Size
Dimensions (W) x (D) x (H) 101.6 mm (4 in) x 147 mm (5.78 in) x 26.1 mm (1.03 in)
Weight450 g (1 lb)
Temp - Operating 0° to 60 °C
Temp - Non-Operating -40° to -70°C
Vibration - Operating 6.57 m/s2 (0.67G) RMS 5 to 500 Hz
Vibration - Non-Operating 10.2 m/s2 (1.04G) RMS 2 to 200 Hz
Shock - Operating 686 m/s2 (70G) 2ms Half Sine
Shock - Non-Operating 3430 m/s2 (350G) 2ms Half Sine
Acoustics (Idle) 25 dB
Acoustics (seek) 26 dB
Load/Unload300,000 times
Error rate non-recoverable 1/1014 bit read

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 9F13180 DS7SAE100

Weight: 1.2 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new & sealed in retail box packaging.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
