Toshiba Part #/MPN: MBF2600RC
DiscTech Item #: TOS-MBF2600RC-RF-OE-DEL
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 600GB
Speed: 10,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Average Seek Time: 4.0 / 4.4
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 16MB

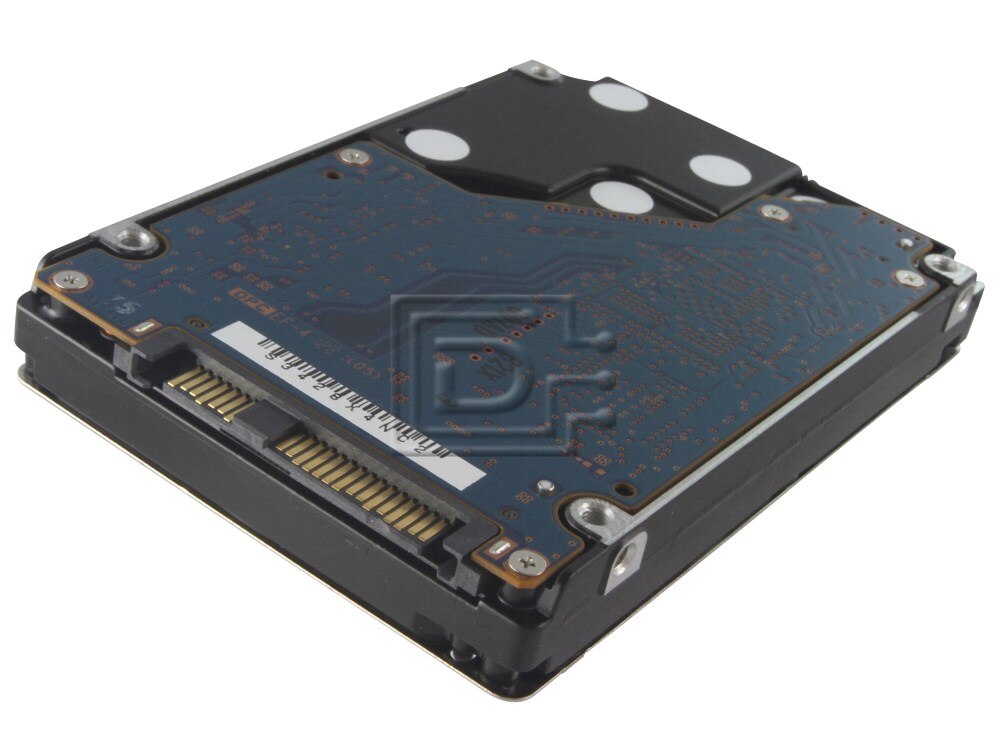

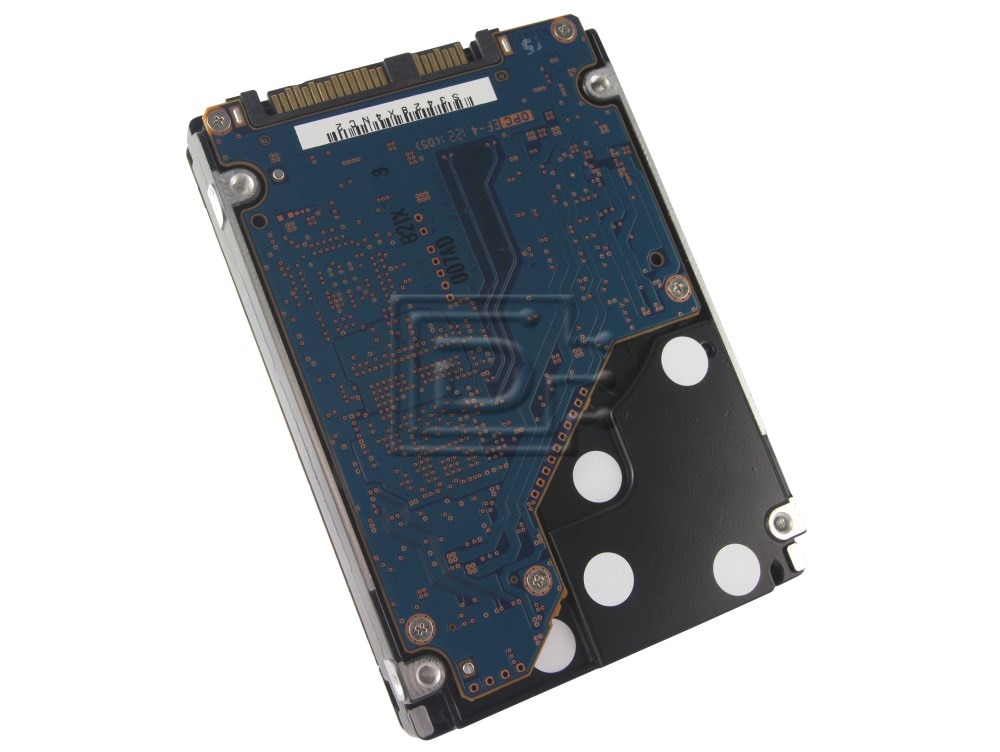

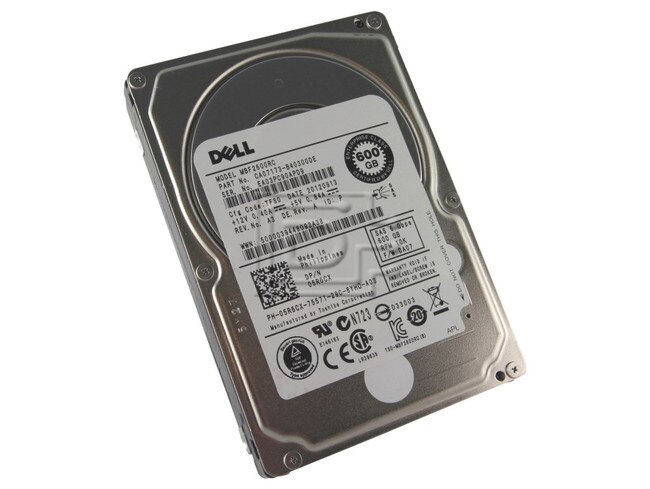

Toshiba / Fujitsu MBF2600RC MBF 600GB 10K 6Gbps SFF Serial Attached SCSI Hard Drive - Refurbished OEM
Reinforcing its strong market position in small form factor hard disk drives, Toshiba / Fujitsu introduces a new high-performance, power-efficient enterprise class, 2.5-inch SAS hard drive offering industry leading storage capacity of 600GB. The MBF2-RC series drive features a 10,025 RPM spin speed, 6 Gb/sec SAS interface, and environmentally friendly low power consumption benefits.
10025 rpm 7.76 oz Internal Toshiba /Fujitsu MBF2600RC MBF2600RC Hard Drive MBF2-RC Toshiba / Fujitsu 0.59" 2.75" 3.95" Yes RoHS 1 x SAS 600 Serial Attached SCSI 2.5" 600 MBps
Fujitsu p/n: CA07173-B400
Compatibility:
FUNCTIONAL SPECIFICATIONS | |
Formatted storage capacity | 600.0 GB |
Seek time (track to track) | Read 0.2 / Write 0.4 ms. typ. |
Seek time (average) | 4.0 / 4.4 ms. typ. (read/write) |
Average latency time | 2.99 ms. |
Rotational speed | 10,025 RPM |
Interface | SAS II (6Gbps) |
Data Buffer Size | 16 MB |
PHYSICAL SPECIFICATIONS | |
Power requirement Idle (ready) | 4.5 W typ. |
Form Factor | 2.5-inch x 15mm high |
Height | 15.0 mm |
Width | 69.85 mm |
Depth | 100.45 mm |
Weight | 0.22 kg |
Ambient temperature (operating) | 5 to 55 degrees C |
Ambient temperature (non-operating) | -40 to 70 degrees C |
Vibration (operating) | 0.6mm (5 to 20 Hz)/ 1.0G (20 to 300 Hz) |
Vibration (non-operating) | 3.1mm (5 to 20 Hz)/ 5.0G (20 to 300Hz) |
Shock (operating) | 100G Max (1ms) |
Shock (non-operating) | 400G Max (1ms) |
Acoustic noise (at 1 metre idle) | 2.9 bels |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 5R6CX 05R6CX
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
