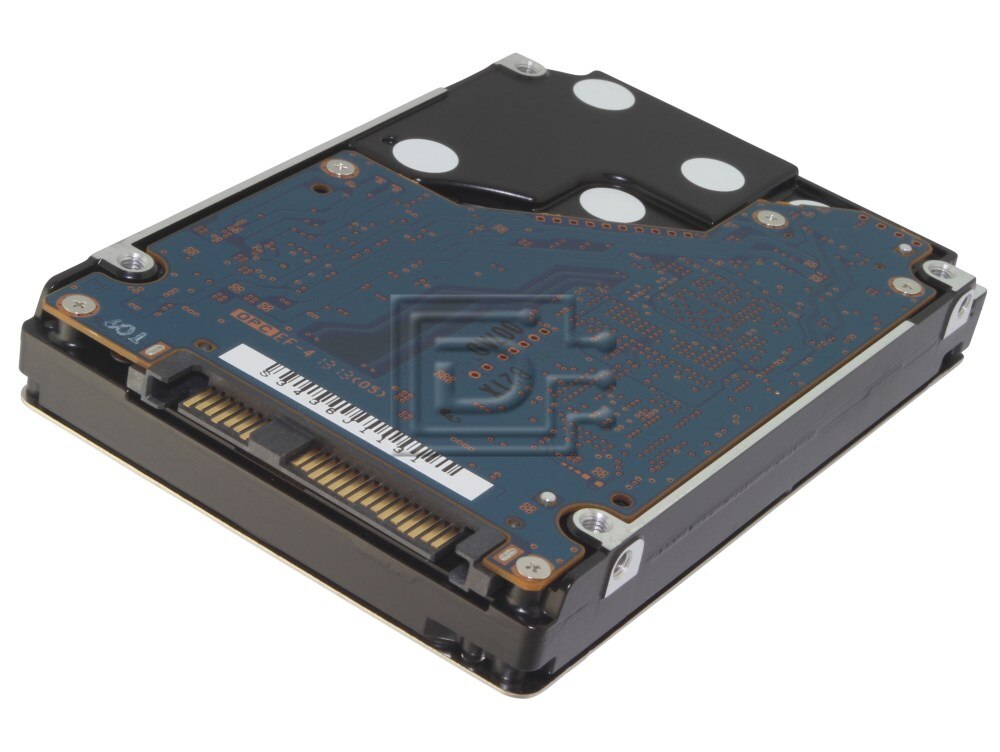

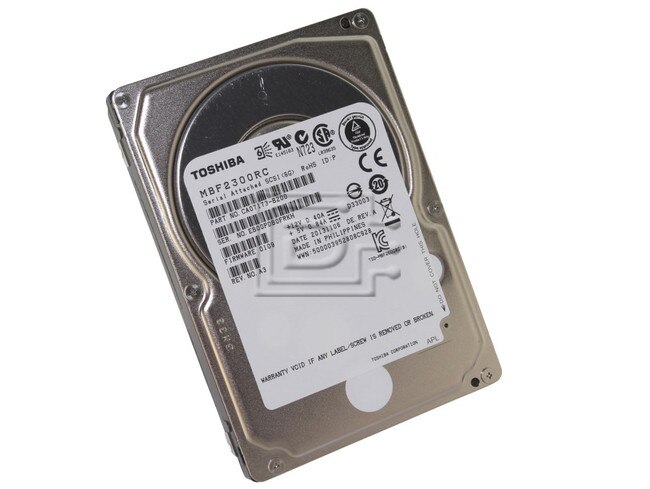

Toshiba / Fujitsu MBF MBF2300RC Serial Attached SCSI / SAS Hard Disk

(0) No Reviews Yet

Toshiba Part #/MPN: MBF2300RC

DiscTech Item #: TOS-MBF2300RC-BN-5Y


$109.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$109.00

Enterprise Grade

Capacity: 300GB

Speed: 10,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Average Seek Time: 4.0 / 4.4

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 16MB

Toshiba / Fujitsu MBF MBF2300RC 300GB 10K 6Gbps SFF Serial Attached SCSI Hard Drive - Brand New

Reinforcing its strong market position in small form factor hard disk drives, Toshiba introduces a new high-performance, power-efficient enterprise class, 2.5-inch SAS hard drive offering industry leading storage capacity of up to 600GB.  The MBF2-RC series drive features a 10,025 RPM spin speed, 6 Gb/sec SAS interface, and environmentally friendly low power consumption benefits.

With a top storage capacity of 600GB, Toshiba’s newest small form factor drive equals the highest capacity point currently available within the entire 2.5 and 3.5-inch form factor enterprise class segments.   In addition to the low power consumption design of 2.5-inch hard drives, the MBF2-RC series features an enhanced power condition state technology enabling lower RPM spin speeds when not in use, allowing for up to 28% reduction in power consumption.

The MBF2-RC series drive is designed to support enterprise applications where reliability, high capacity, and performance are required.  Specific applications include mid-range volume servers, mainstream storage arrays, blade and rackmount servers, and other business-critical, power-conscious, data-intensive systems.

Fujitsu p/n: CA07173-B200


Compatibility:

This drive is compatible with any server that supports SFF (small form factor SAS drives.

FUNCTIONAL SPECIFICATIONS
Formatted storage capacity300.0 GB
Seek time (track to track)Read 0.2 / Write 0.4 ms. typ.
Seek time (average)4.0 / 4.4 ms. typ. (read/write)
Average latency time2.99 ms.
Rotational speed10,025 RPM
InterfaceSAS II (6Gbps)
Data Buffer Size16 MB
PHYSICAL SPECIFICATIONS
Power requirement Idle (ready)4.5 W typ.
Form Factor2.5-inch x 15mm high
Height15.0 mm
Width69.85 mm
Depth100.45 mm
Weight0.22 kg
Ambient temperature (operating)5 to 55 degrees C
Ambient temperature (non-operating)-40 to 70 degrees C
Vibration (operating)0.6mm (5 to 20 Hz)/ 1.0G (20 to 300 Hz)
Vibration (non-operating)3.1mm (5 to 20 Hz)/ 5.0G (20 to 300Hz)
Shock (operating)100G Max (1ms)
Shock (non-operating)400G Max (1ms)
Acoustic noise (at 1 metre idle)2.9 bels

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: CA07173-B200

Weight: 0.5 lb

Warranty: 5 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

5 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
