Toshiba MBF MBF230LRC Serial Attached SCSI / SAS Hard Disk Drive

(0) No Reviews Yet

Toshiba Part #/MPN: MBF230LRC

DiscTech Item #: TOS-MBF230LRC-BN-5Y


$249.00
$249.00

Enterprise Grade

Capacity: 300GB

Speed: 10,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Average Seek Time: 4.0 / 4.4

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 16MB

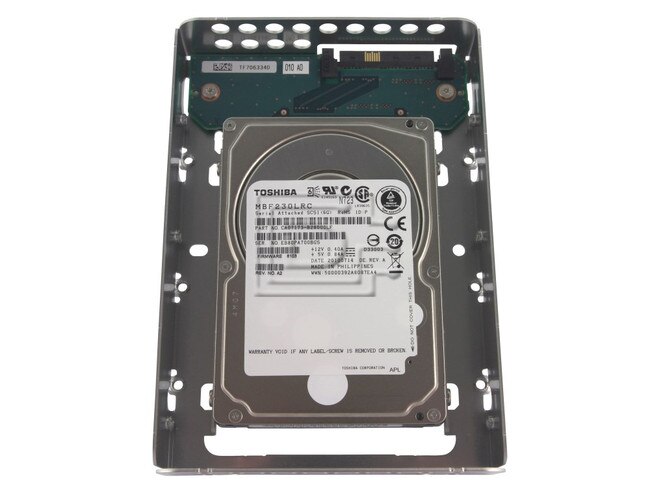

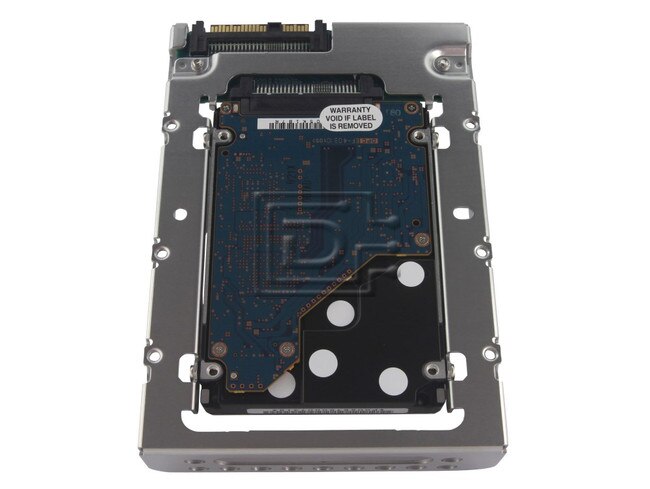

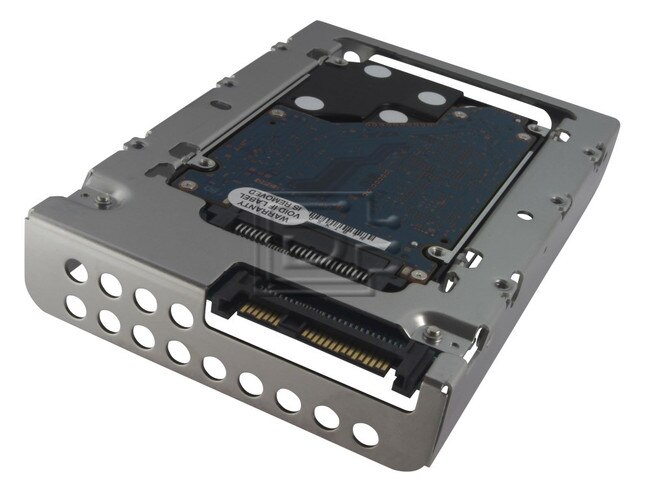

Toshiba MBF MBF230LRC 300GB 10K 6Gbps SFF Serial Attached SCSI Hard Drive in 3.5-inch bracket - Brand New

Easing migration to small form factor enterprise-class hard disk drives, Toshiba offers 2.5-inch SAS drive technology mounted in a 3.5-inch bracket. Toshiba developed the 3.5- inch bracket to enable small form factor drives to be used in legacy based 3.5-inch servers and storage enclosures.

By incorporating the MBF series 2.5-inch drive, the MBF2- LRC option features a 10,025 RPM spin speed, 6 Gb/ sec SAS interface, and the power consumption benefits normally found with small form factor drive technology. With a top storage capacity of 600GB1, the MBF2-LRC series drive matches the highest capacity point currently available within the entire 2.5 and 3.5-inch enterprise-class segments, while consuming 70 percent less power at idle and approximately one-half the active power compared to traditional 3.5-inch enterprise-class drives. In addition to the low power consumption design, the MBF2-LRC series features an enhanced power condition state technology enabling lower RPM spin speeds when not in use. The MBF2-LRC series drive is designed for storage solutions where reliability, high capacity, and performance are required, particularly mission-critical, power-conscious and data-intensive storage applications such as mid-range volume servers, mainstream storage arrays, blade, and rackmount servers


Compatibility:

This drive is compatible with any server that supports SAS drives. ROHS Compliant.

FUNCTIONAL SPECIFICATIONS
Formatted storage capacity300.0 GB
Seek time (track to track)Read 0.2 / Write 0.4 ms. typ.
Seek time (average)4.0 / 4.4 ms. typ. (read/write)
Average latency time2.99 ms.
Rotational speed10,025 RPM
InterfaceSAS II (6Gbps)
Data Buffer Size16 MB
PHYSICAL SPECIFICATIONS
Power requirement Idle (ready)4.0 W typ.
Form Factor3.5-inch x 1.0-inch high
Height25.4 mm
Width101.6 mm
Depth146 mm
Weight.494 kg
Ambient temperature (operating)5 to 55 degrees C
Ambient temperature (non-operating)-40 to 70 degrees C
Vibration (operating)0.6mm (5 to 20 Hz)/ 1.0G (20 to 300 Hz)
Vibration (non-operating)3.1mm (5 to 20 Hz)/ 5.0G (20 to 300Hz)
Shock (operating)65G Max (2ms)
Shock (non-operating)250G Max (1ms)
Acoustic noise (at 1 metre idle)2.9 bels

Click here to view the manufacturer's item description/brochure

Weight: 1 lb

Warranty: 5 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

5 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
