Toshiba Part #/MPN: MBF2600RC
DiscTech Item #: TOS-MBF2600RC-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 600GB
Speed: 10,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Average Seek Time: 4.0 / 4.4
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 16MB

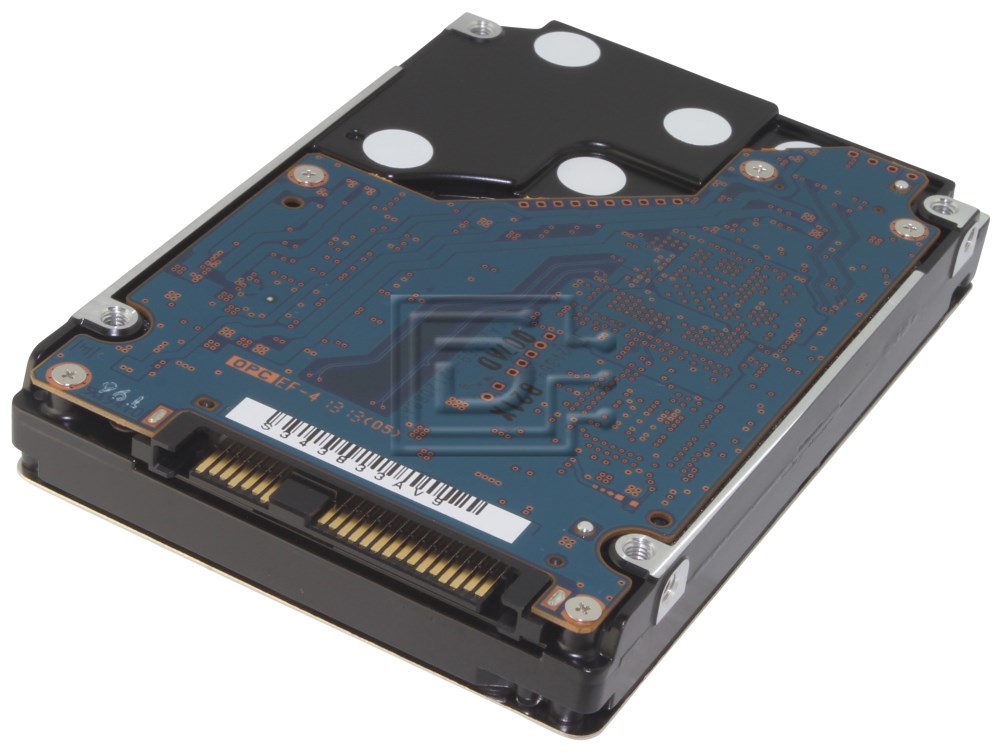

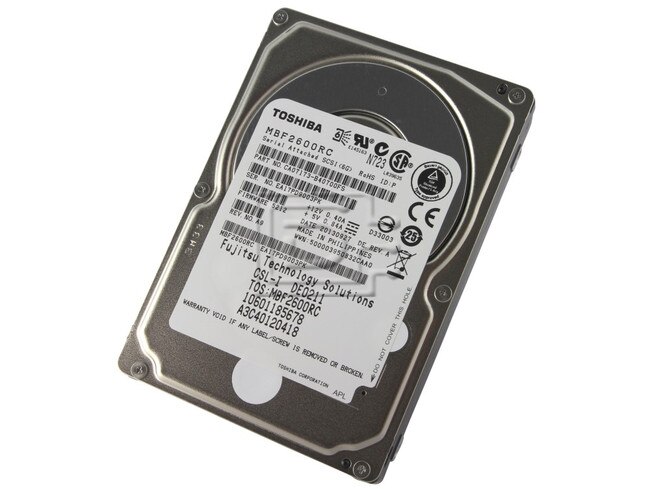

Toshiba / Fujitsu MBF 600GB 10K 6Gbps SFF Serial Attached SCSI Hard Drive MBF2600RC - Brand New
Reinforcing its strong market position in small form factor hard disk drives, Toshiba / Fujitsu introduces a new high-performance, power-efficient enterprise class, 2.5-inch SAS hard drive offering industry leading storage capacity of 600GB. The MBF2-RC series drive features a 10,025 RPM spin speed, 6 Gb/sec SAS interface, and environmentally friendly low power consumption benefits.
10025 rpm 7.76 oz Internal Toshiba /Fujitsu MBF2600RC MBF2600RC Hard Drive MBF2-RC Toshiba / Fujitsu 0.59" 2.75" 3.95" Yes RoHS 1 x SAS 600 Serial Attached SCSI 2.5" 600 MBps
Fujitsu p/n: CA07173-B400
Compatibility:
FUNCTIONAL SPECIFICATIONS | |
Formatted storage capacity | 600.0 GB |
Seek time (track to track) | Read 0.2 / Write 0.4 ms. typ. |
Seek time (average) | 4.0 / 4.4 ms. typ. (read/write) |
Average latency time | 2.99 ms. |
Rotational speed | 10,025 RPM |
Interface | SAS II (6Gbps) |
Data Buffer Size | 16 MB |
PHYSICAL SPECIFICATIONS | |
Power requirement Idle (ready) | 4.5 W typ. |
Form Factor | 2.5-inch x 15mm high |
Height | 15.0 mm |
Width | 69.85 mm |
Depth | 100.45 mm |
Weight | 0.22 kg |
Ambient temperature (operating) | 5 to 55 degrees C |
Ambient temperature (non-operating) | -40 to 70 degrees C |
Vibration (operating) | 0.6mm (5 to 20 Hz)/ 1.0G (20 to 300 Hz) |
Vibration (non-operating) | 3.1mm (5 to 20 Hz)/ 5.0G (20 to 300Hz) |
Shock (operating) | 100G Max (1ms) |
Shock (non-operating) | 400G Max (1ms) |
Acoustic noise (at 1 metre idle) | 2.9 bels |
Click here to view the manufacturer's item description/brochure
