Toshiba Part #/MPN: MG03SCA400
DiscTech Item #: TOS-MG03SCA400-BN-OE-DEL
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 4TB
Speed: 7,200RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 165
Average Seek Time: 8.5 / 9.5
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 64MB

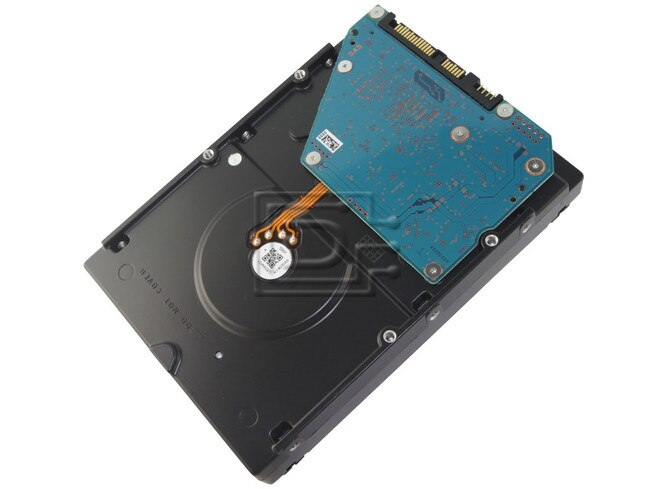

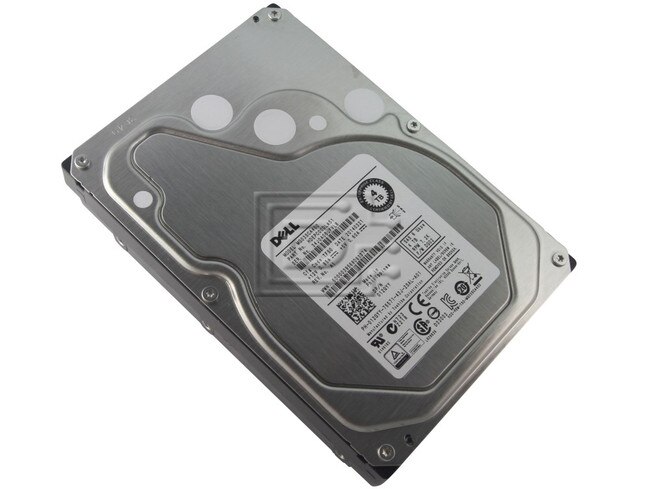

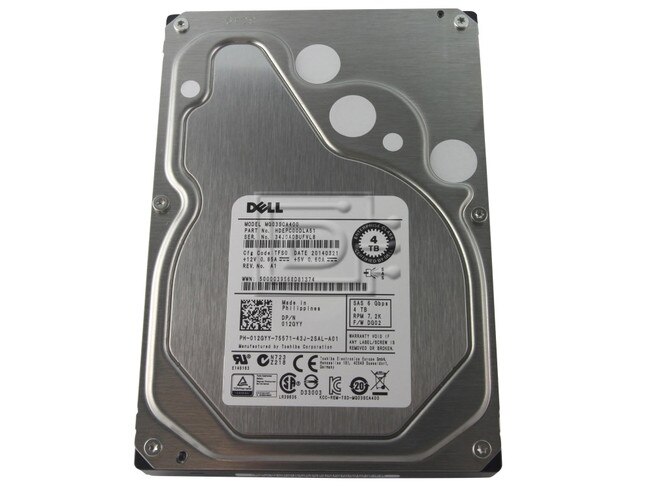

Toshiba MG03SCA400 / 012GYY 4TB / 4000GB 7.2K 6.0Gbps Serial SCSI / SAS Hard Drive - Brand New OEM
Overview
The new reliable nearline model features a top storage capacity of up to 4 TB in a 3.5-inch form factor and leading-edge 6Gb/sec SAS interface. Intended for 24 x 7 operation, the MG03SCAxxx also includes features that are critical to business operations such as enhanced Error Correction Code (ECC), Anti Rotational Vibration (RV) technology for multi-drive systems, and enhanced power condition state technology.
The MG03SCAxxx provides a flexible and cost effective storage solution for enterprise applications including entry-level servers, storage arrays, RAID systems as well as private cloud storage.
This series is also available with enhanced secure cryptographic erase function [Models MG03SCP100, MG03SCP200, MG03SCP300 and MG03SCP400], which can invalidate all data saved on the disk in an instant.
Alt DPNs : 12GYY / 012GYY
Compatibility:
This drive is compatible with any of our SAS drive trays and any of our SAS controllers.
Drive specification | MG03SCA400 |
Formatted Gbytes (512 bytes/sector) | 4000 |
Bytes per sector | 512 |
Spindle speed (RPM) | 7,200 |
I/O data transfer rate (MBps) | 600 |
Cache buffer | 64MB |
Interface Type | 6.0Gbps SAS 2.0 |
Seek time (read / write) ms | 9.5 |
ROHS | Yes |
Dimensions (HxLxW) mm | 26.1 / 147 / 101.6 |
Weight | 0.8 kg |
Operating Shock (Read) | 70G, 2ms |
Non-operating Shock | 300G, 2ms |
MTBF | 1,200,000 hrs |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 12GYY 012GYY
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
