Toshiba Part #/MPN: MK1002TSKB
DiscTech Item #: TOS-MK1002TSKB-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 1TB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Average Seek Time: 9.5
Electrical Interface: SATA 300 - 3.0Gbps
On-Board Cache: 64MB

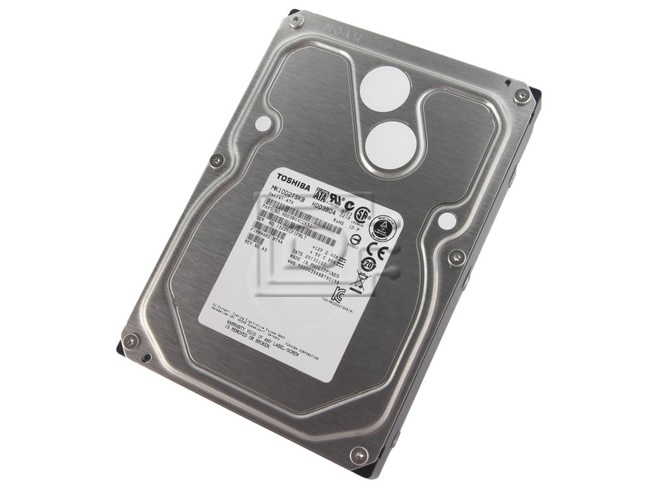

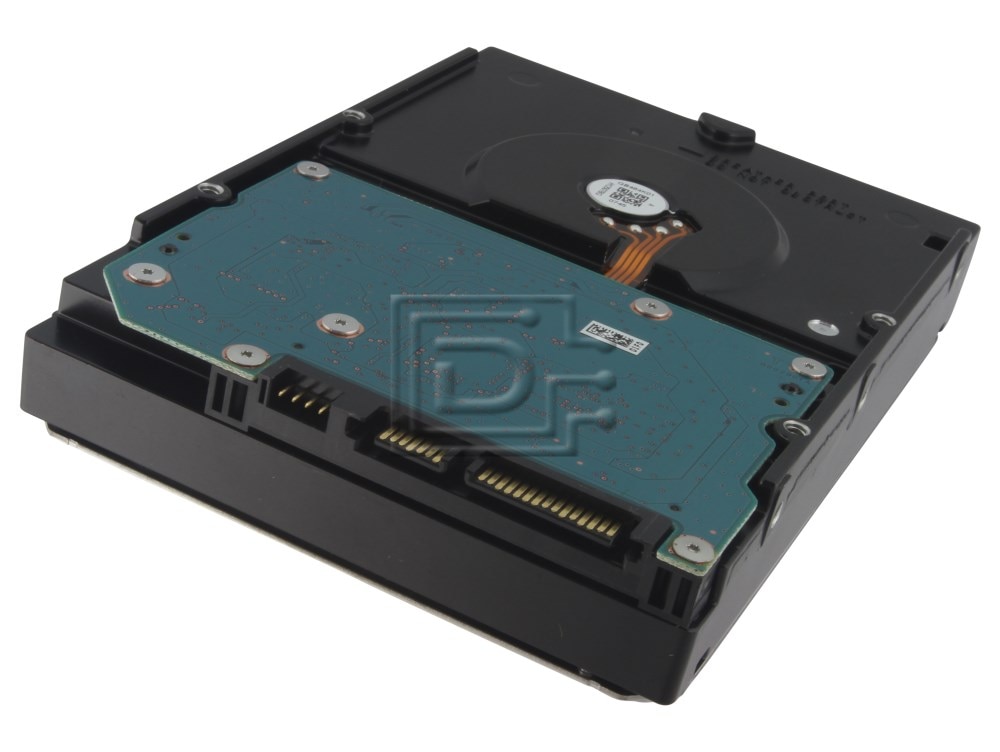

Toshiba MK1002TSKB 7.2K 3.0Gbps 1TBEnterprise SATA Hard Disk Drive - New Pull
Overview
The Toshiba MKx001TRKB and MKx002TSKB series hard disk drives (HDDs) feature high storage capacities, enterprise-class reliability, enhanced power condition state technology, and performance efficiencies which are critical to business operations.
With a top storage capacity of 2TB*, the Toshiba MKx001TRKB and MKx002TSKB HDDs utilize a traditional 3.5-inch form factor, enabling system builders to leverage 3.5-inch based storage chassis. The high-capacity, cost-effective models feature 7,200 RPM spin speed and leading-edge 6Gb/sec Serial Attached SCSI (SAS) and 3Gb/sec Serial ATA (SATA) interfaces.
Both series leverage the expertise and history of Toshiba in enterprise-class storage and offer similar features as traditional enterprise-class drives including 24 x 7 operation, Error Correction (ECC), Rotational Vibration (RV) technology for multi-drive systems, 1.2 million hours MTBF.
The MKx001TRKB and MKx002TSKB series HDDs are designed to support enterprise applications where reliability, high capacity, and performance are required. Specific applications include SAN, NAS, DAS, cloud storage, data centers, entry level servers and tiered storage system architecture.
Features and Benefits
- Lowest Cost Per GB Enterprise Storage Option
- 6 Gb/sec Serial Attached SCSI (SAS) and 3 Gb/sec (SATA) Interfaces
- Enhanced Power Condition State Technology
- Rotational Vibration (RV) Technology for Multi-drive Systems
Part Number: HDD3B04
Compatibility:
This drive is compatible with any of our SATA drive trays and any of our SAS/SATA controllers.
Drive specification | MK1002TSKB |
Formatted Gbytes (512 bytes/sector) | 1000 |
Bytes per sector | 512 |
Spindle speed (RPM) | 7,200 |
I/O data transfer rate (MBps) | 300 |
Cache buffer | 64MB |
Interface Type | 3.0Gbps SATA |
Seek time (read / write) ms | 9.5 |
Average Latency | 4.17ms |
Dimensions (HxLxW) mm | 26.1 / 147 / 101.6 |
Weight | 0.8 kg |
Operating Shock (Read) | 70G, 2ms |
Non-operating Shock | 300G, 2ms |
Number of Platters (disks) | 2 |
Number of Data Heads | 4 |
MTBF | 1,200,000 hrs |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: HDD3B04
Weight: 1.8 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
