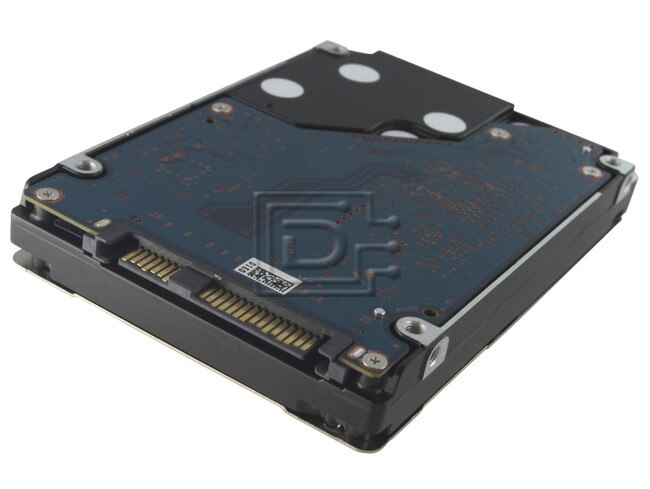

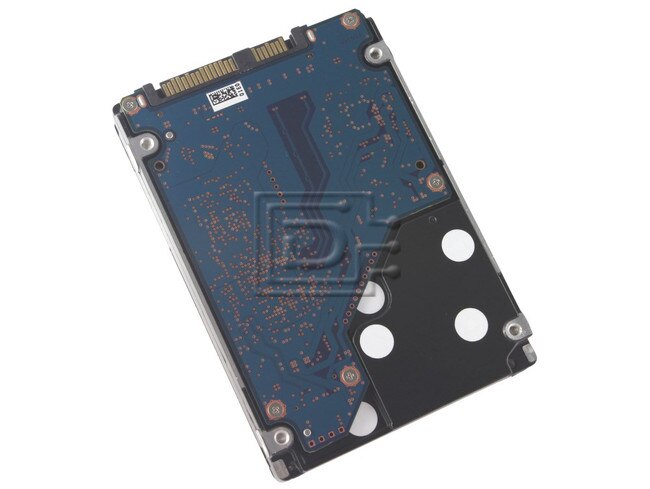

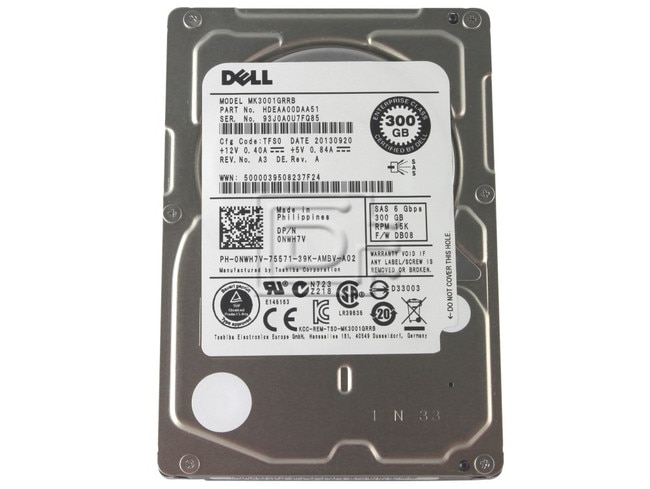

Toshiba MK3001GRRB 300GB 15K 6Gbps SFF Serial SAS Hard Disk Drive

(0) No Reviews Yet

Toshiba Part #/MPN: MK3001GRRB

DiscTech Item #: TOS-MK3001GRRB-BN-OE-DEL


$209.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$209.00

Enterprise Grade

Capacity: 300GB

Speed: 15,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 202

Average Seek Time: 2.7 / 3.0

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 32MB

Toshiba MK3001GRRB / NWH7V 300GB 15K RPM 6Gbps SFF Serial SCSI / SAS Hard Drive -  Brand New

An industry first, the 2.5-inch (6.4cm) MK3001GRRB HDD with 6GB/s SAS interface and 15RPM spindle speed, combines high performance with a 300GB capacity and compact size. This range also include, as an optional feature, Toshiba’s self-encrypting drive (SED) technology model, the MKxx01GRRR.

Developed with enterprise computing features in mind, where operational reliability, capacity and high performance are a top priority, the 300GB MK3001GRRB/R is an ideal fit for data intensive applications such as high-end servers, storage arrays and other mission-critical functions.

The MK3001GRRB/R has been developed in line with Toshiba’s ongoing commitment to social and environmental responsibility; it delivers a further power reduction with the addition of an Enhanced Power Condition State feature, allowing it to spin at a lower RPM when not in use.

The MK3001GRRB/R and the MK1401GRRB/R boast capacities of 300GB and 147GB respectively.

DPN: NWH7V, 0NWH7V


Compatibility:

All SAS compatible servers including (This list is not all inclusive):



Dell PowerEdge 1900, 1950, 1955, 2900, 2950, 6900, 6950 Servers and MD1120 Storage Arrays.



Compaq/HP Proliant:

BL20p G4, BL460c, BL465c, BL480c, DL360 G4p, DL360 G5, DL380 G4, DL380 G5, DL385, DL385 G2, DL580 G3, DL580 G4, DL585, DL585 G2, ML350 G5, ML370 G4, ML370 G5, ML570 G3, ML570 G4

Specifications
Model number MK3001GRRB
Model Name MKxx01GRRB
Formatted Capacity 300 Gbytes
Rotational Speed 15,000 rpm
Default Buffer (cache) Size 32 Mbytes
Recording Code

PRML + Iterative

Head Positioning Method

Rotary VCM

Spindle Start Time

15s

Spindle Stop Time

15s

Performance
Internal (I/O) Transfer Rate (max) 298 MBytes/sec
Sustained Transfer Rate202 MBytes/sec
Average Seek Time, Read 2.7 msec typical
Average Seek Time, Write 3.1 msec typical
Average latency2.0 msec typical
Physical
Form Factor(width) 2.5-inch
Form Factor(height) .591-inch
Height 15 mm
Width 69.85 mm
Length 100.45mm
Weight 0.225 kg
Reliability

MTBF1,600,000 Hours

Unrecoverable errors

10 per 10^17 bits read

Seek Errors

10 per 10^8 seeks

Environmental
Max Operating Shock (1-msec) 100 Gs
Max Nonoperating Shock (1-msec) 400 Gs
Operating Vibration (max) 1 Gs
Nonoperating Vibration (max) 5 Gs
Operating Temperature (max) 55 deg C
Operating Temperature (min) 5 deg C
Nonoperating Temperature (max) 70 deg C
Nonoperating Temperature (min) -40 deg C

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: NWH7V 0NWH7V

Weight: 0.4 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
