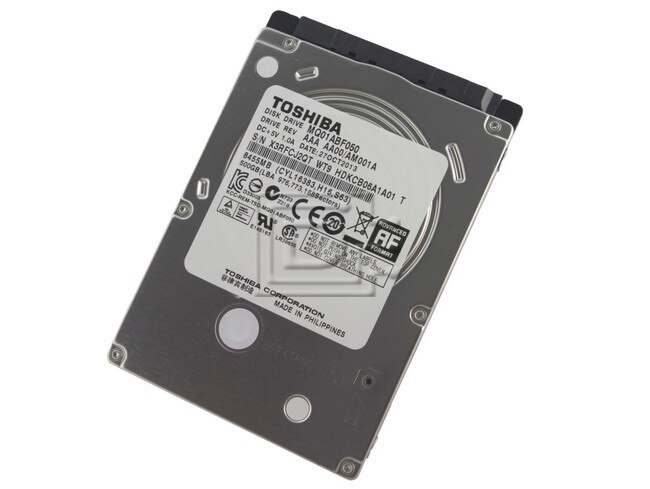

Toshiba MQ01ABF050 500GB 5.4K 2.5" 7mm 6.0 Gb/s SATA Hard Drive

(0) No Reviews Yet

Toshiba Part #/MPN: MQ01ABF050

DiscTech Item #: TOS-MQ01ABF050-BN-3Y


Capacity: 500GB

Speed: 5,400RPM

Interface Types: SATA

Form Factor: 2.5inx7mm Fits All laptops

Sector Size: 512 / 512e

Electrical Interface: SATA 600 - 6.0Gbps

On-Board Cache: 8MB



SANITIZE Cryptographic Erase
Series Overview
 Drive Capacity500GB*320GB*
 Drive InterfaceSerial ATA 3.0 / ATA8
 Number of Platters (disks)1
 Number of Data Heads2
 RoHS CompliantYes
 Transfer Rate to Host6 Gb/sec
 Number of User Data Cylinders231,312190,708
 Bytes per sector (HOST)512 byte
 Bytes per sector (DISK)4,096 byte
 Logical Blocks (LBA)976,773,168625,142,448
 Maximum Areal Density1153.4Mbit/mm² {744.1 Gbits/in²}746.7 Mbit/mm² {481.7 Gbits/in²}
 Track-to-track Seek2ms
 Max. Seek Time22ms
 Rotational Speed5,400 RPM
 Average Latency5.56ms
 Buffer Size8MB
Power Requirements
 Voltage5V (+/- 5%)
 Spin up (start) Power4.5 watts
 Seek Power1.85 watts
 Read/Write Power1.5 watts
 Low Power Idle0.55 watts
 Standby Power0.18 watts
 Sleep Power0.15 watts
Physical Size
 Dimensions (W) x (D) x (H)69.85 mm x 100 mm x 7.0 mm
 Weight92 g
 Temp - Operating5° to 55°C (41° to 131°F)
 Temp - Non-Operating-40° to 65°C
 Vibration - Operating9.8 m/s² (1.0G)
 Vibration - Non-Operating49 m/s² (5.0G)
 Shock - Operating3,920 m/s² (400G) 2ms (2ms half sine)
 Shock - Non-Operating8,820m/s² (900G) 2ms (1ms half sine)
 Acoustics (idle)19 dB
 Acoustics (seek)21 dB
 Load/Unload600,000 times
 Error rate non-recoverable1/1014 bit read
 Limited Warranty3 years (from date of purchase)

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 0.5 lb

Warranty: 3 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new & sealed in retail box packaging.

3 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
