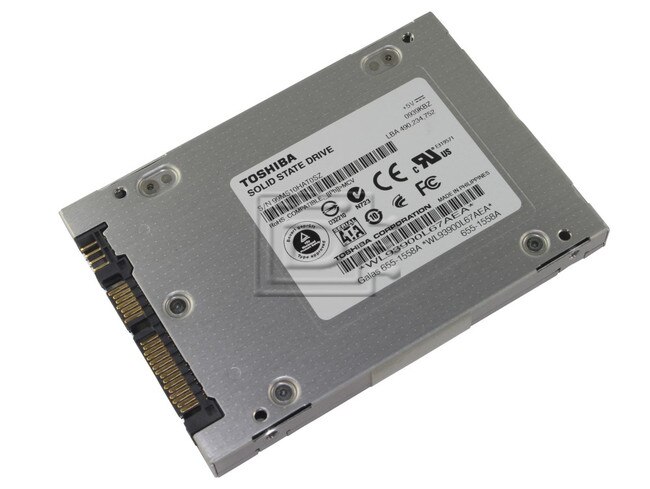

Toshiba THNSNJ480PCS3 480GB SATA eSSD

Toshiba Part #/MPN: THNSNJ480PCS3

DiscTech Item #: TOS-THNSNJ480PCS3-BN-5Y


$625.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$625.00

Enterprise Grade

Capacity: 480GB

Speed: Solid State Memory

Interface Types: SATA

Form Factor: 2.5inx7mm Fits All laptops

Sector Size: 512 / 512e

Electrical Interface: SATA 600 - 6.0Gbps

SSD Type: MLC

SSD Endurance DWPD: Enterprise Read Intensive

Toshiba THNSNJ480PCS3 480GB 2.5" 6Gbps SATA MLC Enterprise Read-Intensive 1-DWPD SSD - Brand New

Toshiba THNSNJ480PCS3 480GB 2.5" 6Gbps SATA MLC Enterprise Read-Intensive 1-DWPD SSD - Brand New

The HK3R range is designed for use in tiered server storage systems and any read-intensive applications such as fast boot drives and for cache and error logging. The eSSDs are fitted with a 6Gbit/s SATA 3.0 interface and come in a 2.5 inch (6.4cm) form factor. Using state-of-the-art 19nm MLC NAND, the drives achieve sequential read speeds of 500MiB/s and random read speeds of 75,000 IOPS.

All eSSDs of this series feature full power loss protection and end-to-end data protection. The drives also incorporate Toshiba’s robust and highly efficient Quadruple Swing-By Code (QSBC™) for improved error correction and reliability.

  • 19 nm MLC NAND Flash
  • 6Gbit/s SATA 3.0 Interface
  • Quadruple Swing-By Code (QSBC) technology
  • Power loss protection
  • End-to-end data protection


Compatibility:

This drive is compatible with any server that accepts 2.5"x7mm (Thin Case) drives

Drive ModelTHNSNJ480PCS3
Capacity480GB
Performance
Interface TypeSATA 3.0 (6/3/1.5 Gbps)
Memory19mn MLC NAND Flash Memory
Performance: Random read (4KiB)75,000 IOPS
Performance: Random write (4 KiB)12,000 IOPS
Performance: Sequential read (64 KiB)500 MByte/s
Performance: Sequential write (64 KiB)400 MByte/s
Physical
Form factor2.5 inch
Height (in/mm)0.28/7.0
Width (in/mm)2.75/69.85
Depth (in/mm)3.95/100.45
Weight (lb/g)0.132/60.0
Ambient temperature (operating)From 0 °C to +55 °C
Ambient temperature (non-operating)From -40 °C to +70 °C
Shock resistance (operating)9,800 m/s2 {1,000G} / 0.5 ms duration
Shock resistance (non-operating)9,800 m/s2 {1,000G} / 0.5 ms duration
Vibration (operating)21.27 m/s2 {2.17Grms} (5 to 800Hz)
Vibration (non-operating)159.74 m/s2 {16.3Grms} (20 to 2,000Hz)
Reliability
MTTF2,000,000 Hours
Product life5
Operating condition24 hours/day, 7 days/week

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 0.5 lb

Warranty: 5 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

5 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
