Ubiquiti Networks Part #/MPN: AF-24
DiscTech Item #: UBI-AF-24-BN-1Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: Ethernet RJ45
Electrical Interface: Ethernet Gigabit - 1Gbps
Bays/Ports/Slots: 1
Wattage/VA: 50W
Voltage: 50V

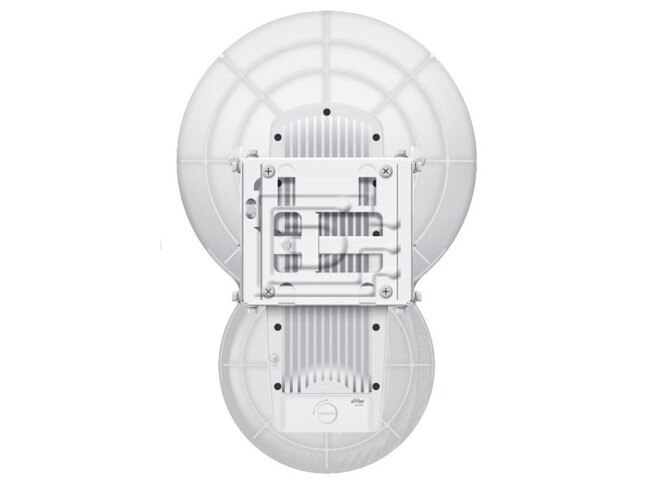

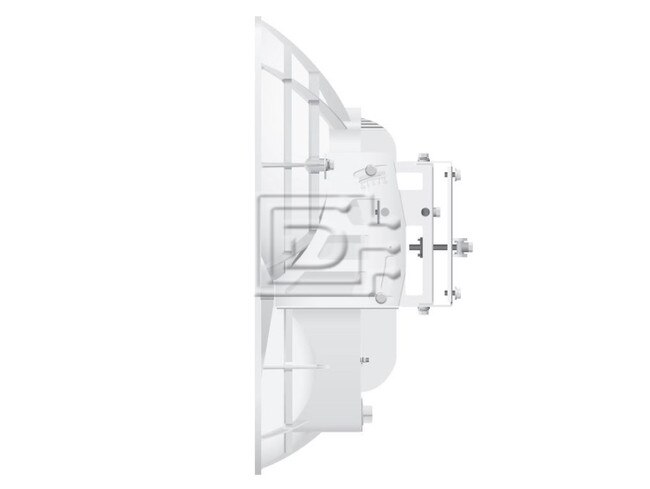

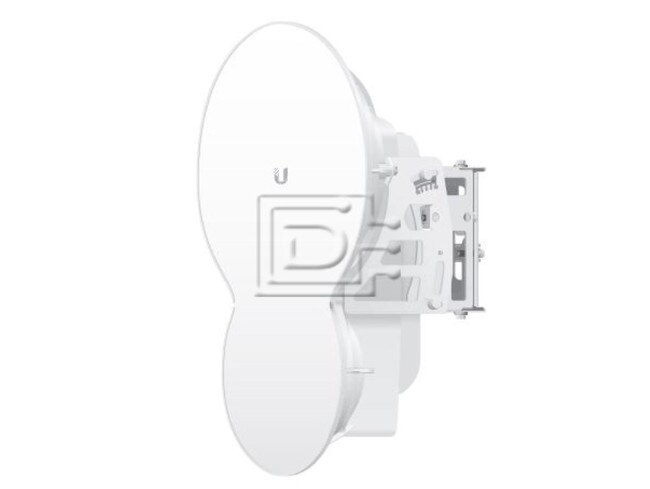

Ubiquiti Networks AF-24 airFiber 24 GHz Point To Point Wireless Gigabit Radio - Brand New
Ubiquiti Networks AF-24 airFiber 24 GHz Point-to-Point Wireless Gigabit Radio - Brand New
Superior 24 GHz Performance
airFiber AF-24/AF-24HD provides a breakthrough in 24 GHz backhaul performance.
Systems for millimeter-wave frequencies typically experience RF losses when part of the RF is lost in the switches and filters.
The Ubiquiti R&D team eliminated such RF losses with separate yet integrated TX and RX antennas, so the link budget is robust and the airFiber AF-24/AF-24HD has better noise figure and higher transmit power efficiency.
Two airFiber 24 GHz Models
Two models deliver superior speed with spectral efficiency in the worldwide, license-free, 24 GHz radio band.
The standard model, AF-24, delivers up to 1.4+ Gbps throughput at a range of up to 13+ km.
The heavy-duty model, AF-24HD, provides more throughput at up to 2 Gbps and increased range of up to 20+ km. It also includes a more rugged exterior with a metal reflector, to protect against nature’s harshest elements.
| SPECIFICATIONS | |
|---|---|
| Model Number | AF-24 |
| Operating Frequency | 24.05 - 24.25 GHz |
| Dimensions | 649 x 426 x 303 mm (25.55 x 16.77 x 11.93 in) |
| Weight | 10.5 kg (23.15 lb) Mount included |
| Max Power Consumption | 50 W |
| Power Supply | 50V, 1.2A PoE GigE Adapter (Included) |
| Power Method | Passive Power over Ethernet |
| Supported Voltage Range | 42-58VDC |
| Certifications | CE, FCC, IC |
| Wind Loading | 480 N @ 200 km/hr (108Ibf @ 125 mph) |
| Wind Survivability | 200 km/hr (125 mph) |
| Mounting | Pole Mount Kit (included) |
| Operating Temperature | -40 to 55° C (-40 to 131° F) |
| LEDs | (8) Status LEDs: Data Port Speed Data Port Link/Activity Configuration Port Speed Configuration Port Link/Activity GPS Synchronization Modulation Mode Master/Slave RF Status (1) Two-Digit LED Display Calibrated in dBm |
| INTERFACE | |
| Data Port | (1) 10/100/1000 Ethernet Port |
| Configuration Port | (1) 10/100 Ethernet Port |
| Auxiliary Port | (1) RJ-12, Alignment Tone Port |
| SYSTEM | |
| Maximum Throughput | 1.4+ Gbps |
| Maximum Range | 13+ km |
| Packets per Second | >1 Million |
| Encryption | 128-bit AES |
| Uplink/Downlink Ratio | 50% Fixed |
| RADIO FREQUENCY | |
| GPS | GPS Clock Syncronization |
| TRANSCEIVER | |
| EIRP | ~33 dBm(FCC/IC) ~20 dBm (CE) |
| Frequency Accuracy | +/-2.5 ppm without GPS Synchronization +/-0.2 ppm with GPS Synchronization |
| Channel Bandwidth | 100 MHz |
| Operating Channels | 24.1 GHz, 24.2 GHz |
| Modulation | 64QAM MIMO 16QAM MIMO QPSK MIMO QPSK SISO 1/4x QPSK SISO |
| INTEGRATED SPLIT ANTENNA | |
| TX Gain | 33 dBi |
| RX Gain | 38 dBi |
| Beamwidth | <3.5° |
| Front-to-Back Ratio | 70 dB |
| Polarity | Dual-Slant Polarization |
| Cross-Polarity Isolation | >28dB |
