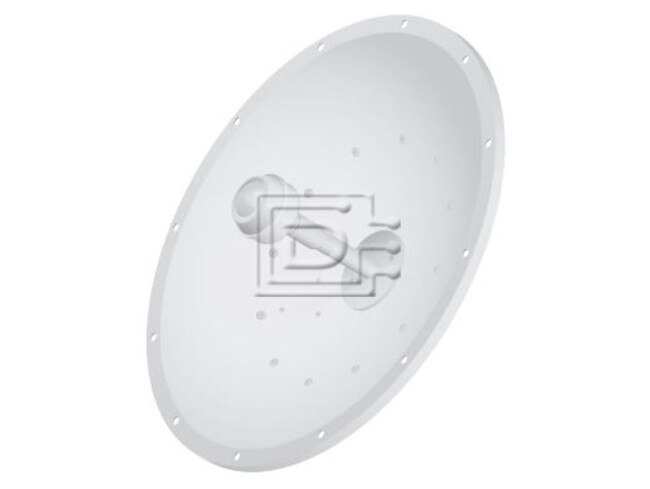

Ubiquiti Networks RD-2G24 RocketDish 2.4GHz PtP Bridge Dish Antenna - Brand New
Ubiquiti Networks RD-2G24 RocketDish 2.4GHz Point-to-Point Bridge Dish Antenna - Brand New
Overview
Pair a RocketDish™ antenna with a Rocket™ basestation to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (Rocket sold separately).
Powerful Performance
The RocketDish antenna delivers 2x2, dual-polarity performance. On the right is one example of how the RocketDish with Rocket can be deployed in a backhaul link to deliver bandwidth from an ISP network out to a neighborhood tower. From there, an airMAX® Sector with Rocket delivers bandwidth to the ISP’s customers.
Carrier-Class Construction
Incorporating a dish reflector design for excellent beam directivity, the RocketDish antennas feature robust mechanical design using industrial-strength hardware for outdoor application use.
Plug and Play Integration
RocketDish antennas and Rocket basestations have been designed to seamlessly work together. Every RocketDish has a built-in Rocket mount, so installation requires no special tools.
Snap the Rocket securely into place and mount the antenna; you then have the optimal combination of RocketDish and Rocket for your PtP application.
Innovative Mechanical Design
- Secure pole-mounting The hardware is designed to securely mount and maintain the position of the dish during harsh outdoor conditions.
- Convenient installation The bubble level allows for easy alignment.
Weatherproof Design
- Protective shroud The shroud* protects the cables and connectors from nature’s elements.
2.4 GHz Model
The 2.4 GHz frequency band is free to use, worldwide; however, it is extremely crowded due to interference from other wireless devices. Also, there are only three non-overlapping, 20 MHz channels available for use.
SYSTEM INFORMATION | |
---|---|
Model Number | RD-2G24 |
Frequency | 2 GHz |
Gain | 24 dBi |
Radome | RAD-2RD |
Dimensions | 650 x 650 x 295 mm (25.6 x 25.6 x 11.61 inch) |
Weight | 9.8 kg (21.61 lb) |
Frequency Range | 2.3 - 2.7 GHz |
Gain | 24 dBi |
HPOL Beamwidth | 3.8" (RX Dish) 6.6" (TX Dish) |
VPOL Beamwidth | 3.8" (RX Dish) 6.6" (TX Dish) |
F/B Ratio | 50 dB (RX Dish) 65 dB (TX Dish) |
Max. VSWR | 1.6:1 |
Wind Loading | 787 N @ 200 km/h (177 Ibf @ 125 mph) |
Wind Survivability | 200 km/h (125 mph) |
Polarization | Dual-Linear |
Cross-pol Isolation | 35 dB Min |
ETSI Specification | EN 302 326 DN2 |
Mounting | Universal Pole Mount Rocket Bracket Weatherproof RF Connectors (included) |
Click here to view the manufacturer's item description/brochure
