Ubiquiti Networks Part #/MPN: UAP-AC
DiscTech Item #: UBI-UAP-AC-BN-1Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Interface Types: Ethernet RJ45
Electrical Interface: Ethernet Gigabit - 1Gbps
Bays/Ports/Slots: 2
Wattage/VA: 22W
Voltage: 48V
Ubiquiti Networks UAP-AC 802.11 a/b/g/n/ac Enterprise AES UniFi AP WiFi System - Brand New
Ubiquiti Networks UAP-AC 802.11 a/b/g/n/ac Enterprise Advanced Encryption Standard UniFi AP WiFi System - Brand New

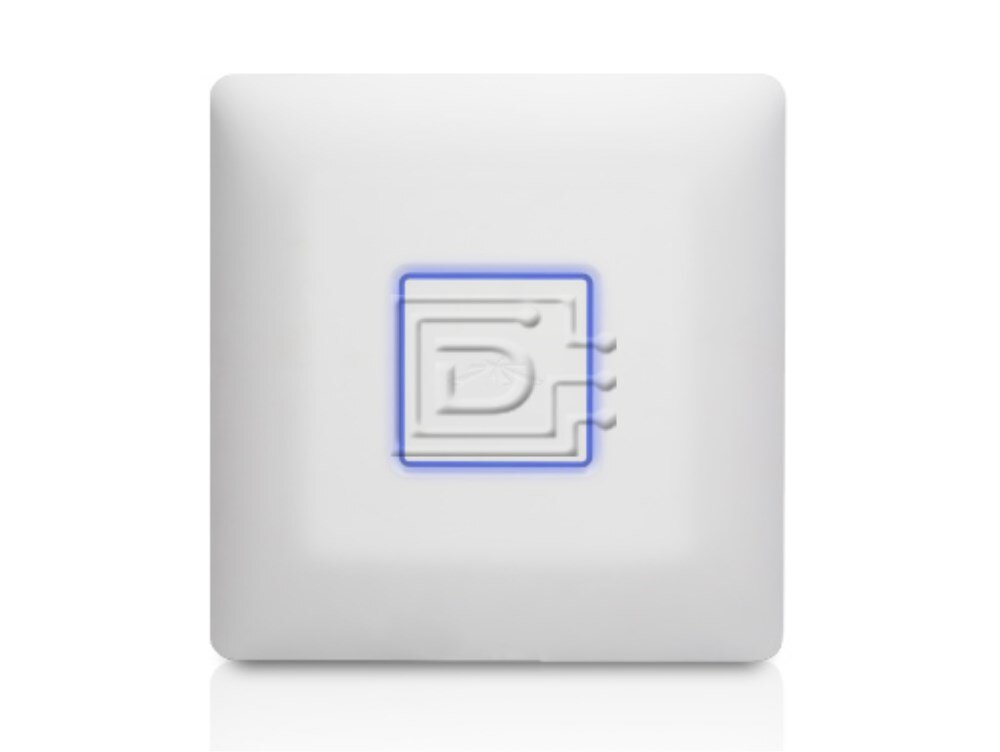

UniFi AP-AC (UAP-AC)
The fastest, indoor model supports 802.11ac and speeds of up to 1300 Mbps in the 5 GHz radio band and up to 450 Mbps in the 2.4 GHz radio band. The UAP-AC offers simultaneous dual-band operation with 3x3 MIMO technology for each band. It has a range of up to 122 m (400 ft) and two Gigabit Ethernet ports.
Compatibility:
The UniFi AP‑AC is compatible with an 802.3at compliant switch.
| Specifications | |
|---|---|
| Memory Name | UAP-AC |
| 2.4 GHz Speed | 450 Mbps |
| 5 GHz Speed | 1300 MBps |
| Range | 122 m (400 ft) |
| Secondary Ethernet Port | Yes |
| Gigabit Ethernet | Yes |
| Wi-Fi Standards | 802.11 a/b/g/n/ac |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Simultaneous Dual-Band | Yes |
| Ubiquiti POE | Yes |
| 802.3 af or 802.3 at Compliant | 802.3at (PoE+) |
| Security Lock | Yes |
| UniFi AP-AC | |
| Dimensions | 200 x 204 x 27 mm (7.87 x 8.03 x 1.06 in) |
| Weight | 508 g (1.12 oz) without Mounting Kits 566 g (1.25 oz) with Mounting Kits |

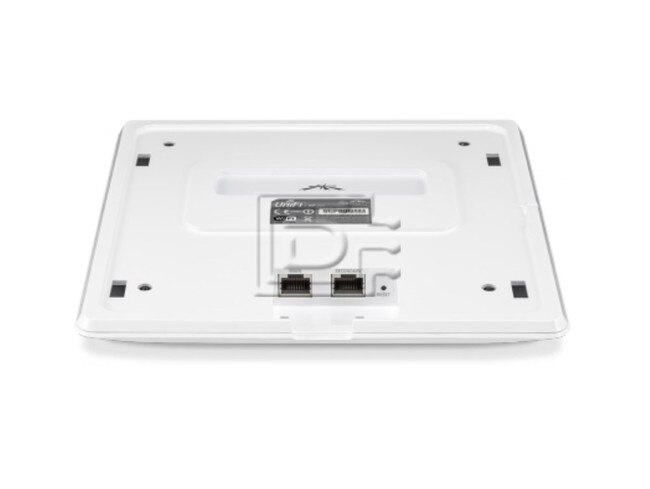

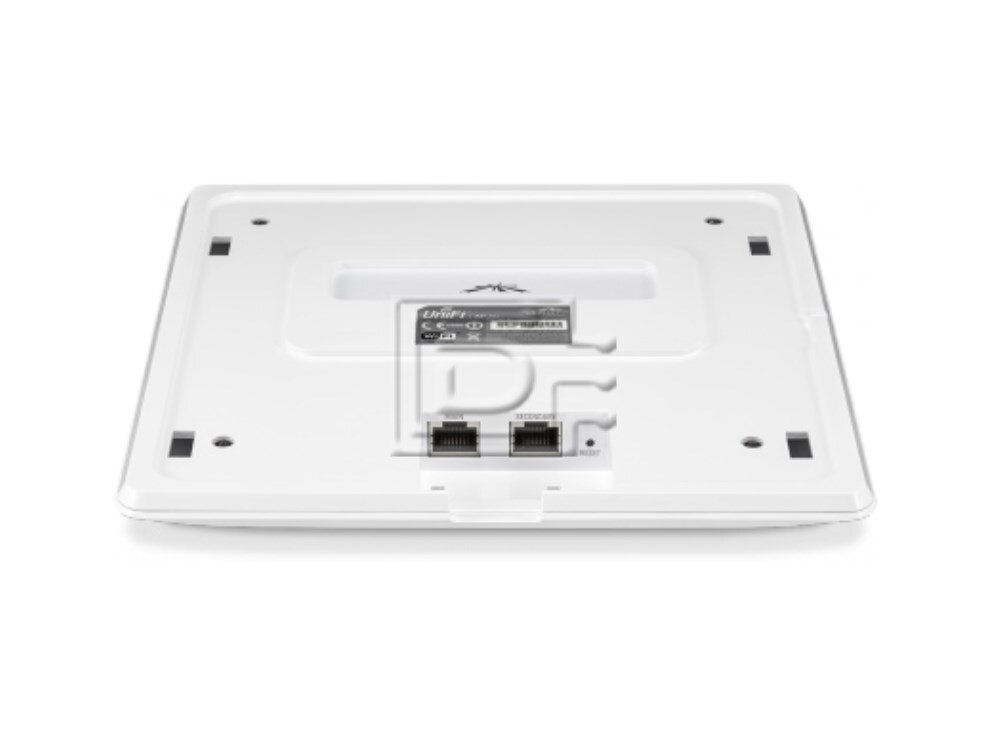

| Networking Interface | (2) 10/100/1000 Ethernet Ports |
| Buttons | Reset |
| Antennas 2.4GHz 5GHz | Integrated 5 dBi Omni (Supports 3 x 3 MIMO with Spatial Diversity) Integrated 5 dBi Omni (Supports 3 x 3 MIMO with Spatial Diversity) |
| Wi-Fi Standards | 802.11 a/b/g/n/ac |
| Power Method | Passive Power over Ethernet (48V) 802.3at Supported (Supported Voltage Range: 39 to 57VDC) |
| Power Supply | 48V, 0.5A PoE Gigabit Adapter Included |
| Maximum Power Consumption | 22 W |
| Maximum TX Power 2.4 GHz 5 GHz | 28 dBm 28 dBm |
| BSSID | Up to Four Per Radio |
| Power Save | Supported |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| Certifications | CE, FCC, IC |
| Mounting | Wall/Cealing (Kits Included) |
| Operating Temperature | -10 to 55° C (14 to 131° F) |
| Operating Humidity | 5 - 80% Non-Condensing |
| Advanced Traffic Management | |
| VLAN | 802.1Q |
| Advanced Qos | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 200+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40 |
| 802.11ac | 6.5 Mbps to 1300 Mbps (MCS0 - MCS9, NSS1/2/3, VHT 20/40/80) |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
