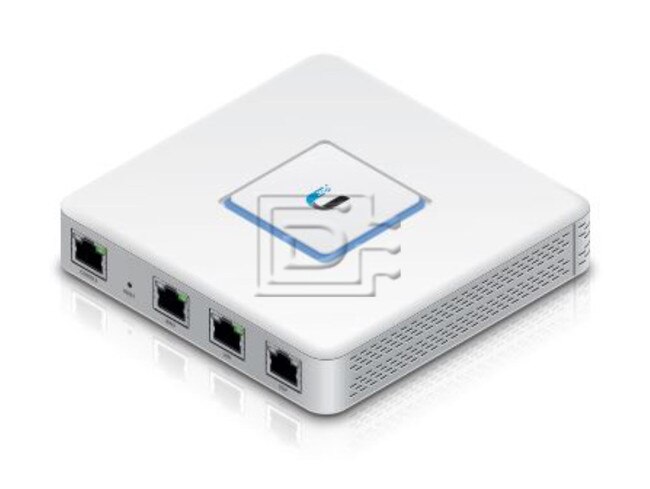

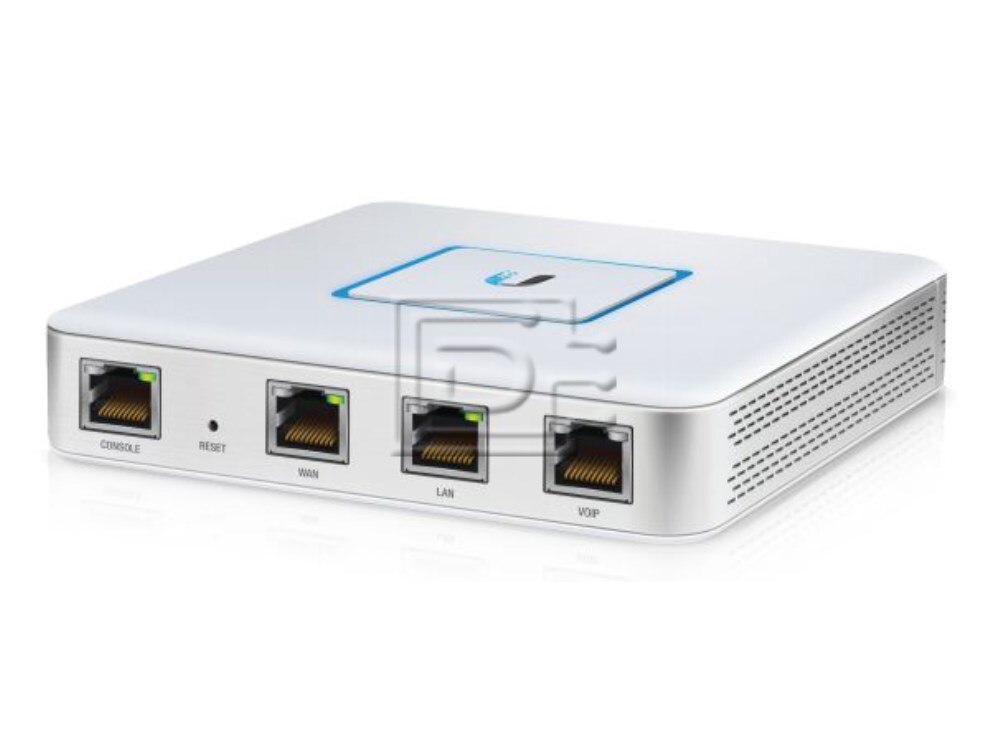

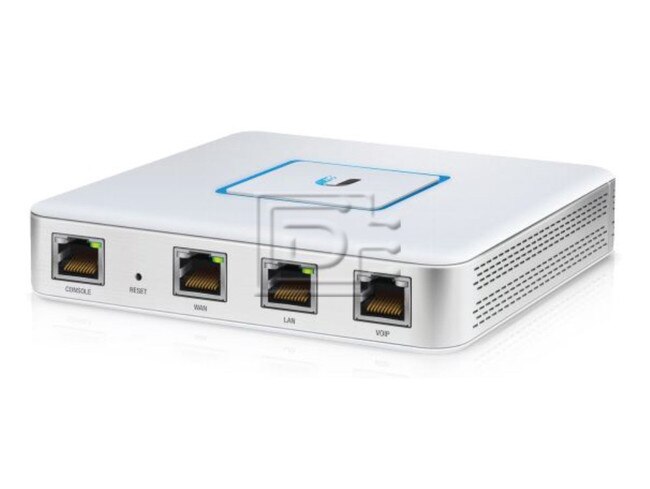

Ubiquiti Networks USG Ethernet UniFi Security Gateway

Ubiquiti Networks Part #/MPN: USG

DiscTech Item #: UBI-USG-RF-OE


$419.00
  • Special Order - Call for Lead Time
    Special Order - Call for Lead Time

    This item has a variable lead time for fulfilment. Please call us to discuss. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.

$419.00

Enterprise Grade

Interface Types: Ethernet RJ45

Electrical Interface: Ethernet Gigabit - 1Gbps

On-Board Cache: 512MB

Bays/Ports/Slots: 3

Wattage/VA: 7W

Voltage: 12V

Ubiquiti Networks USG Ethernet UniFi Security Gateway - Refurbished

Ubiquiti Networks USG Enterprise UniFi Security Gateway Router. Includes 2GB On-Board Flash Storage, 512MB RAM, Dual Core, 1 RJ45 Serial Port and 3 Ethernet Ports.

UniFi SECURITY GATEWAY

Affordable Enterprise Network Security
Ubiquiti Networks introduces the UniFi® Security Gateway, which extends the UniFi Enterprise System to encompass routing and security for your network.

The UniFi Security Gateway combines advanced security features with high performance routing technology in a compact and cost-effective unit.

Capable of routing up to 1 million packets per second, the UniFi Security Gateway can be easily configured through the intuitive UniFi Controller software, which also manages the UniFi Access Points for wireless networking.

Additional features include:



  • 3 Gigabit Ethernet ports
  • 1 million packets per second for 64-byte packets
  • 3 Gbps total line rate for packets 512 bytes or larger
  • Integrated and managed with UniFi Controller v4.x
  • Secure off-site management and monitoring
  • CLI management for advanced users
  • Silent, fanless operation



Deployment
As part of the UniFi Enterprise System, the UniFi Security Gateway is deployed in the same manner as UniFi APs. Detection, provisioning, and management are all conducted from the UniFi Controller.

The UniFi Controller may reside on a management station located either on site and connected to the same Layer-2 network, or off-site in a cloud or NOC.

UniFi Controller v4
Introducing the new UniFi Controller software featuring a refreshed UI and support for the next generation of UniFi devices.

Improved User Experience
Redesigned to be more intuitive and easier to navigate, the new UI raises the bar for enterprise network management efficiency. Important network details are logically organized for a simplified, yet powerful, interface.

Packed with Features
Use the UniFi Controller to provision thousands of UniFi APs and UniFi Security Gateways, map out networks, quickly manage system traffic, and provision additional UniFi devices.

Network Overview
A comprehensive overview of your Network Health is readily available in the new dashboard. Monitor your network’s vitals and make on the fly adjustments as needed.

Detailed Analytics
Use the configurable reporting and analytics to monitor large user groups and expedite troubleshooting.

Multi-Site Management
A single UniFi Controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator read/write and read-only accounts.

LAN/WLAN Groups
The UniFi Controller can manage flexible configurations of large deployments. Create multiple LAN and WLAN groups and assign them to the respective UniFi devices.

SPECIFICATIONS
Model NameUSG
Dimensions135 x 135 x28.3 mm
(5.32 x 5.32 x 1.11 in)
Weight366 g
(12.9 oz)
ProcessorDual Core 500 MHz, MIPS64
On-Board Flash Storage512 MB DDR2 RAM
Max. Power Consumption2GB
Power Supply7W
Power Input9 to 24VDC, Supported Voltage Range
CertificationsCE, FCC, IC
Wall-MountableYes
Operating Temperature-10 to 45°C
(14 to 113°F)
Operating Humidity10 to 90% Noncondensing
LAYER 3 FORWARDING PERFORMANCE
Packet Size: 64 Bytes1,000,000 pps
Packet Size: 512 Bytes or Larger3 Gbps (Line Rate)
NETWORKING INTERFACES
Serial Console Port(1) RJ45 Serial Petgort
Data Ports(3) 10/100/1000 Ethernet Ports

Click here to view the manufacturer's item description/brochure

Weight: 1 lb

Warranty: 1 Year DiscTech

Refurbished

Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
