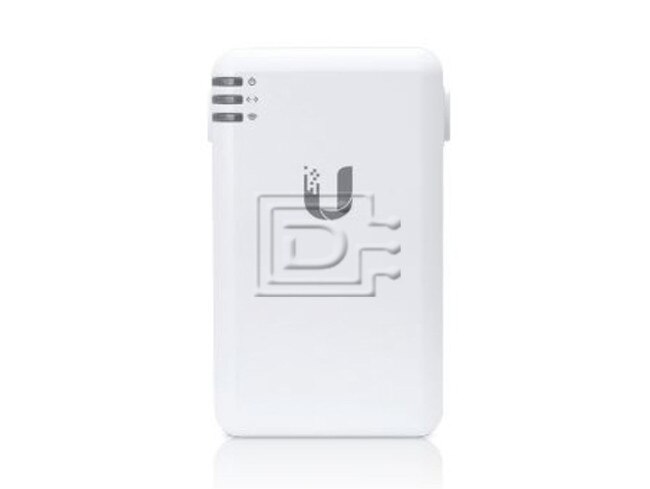

Ubiquiti Networks mPort IP Gateway Device

Ubiquiti Networks Part #/MPN: MPORT

DiscTech Item #: UBI-MPORT-BN-1Y


$99.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$99.00

Interface Types: Ethernet RJ45, Serial RS-232 DB9

On-Board Cache: 16MB

Bays/Ports/Slots: 3

Wattage/VA: 3W

Voltage: 24V

Ubiquiti Networks mPort IP Gateway Device - Brand New

Ubiquiti Networks mPort IP Gateway Device - Brand New

mFi® is a Machine-to-Machine management system from Ubiquiti Networks® . mFi hardware is managed and monitored from the mFi Controller software. The mFi Controller allows you to create rules that trigger actions based on data from your mFi sensors. For example, motion detection can turn a light on, or a high temperature reading can trigger a fan. The mFi platform is compatible with third-party devices, making the options unlimited!

Features

Plug and Play Installation
Use standard Ethernet cable to connect machines and sensors. Use Wi-Fi to seamlessly connect mFi nodes to your IP network. Unlimited device scalability allows you to add mFi devices as needed.

Powerful Functionality
Create powerful relationships between sensors, machines, and powered devices.

Mobile Support
The mFi iOS application is available for iPhone and iPad. Other mobile devices can connect to a customized mobile version of the mFi Controller interface using a web browser.

Sophisticated User Experience
From auto-detection of machines through intuitive and powerful rule creation, the mFi Controller transforms a machine network into an automated symphony.

Hardware

mPorts and Sensors

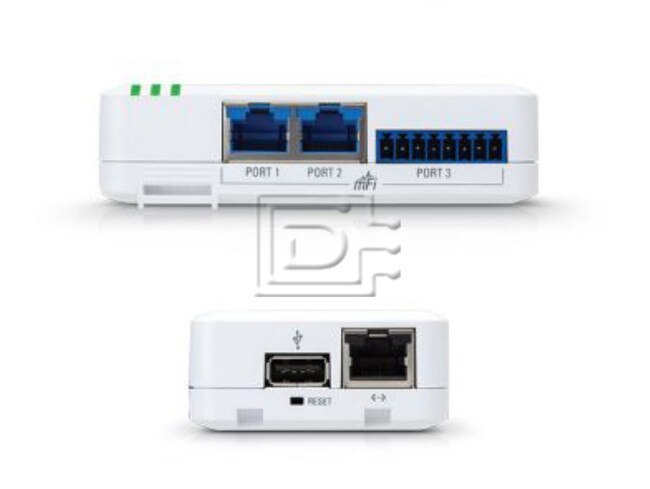

There are two mPort™ models available for connecting devices to the mFi network. The mPort has two mFi RJ45 connectors and a terminal block connector. The mPort Serial features RS232/422/485 serial connectivity through a standard DB9 serial port or a terminal block connector. Both have built-in Wi-Fi and Ethernet to connect to the IP network. Ubiquiti offers a variety of motion, temperature, current, and door sensors to connect to the mPort and your mFi network. These sensors connect to the mPort using a standard RJ45 cable, except for the mFi-DS, which connects using a terminal block connector.

Software

The mFi Controller software is designed to work with the Ubiquiti Networks mFi product line and third-party devices. The software interface design is based on the popular and easy-to-use UniFi® software interface. The mFi Controller software allows you to manage your mPort, mPower, sensor, in-wall, and third-party devices from your web browser.

Features

Machine Auto Detection
The mFi Controller software will auto-detect and provision mFi devices and connected machines on the machine network.

Advanced Analytics
Powerful graphing with user-defined views provides in-depth analysis of the machine network.

Events and Alerts
User-defined event recording and alerts provide feedback on machine network activity.

Remote Control Capability
Remotely control the power and functionality of the machine network.

Remote Terminal Support
Terminal command windows support unlimited machine network scalability through a single interface.

System Requirements

  • Microsoft Windows 7/8, Windows Vista, Mac OS X, or Ubuntu Linux 12.04 or later 64-Bit Operating System
  • Web Browser: Mozilla Firefox, Google Chrome, or Microsoft Internet Explorer 8 (or higher)
  • Java Runtime Environment 1.6 (1.6.0_26 or higher recommended)
  • Flash Player 10
  • Minimum 2 GB RAM is highly recommended

MODEL OVERVIEW
Memory NameMPORT
Dimensions (without Bracket)
(with Bracket)
100 x 60 x 27.5 mm (3.94 x 2.36 x 1.08 in)
100 x 60 x 36.5 mm (3.94 x 2.36 x 1.44 in)
Weight (with Bracket)119 g (4.2 oz)
Power Supply24V, 0.5A Surge Protection
Integrated PoE Adapter (Included)
Max. Power Consumption3W
Network Interface(1) 10/100 Ethernet Port
Ports(2) mFi RJ45 Ports
(1) mFi Terminal Block Port
AntennaInternal
Output Power18 dBm
WiFi Standards802.11 b/g/n
Memory16 MB RAM, 8 MB Flash
LEDs3 LEDs (Power, Ethernet, Status)
MountingWall-Mounting Bracket (Included)
Operating Temperature-10 to 70° C
(14 to 158°F)
Operating Humidity5 to 80% Non-condensing

Click here to view the manufacturer's item description/brochure

Weight: 0.5 lb

Warranty: 1 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

1 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
