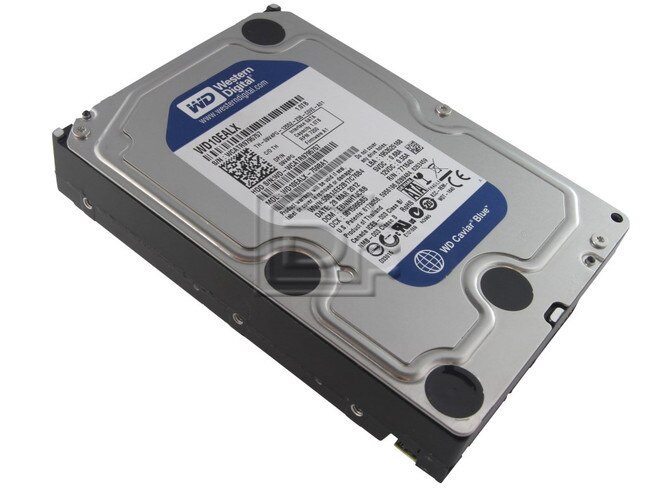

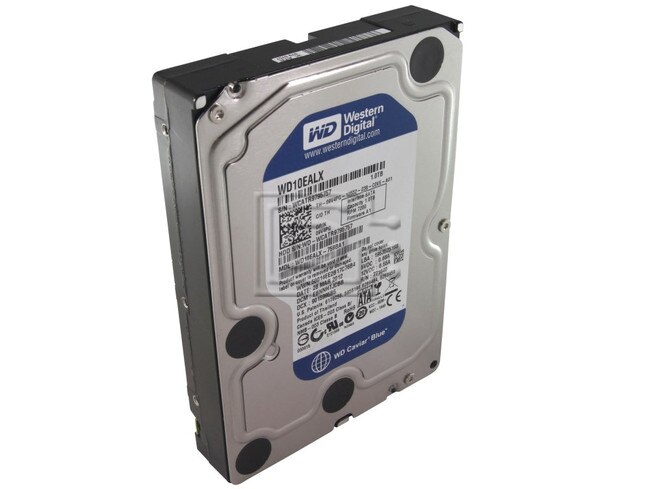

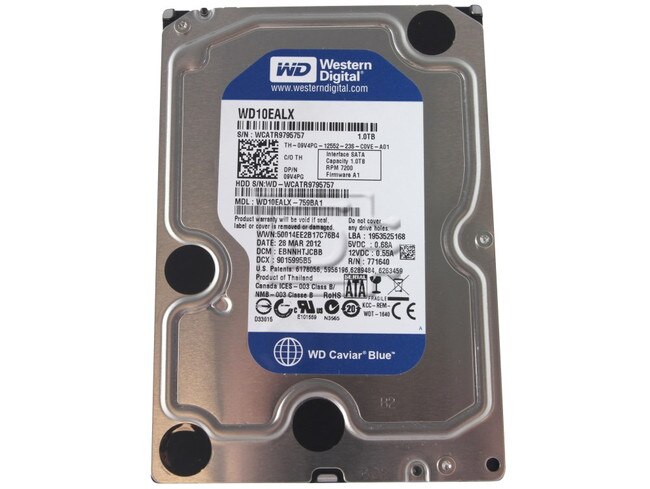

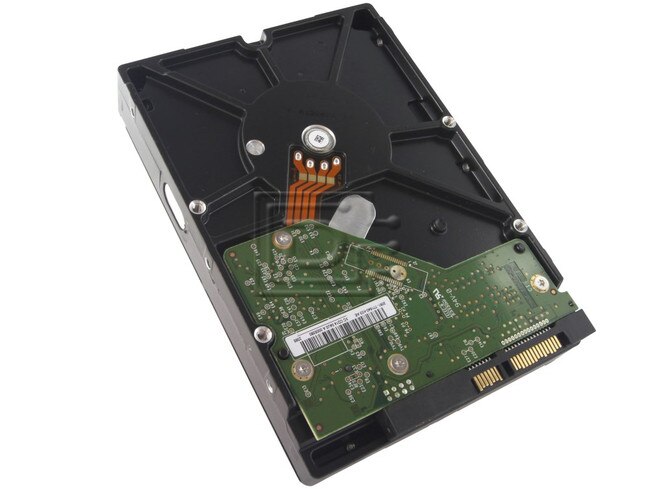

Western Digital Caviar Blue WD10EALX SATA Hard Drive

Western Digital Part #/MPN: WD10EALX

DiscTech Item #: WDC-WD10EALX-RF-OE


$105.00
$105.00

Capacity: 1TB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 126

Electrical Interface: SATA 600 - 6.0Gbps

On-Board Cache: 32MB

Western Digital Caviar Blue WD10EALX 1000GB / 1TB 7.2K SATA 6.0Gb/s 3.5" Hard Drive - Refurbished

The original

These drives are built utilizing the proven technology of the original award-winning WD Caviar 3.5-inch hard drives for desktop computers.

Value

Built to the highest standards of quality and reliability, these drives offer features and capacity at an affordable price.

Cool operation

WD continues to develop new and innovative ways to keep drives cool while they are operating which helps protect the drive and the data stored on it.

Compatible

We perform tests on hundreds of systems and a multitude of platforms in our FIT Lab™ to give our customers confidence that our drives will work in their systems.

NoTouch™ ramp load technology

The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.

IntelliSeek™

Calculates optimum seek speeds to lower power consumption, noise and vibration.


Compatibility:

This drive is compatible with any computer/server that accepts 3.5" SATA hard drives.

Performance Specifications
Rotational Speed7,200 RPM (nominal)
Buffer Size32 MB
Load/unload Cycles300,000 minimum

Transfer Rates
Transfer Rate (Buffer To Disk)126 MB/s (Max)

Physical Specifications
Formatted Capacity1,000,204 MB
Capacity1 TB
InterfaceSATA 6 Gb/s
User Sectors Per Drive1,953,525,169

Physical Dimensions
English
Height1.028 Inches
Depth5.787 Inches
Width4.00 Inches
Weight1.52 Pounds

Metric
Height26.1 mm
Depth147 mm
Width101.6 mm
Weight0.69 kg

Environmental Specifications
Shock
Operating Shock (Read)30G, 2 ms
Non-operating Shock300G, 2 ms

Acoustics
Idle Mode28 dBA (average)
Seek Mode 033 dBA (average)

Temperature (English)
Operating32° F to 140° F
Non-operating-40° F to 158° F

Temperature (Metric)
Operating-0° C to 60° C
Non-operating-40° C to 70° C

Electrical Specifications
Current Requirements
Power Dissipation
Read/Write6.80 Watts
Idle6.10 Watts
Standby0.70 Watts
Sleep0.70 Watts

Click here to view the manufacturer's item description/brochure

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Refurbished

Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
